Bartec BCS 3608ex-NI Quick Start Manual

Handheld barcode scanner, bcs 3600ex series
Hide thumbs Also See for BCS 3608ex-NI:

Advertisement

Quick Links

Download this manual See also: User Manual
ex
Handheld scanner series BCS 3600
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the BCS 3608ex-NI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartec BCS 3608ex-NI

Summary of Contents for Bartec BCS 3608ex-NI

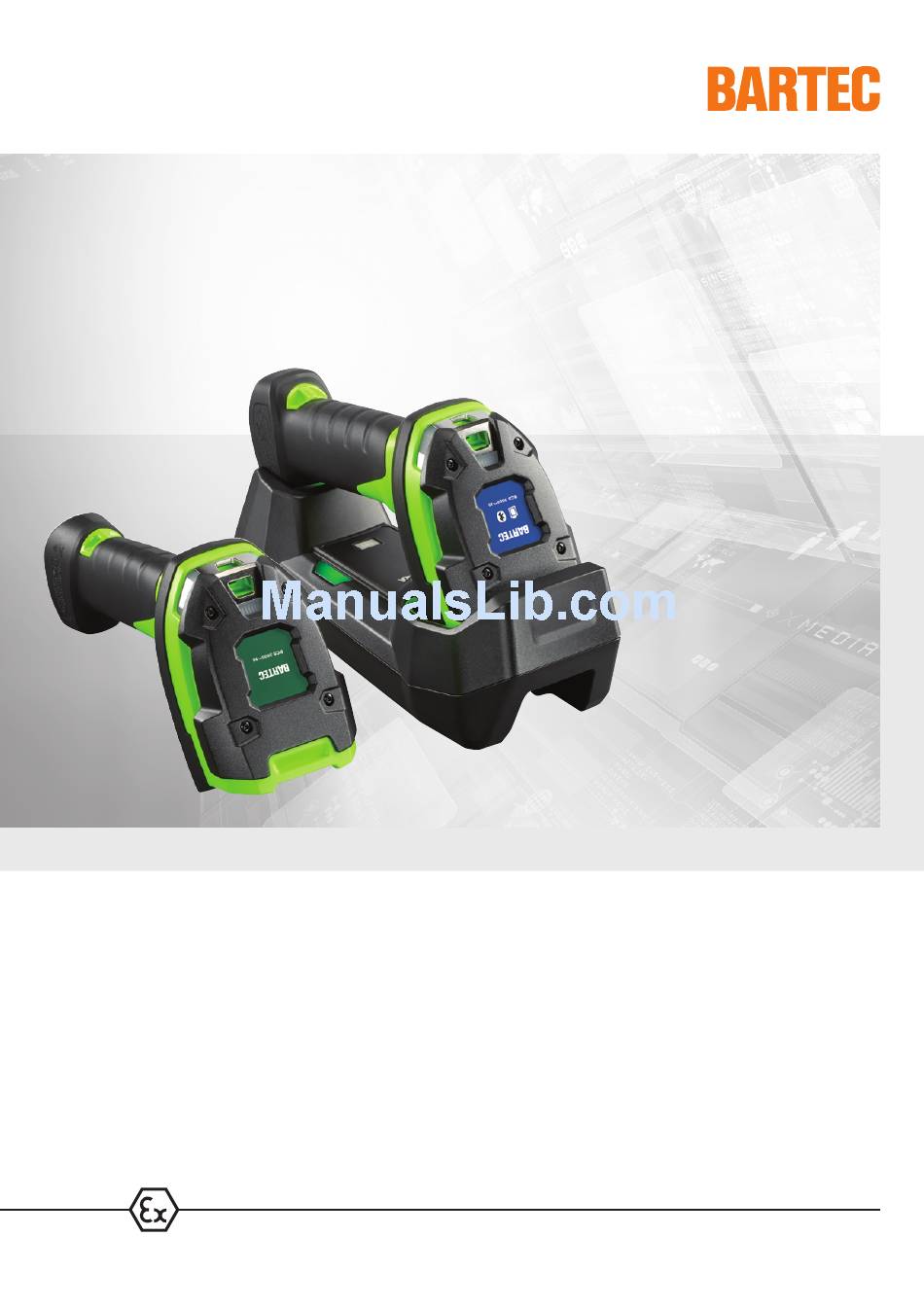

  • Page 1 Handheld scanner series BCS 3600 Quick Start Guide...
  • Page 2 ATEX / IECEx Zone 2 and Zone 22 Class I, II, III DIV 1 Class I, II, III DIV 2 Document No.: 11-A1S4-7E0001 Status: 16.05.2018 BARTEC GmbH Support: service-mobilecomputing@bartec.de Max-Eyth-Straße 16 Phone: +49 7931 597-0 Download: http://automation.bartec.de 97980 Bad Mergentheim...
  • Page 4 Hand-held scanners 1 Information about this BCS 3600 series Quick Start Guide Information about this Quick Start Guide Read carefully before commissioning the device. Follow the corresponding User Manual. The Quick Start Guide is an integral part of the device. It applies solely in conjunction with the corresponding User Manual.
  • Page 5 1 Information about this Hand-held scanners Quick Start Guide BCS 3600 series 1.1.2 Symbols and means of presentation Symbol Explanation Important advice and information for the effective, efficient and environmentally sound use of the product. Condition that must be met before the subsequent actions can be performed. Individual steps you must take.
  • Page 6 BARTEC (global): www.bartec.de ‒ BARTEC (ACS): http://automation.bartec.de ‒ ZEBRA (ZEB): www.zebra.com ‒ In the event of overlaps with Zebra user manuals, the instructions in the BARTEC User Manual apply. The BARTEC User Manual takes priority. Document Explanation Version BARTEC User Manual...

  • Page 7: Intended Use

    BCS 3678ex-NI ATEX / IECEx Zone 2 and Zone 22 (Type B7-A2S4-XXXX) Class I, II, III DIV 2 BCS 3608ex-NI (Type B7-A2S4-XXXX) The hand-held scanners may only be used together with operating equipment that corresponds to Installation Category I. You must comply with the permissible ambient conditions for the device used (see User Manual).
  • Page 8 Read the instructions in this Quick Start Guide thoroughly and follow them when using the device.  In the event of overlaps with user manuals from Zebra, the instructions in the BARTEC User Manual apply. The BARTEC User Manual takes priority.
  • Page 9 If the hand-held scanner has fallen from a greater height or you suspect a damaged enclosure:  Remove the hand-held scanner from the potentially explosive atmosphere immediately. – Send the hand-held scanner to BARTEC. – Subject to technical modifications 8 / 28...
  • Page 10 Do not touch the broken area. – Do not use the hand-held scanner. – Send the faulty hand-held scanner to BARTEC. – 2.4.4 Health hazard in the case of incorrect disposal Lithium ion batteries on the Bluetooth hand-held scanner contain pollutants that can be harmful to health.
  • Page 11 Hand-held scanners 2 Safety BCS 3600 series Preventing damage to property 2.5.1 Short circuit caused by incorrect connection Incorrect electrical connection can cause a short circuit, thereby damaging the hand-held scanner. Always have the hand-held scanner connected by a qualified electrician in accordance with the connection ...
  • Page 12 Class II Div 1 Groups E, F Class III Class I Div 1 Class I Div 1 Groups A, B, C and D T4 Further approvals and certificates can be found at www.bartec.de Subject to technical modifications 11 / 28 16/05/2018...
  • Page 13 Class II Div 2 Groups E, F Class III Class I Div 2 Class I Div 2 Groups A, B, C and D T4 Further approvals and certificates can be found at www.bartec.de Subject to technical modifications 12 / 28 16/05/2018...
  • Page 14 OCR text recognition. The BCS 3678ex-NI and BCS 3678ex-IS hand-held scanners with Bluetooth supplement the series with wireless data capture. The hand-held scanners in the BCS 3608ex-NI- and BCS 3608ex- IS series have been modified for use in potentially explosive atmospheres (see Chapter 2.1, P. 6).
  • Page 15 Hand-held scanners 4 Product description BCS 3600 series 4.1.3 BCS 3678 -NI / BCS 3678 -IS Bluetooth hand-held scanners with cradle and Bluetooth-enabled device * Optional communication options 4.1.4 BCS 3678 -NI / BCS 3678 -IS Bluetooth hand-held scanners via universal supply module Subject to technical modifications 14 / 28 16/05/2018...
  • Page 16 Hand-held scanners 4 Product description BCS 3600 series Construction of hand-held scanners (wired and Bluetooth) Pos. Description Function Scan window Scanning barcodes Charging the battery • Contact for cradle Transferring data to cradle • Trigger button Starting the scan process Securing the connection cable to prevent it •...
  • Page 17 Hand-held scanners 4 Product description BCS 3600 series 4.2.1 Meaning of LED display / beeps Hand-held scanner LED display Colour Beep sequence Meaning Status LEDs (on Green flashes Low – medium – high Hand-held scanner is switched on switching on) Status LEDs (when High (4 short beeps) Transmission error...
  • Page 18 Hand-held scanners 5 Connection / BCS 3600 series commissioning Connection / commissioning DANGER Spark formation when connecting a cable! Explosion. Always have cable connected by a qualified electrician.  Configuration A detailed description of the system configuration is provided in the User Manual for the BCS 3600 series.
  • Page 19 6.1.1 Changing the battery DANGER Mixing up the batteries! Loss of function and risk of explosion. Only use batteries that have been certified by BARTEC.  Only the following batteries are approved: Zone / Div Battery type Zone 1 / Div 1...
  • Page 20 Hand-held scanners 6 Operation BCS 3600 series Slide the battery into the battery compartment, ensuring the following: Battery contacts point towards the battery compartment. – Rounded side of the battery points towards the back of the hand-held scanner. – Close the battery compartment cover. DANGER Spark formation caused by the battery falling out! Explosion.
  • Page 21 Non-approved cradle! Loss of function and risk of explosion. Only use the cradle that has been specified for the relevant configuration by BARTEC.  The approved accessory is shown in the system overview (see system overview, Chapter 7.1, P. 27). The model is clearly indicated on the type label.
  • Page 22 Hand-held scanners 6 Operation BCS 3600 series Press the underneath of the hand-held scanner into the cradle until you hear the hand-held scanner click into place. Subject to technical modifications 21 / 28 16/05/2018...
  • Page 23 Hand-held scanners 6 Operation BCS 3600 series 6.1.3 Connecting the hand-held scanner to the cradle (optional) The Bluetooth hand-held scanner sends data to the cradle. The cradle sends these data to a host PC. To exchange data / receive data, the cradle must be connected to the hand-held scanner. To connect the hand-held scanner to the cradle, place the hand-held scanner in the cradle.
  • Page 24 Hand-held scanners 6 Operation BCS 3600 series Inspection to be conducted prior to use DANGER Spark formation caused by the connection cable or the battery falling out! Explosion. Ensure that the safety lock has been correctly closed prior to use in the potentially explosive atmosphere. ...
  • Page 25 Hand-held scanners 6 Operation BCS 3600 series Final inspection of BCS 3678 -NI / BCS 3678 -IS (Bluetooth) Check points Scan window free from damage, e.g. scratches Enclosure free from damage, e.g. crack or break Temperature in the area in which the hand-held scanner is used corresponds to the specified temperature range If cables are present: cables are not damaged If cables are present: cables have been certified Battery has been certified...
  • Page 26 Hand-held scanners 6 Operation BCS 3600 series Scanning During scanning, the hand-held scanners in the BCS 3600 series emit a scanner beam. To scan a barcode, direct the scanner beam onto the barcode so that it captures the whole width of the barcode.
  • Page 27 Hand-held scanners 6 Operation BCS 3600 series Optimal scan position Right: The hand-held scanner can also read barcodes when the scanner beam is not directly centred on the barcode. Wrong: The hand-held scanner cannot decode/scan a barcode if the scanner beam does not capture the whole width of the barcode.
  • Page 28 Hand-held scanners 7 Annex BCS 3600 series Annex Approved accessories The system overview in user manual shows the accessories specified for the different configurations. Subject to technical modifications 27 / 28 16/05/2018...
  • Page 29 Hand-held scanners 7 Annex BCS 3600 series Notice Subject to technical modifications 28 / 28 16/05/2018...
  • Page 30 Your partner for safety technology. Challenge us! BARTEC GmbH Max-Eyth-Str. 16 Phone: +49 7931 597-0 97980 Bad Mergentheim info@bartec.de Germany www.bartec.de...

This manual is also suitable for:

Bcs 3608ex-isBcs 3678ex-niBcs 3678ex-is
