3.6.2. General Purpose Input Output Module MCB 101
MCB 101 is used for extension of the number of digital and analog inputs
and outputs of the VLT AQUA Drive.

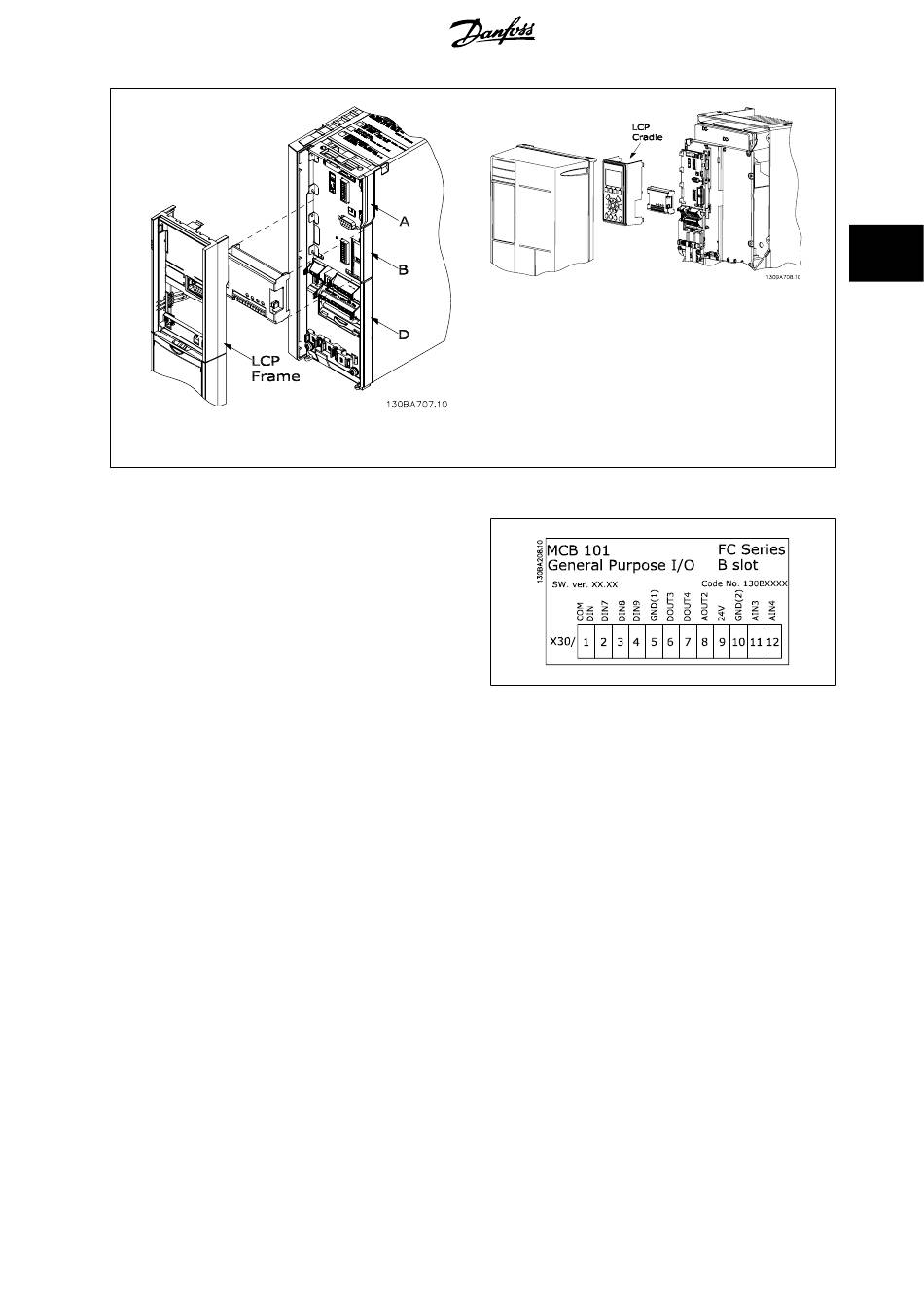

Contents: MCB 101 must be fitted into slot B in the VLT AQUA
Drive.
MCB 101 option module
Extended LCP frame
Terminal cover
Galvanic Isolation in the MCB 101
Digital/analog inputs are galvanically isolated from other inputs/outputs on the MCB 101 and in the control card of the drive. Digital/analog outputs in
the MCB 101 are galvanically isolated from other inputs/outputs on the MCB 101, but not from these on the control card of the drive.
If the digital inputs 7, 8 or 9 are to be switched by use of the internal 24 V power supply (terminal 9) the connection between terminal 1 and 5 which is
illustrated in the drawing has to be established.
®
MG.20.N4.02 - VLT
is a registered Danfoss trademark
3. VLT AQUA Selection
A5, B1, B2, B4, C1, C2, C3 and C4 enclosures
