2. Introduction to VLT AQUA Drive

2.8. VLT AQUA Controls

2.8.1. Control Principle
2
A frequency converter rectifies AC voltage from mains into DC voltage, after which this DC voltage is converted into a AC current with a variable amplitude
and frequency.
The motor is supplied with variable voltage / current and frequency, which enables infinitely variable speed control of three-phased, standard AC motors.
2.8.2. Control Structure

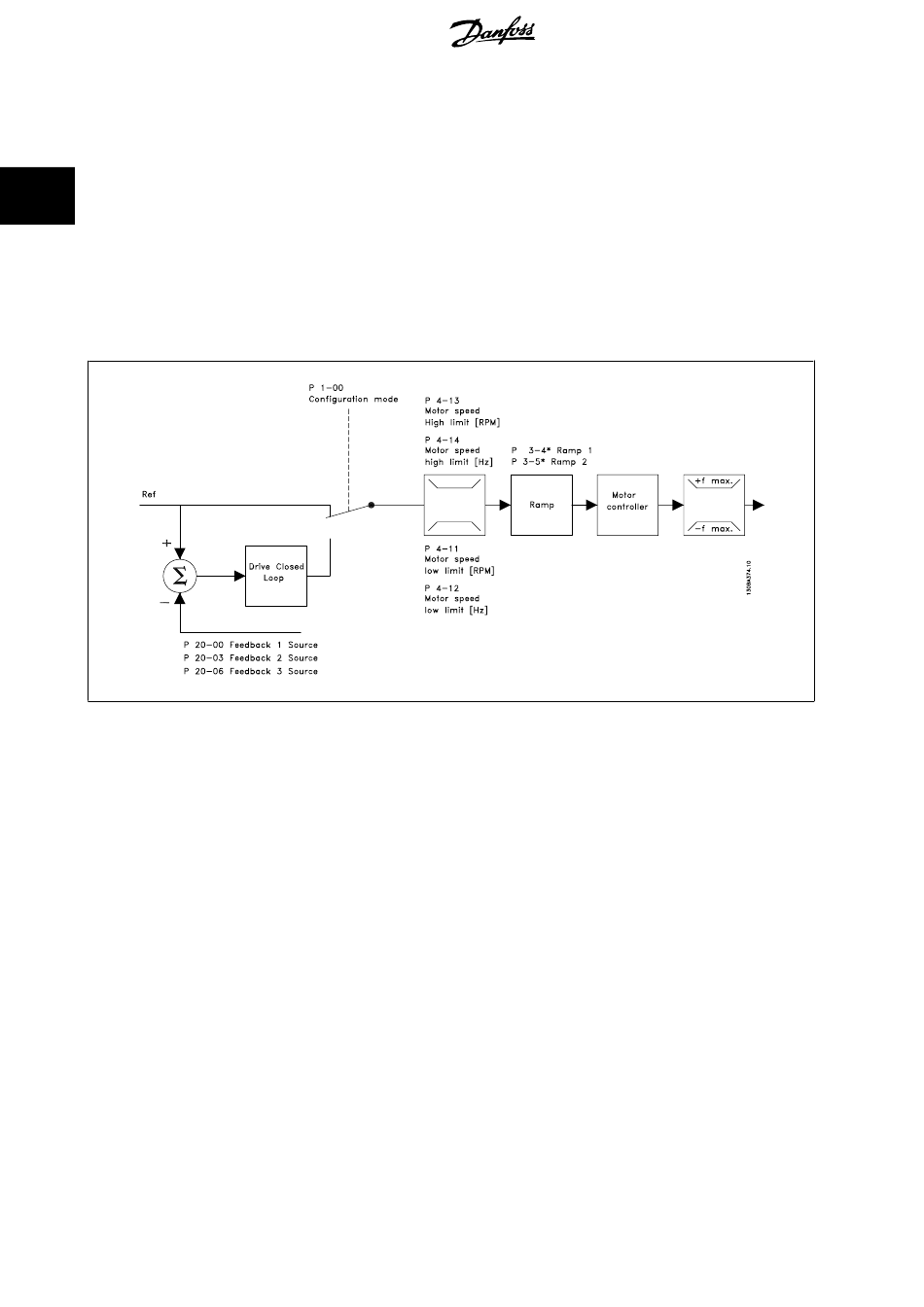

Control structure in open loop and closed loop configurations:
In the configuration shown in the illustration above, par. 1-00 is set to
received and fed through the ramp limitation and speed limitation before being sent to the motor control. The output of the motor control is then limited
by the maximum frequency limit.
Closed loop
Select
[3] in par. 1-00 to use the PID controller for closed loop control of e.g. flow, level or pressure in the controlled application. The PID
parameters are located in par. group 20-**.
2.8.3. Local (Hand On) and Remote (Auto On) Control
The frequency converter can be operated manually via the local control panel (LCP) or remotely via analog and digital inputs and serial bus.
If allowed in par. 0-40 [Hand
to start and stop the frequency converter via the using the [Hand ON] and [Off] keys. Alarms can be reset via the [RESET] key. After pressing the [Hand
On] key, the frequency converter goes into Hand Mode and follows (as default) the Local reference set by using the arrow keys.
20
on] Key on LCP
Key on LCP
, par. 0-41 [Off]
MG.20.N4.02 - VLT
Open loop
[0]. The resulting reference from the reference handling system is
on] Key on LCP
, par. 0-42 [Auto
, and par. 0-43 [Reset]
®
is a registered Danfoss trademark
®
VLT
AQUA Drive Design Guide
Key on LCP
, it is possible
