VLT
AQUA Drive Design Guide

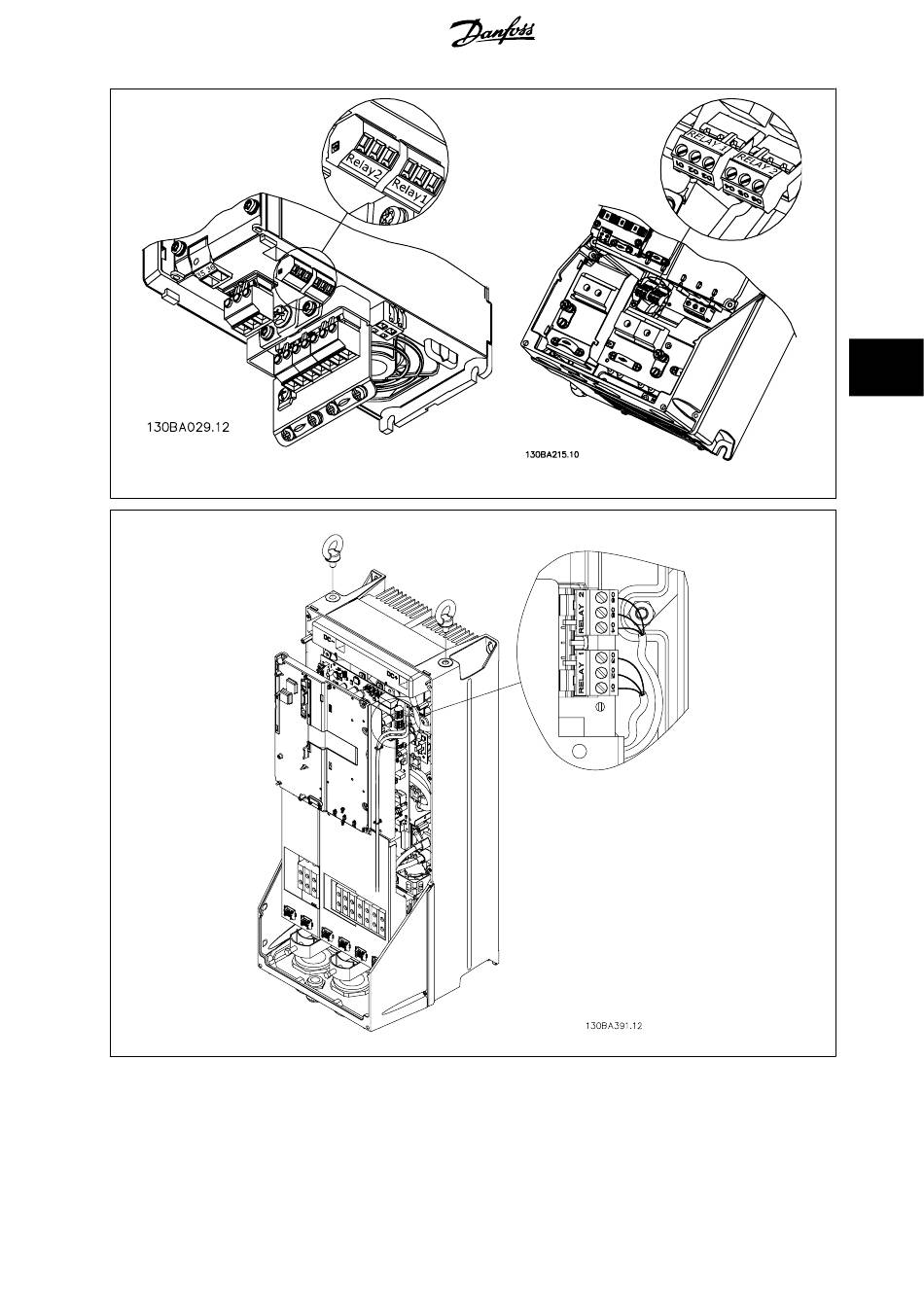

Terminals for relay connection
(A2 and A3 enclosures).
Illustration 5.21: Terminals for relay connection (C1 and C2 enclosures).
The relay connections are shown in the cut-out with relay plugs (from the Accessory Bag) fitted.
Terminals for relay connection
(A5, B1 and B2 enclosures).
®
MG.20.N4.02 - VLT
is a registered Danfoss trademark
5. How to Install
5
121
