5. How to Install

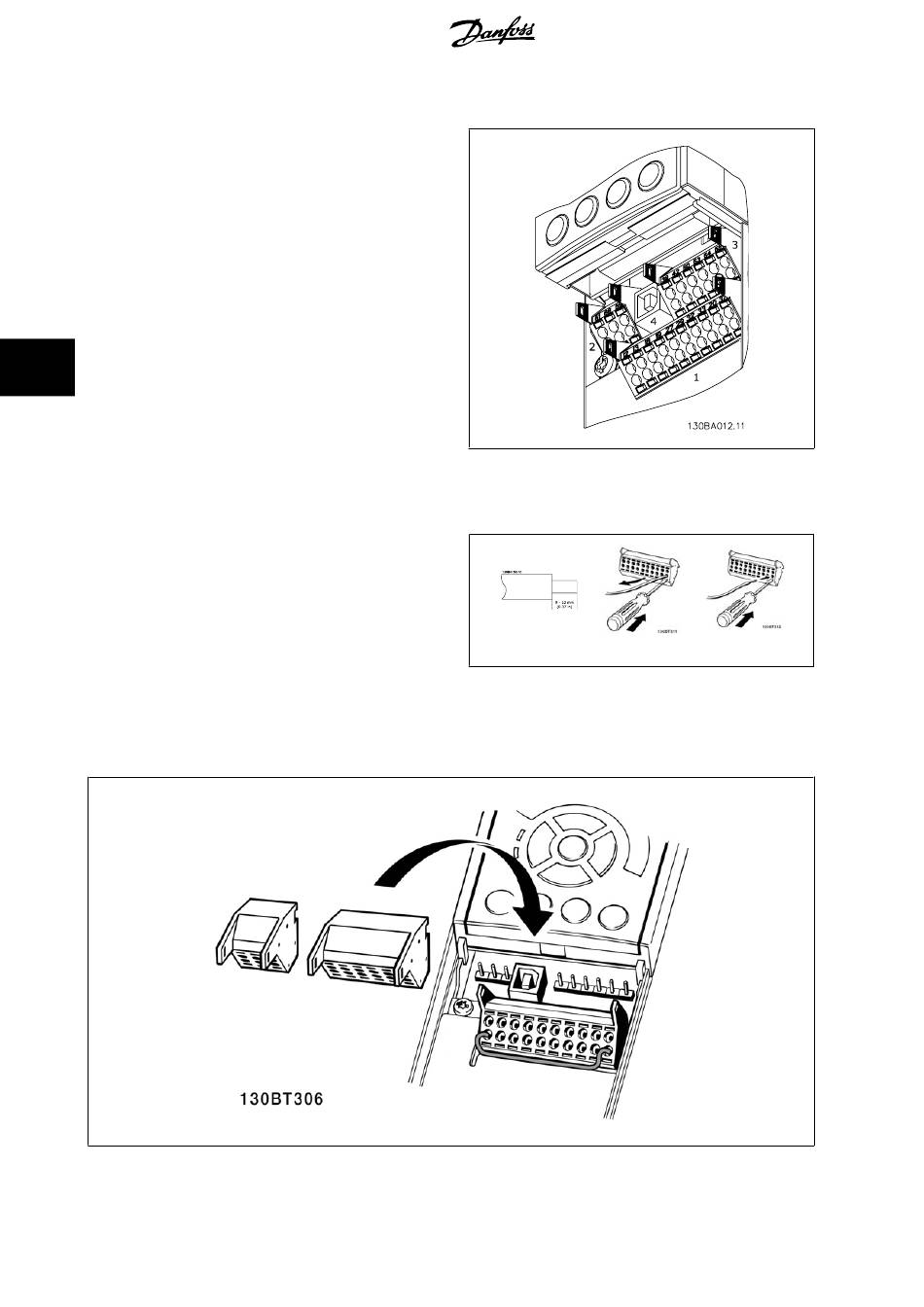

5.2.10. Control Terminals
Drawing reference numbers:
1. 10 pole plug digital I/O.
2. 3 pole plug RS485 Bus.
3. 6 pole analog I/O.
4. USB Connection.
5
5.2.11. Electrical Installation, Control Cable Terminals
To mount the cable to the terminal:
1. Strip isolation of 9-10 mm
2.
Insert a screw driver
3. Insert the cable in the adjacent circular hole.
4. Remove the screw driver. The cable is now mounted to the ter-
minal.
To remove the cable from the terminal:
1.
Insert a screw driver
2. Pull out the cable.
1) Max. 0.4 x 2.5 mm
112
1)
in the square hole.
1) in the square hole.
MG.20.N4.02 - VLT
Illustration 5.7: Control terminals (all enclosures)
1.
2.
®
