5. How to Install
5

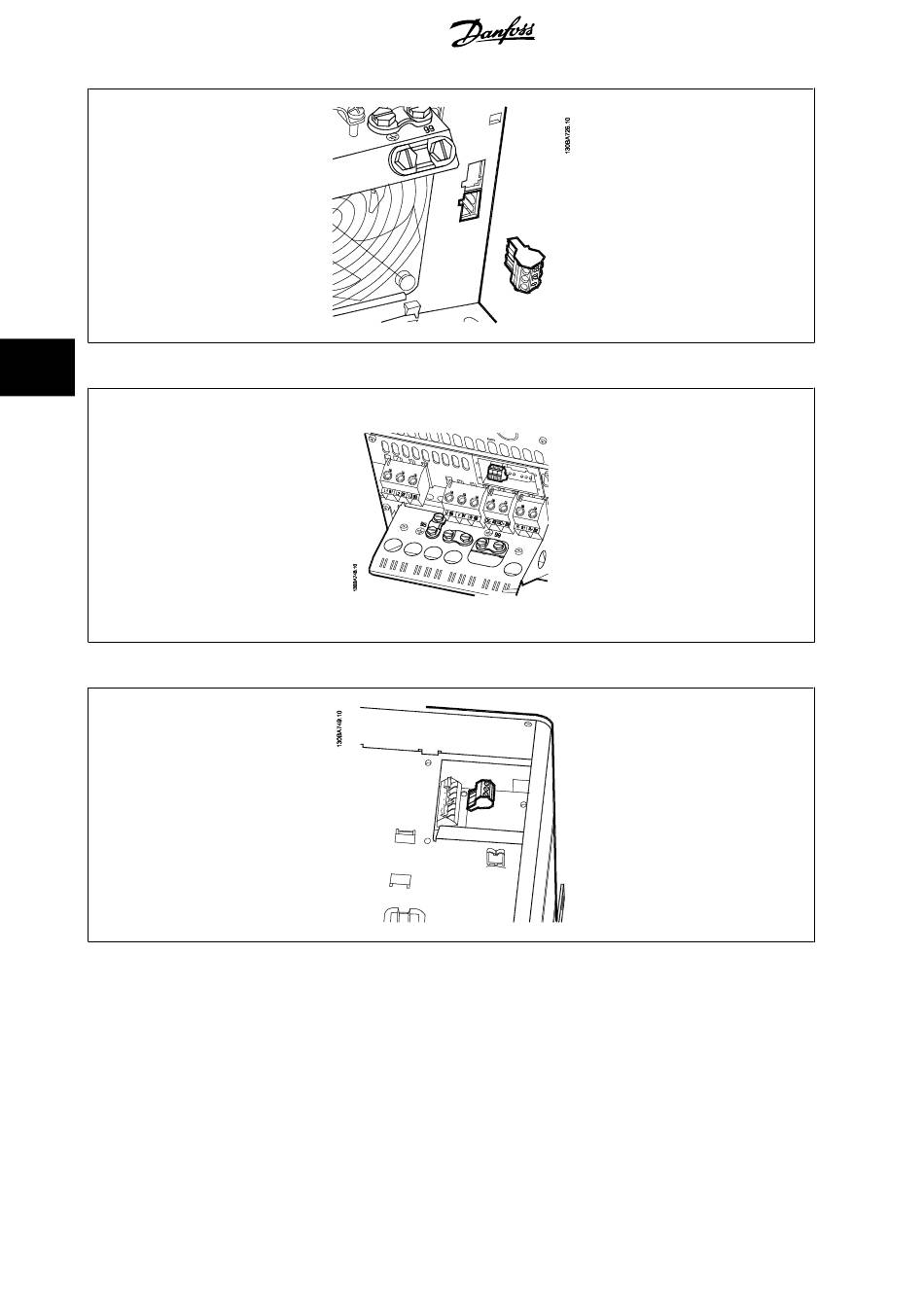

Illustration 5.22: Terminals for relay connections for B3. Only one knock-out is fitted from the factory.
Illustration 5.23: Terminals for relay connections for B4.
Illustration 5.24: Terminals for relay connections for C3 and C4. Located in the upper right corner of the frequency converter.
5.5.4. Relay Output
Relay 1
Terminal 01: common
Terminal 02: normal open 240 V AC
Terminal 03: normal closed 240 V AC
Relay 2
122
Terminal 04: common
Terminal 05: normal open 400 V AC
Terminal 06: normal closed 240 V AC
Relay 1 and relay 2 are programmed in par. 5-40 Function
5-41 On
Delay, Relay
®
MG.20.N4.02 - VLT
is a registered Danfoss trademark
®
VLT
AQUA Drive Design Guide
, and par. 5-42 Off
Delay, Relay
.
Relay
, par.
