Working Parts - Silca Matrix One Operating Manual

Operating manual

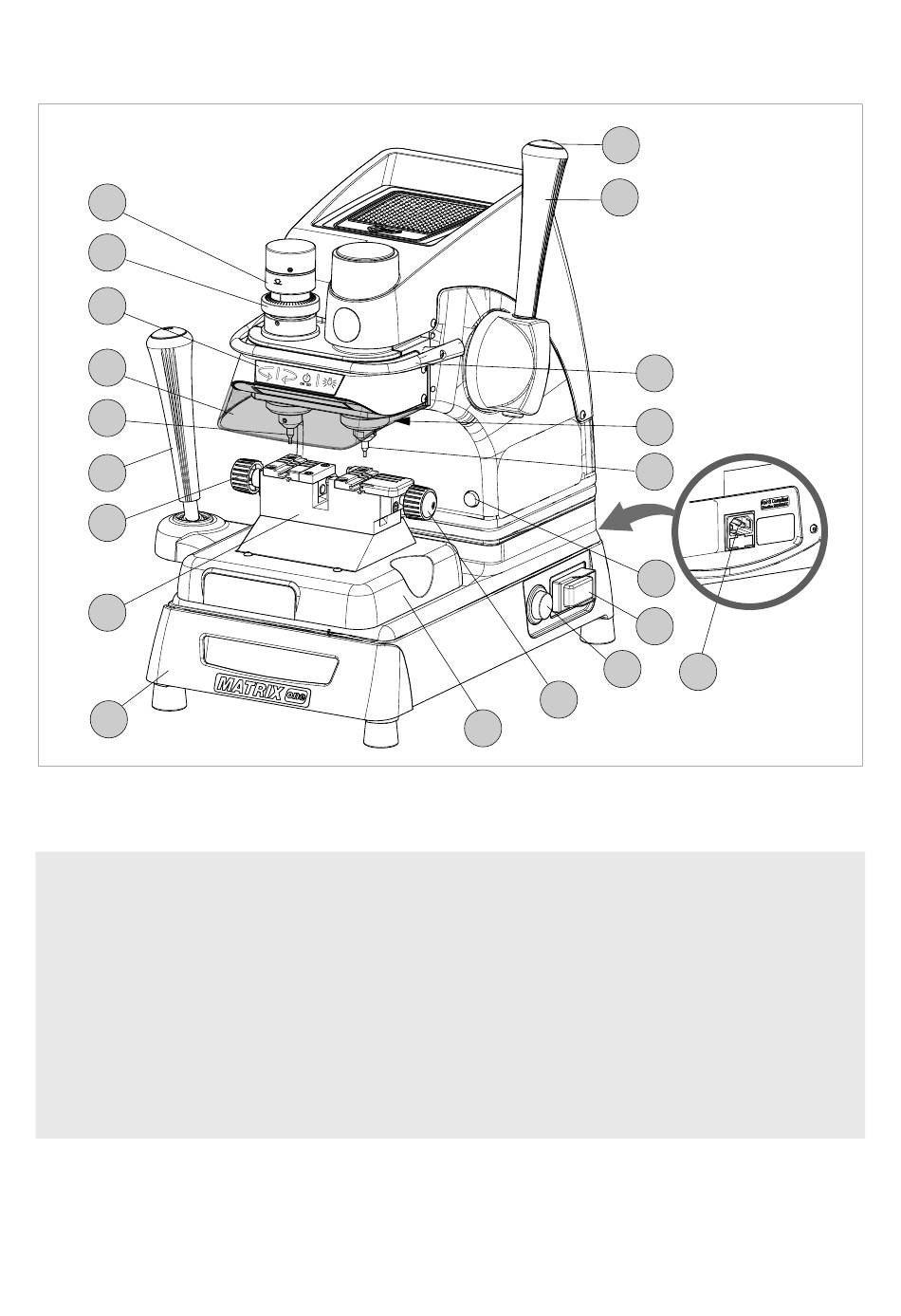

1.1 WORKING PARTS

N
V
K
G
T
C
E
B
S
A - clamp carriage (X-Y axes)
B - clamp
C - clamp carriage lever (X-Y axes)
D - vertical carriage lever (Z axis)
D1- lever release and motor start button
E - left-hand clamp knob
E1- right-hand clamp knob
F - cutter
G - transparent safety shield
J - lamp
6
E1
A
Fig. 5
K - calibration unit key pad
N - tracer point spring cam
P - ON/OFF switch
Q - motor ON switch
R - rollbar
S - tool box
T - tracer point
V - tracer point regulation micrometric ring
W- motor ON warning light
Z - power socket
Copyright Silca 2014
D1
D
R
J
F
W
P
Q
Z
Matrix ONE
