3.5 WORK STATION DESCRIPTION

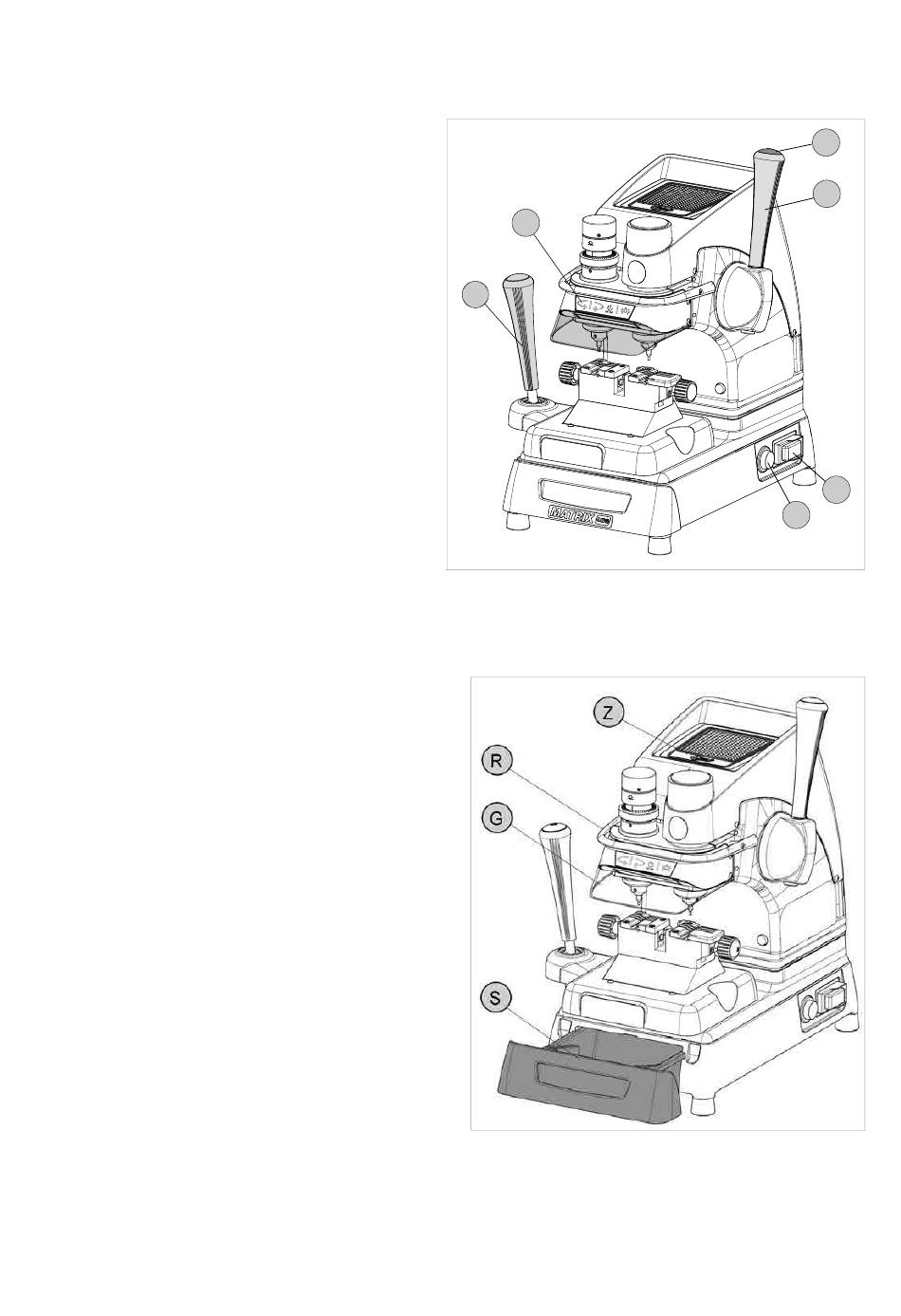

The machine is operated by a single person using the following controls:
• ON/OFF master switch (P) located on the right-
hand side of the machine.
• Motor ON/OFF switch (Q).
• Vertical carriage lever (D) with push button (D1)
to release the lever and start the motor.
• Clamp unit
• Lever (left-hand) (C)
• Key pad (calibration and illumination) (K )
• ORGANIZER SHELF (Z)
The top part of the cover incorporates an area for the operator to use as a place for things such as key blanks or
cut keys. It is advisable not to put too many things in this area, as they could accidentally fall off .
• ROLLBAR (R)
The purpose of this special bar is to assist the operator
during key cutting. It is used as a rest for the left hand
when moving the clamp carriage (centering cuts on
dimple keys or cutting path for laser keys). It ensures
smooth synchronised carriage movements during cutting
operations.
• TRANSPARENT SAFETY SHIELD (G)
Special plexiglass shield to limit the dispersal of swarf .
• TOOL BOX (S)
In the bottom part of the machine front, under the clamp
unit carriage, there is a tool box with an open part to use
as a handle for pulling out the box. Inside it has 20 spaces
for holding tracer points and cutters, and a larger area for
other small tools and/or keys.
K
C
Copyright Silca 2014
Matrix ONE
D1
D
P
Q
Fig. 11
Fig. 12
11
