Operating manual
6.14.2

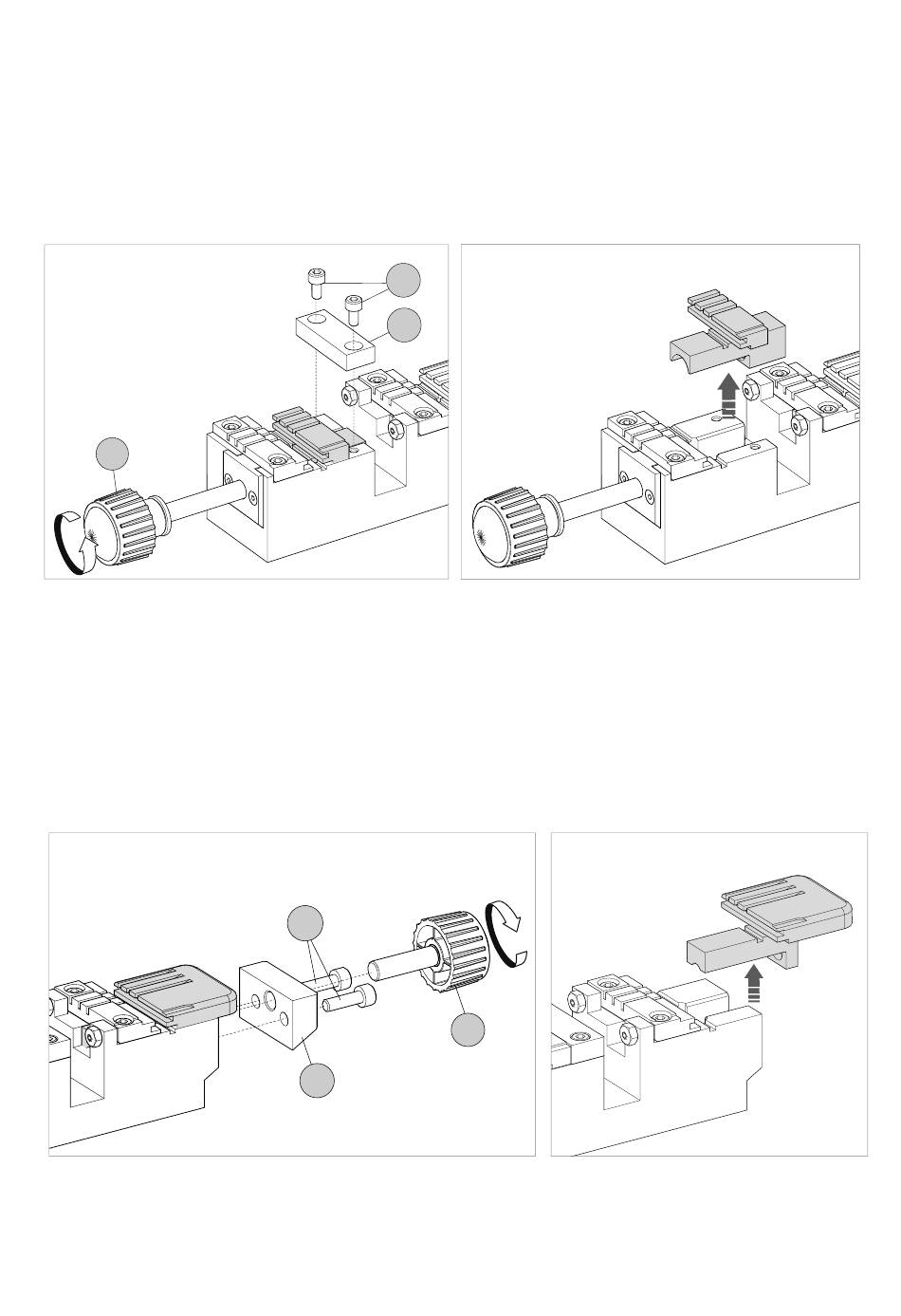

REPLACING MOBILE JAW ON LEFT-HAND CLAMP

1) Fully unscrew the knob (E).
2) Loosen the 2 screws (H3) and remove the plate (H4) (Fig. 62) .
3) Remove the mobile jaw and clean the clamp (Fig. 63).
4) Fit the new jaw and then screw in the knob.
5) Replace the plate (H4) and tighten the 2 screws (H3).
E
6.14.3

REPLACING MOBILE JAW ON RIGHT-HAND CLAMP

1) Fully unscrew the knob (E1).
2) Loosen the 2 screws (U3) and remove the plate (U4) (Fig. 64).
3) Remove the mobile jaw and clean the clamp (Fig. 65).
4) Fit the new jaw, replace the plate (U4) and tighten the 2 screws (U3).
5) Screw in the knob (E1).
32
Fig. 62
U3
U4
Fig. 64
H3
H4
E1
Copyright Silca 2014
Matrix ONE
Fig. 63
Fig. 65
