4 MACHINE CALIBRATION AND REGULATION

Before carrying out cutting operations the clamps and tools must be regulated. According to the type of key to be
cut, activate or deactivate the spring device provided with the machine to facilitate cutting operations:
• Vertical spring for the tracer point used for dimple keys (chap.4.4) .

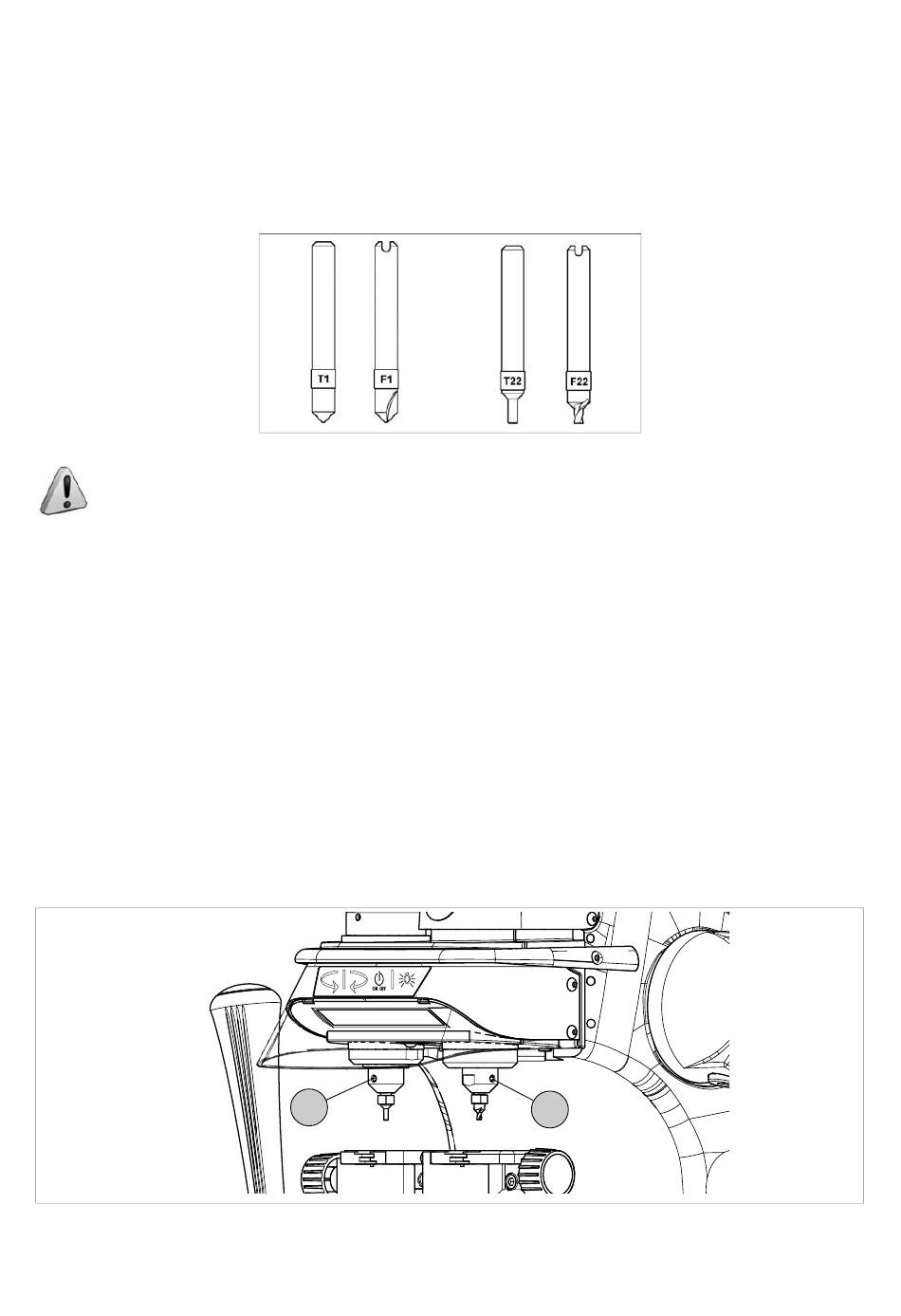

4.1 FITTING AND REMOVING TOOLS

ATTENTION: carry out this operation with the cutter motor off.
Lever (D) fully raised.
Clamp carriage lever (C) fully down .
Tracer point
Fitting:
insert the tracer point all the way into the spindle with the numbered ring towards the clamp.
-
hold the tool in this position and tighten the grub screw (G3) with the hex wrench provided.
-
Removing:
loosen the grub screw (G3) with the hex wrench and remove the tool .
-
Cutter
Fitting:
insert the cutter into the spindle with the numbered ring towards the clamp.
-
hold the tool in this position and tighten the grub screw (G4) with the hex wrench.
-
Removing:
loosen the grub screw (G4) with the hex wrench and remove the tool.
-
Fig. 15
G3
Fig. 16
Copyright Silca 2014
G4
Matrix ONE
13
