FC 300 Profibus

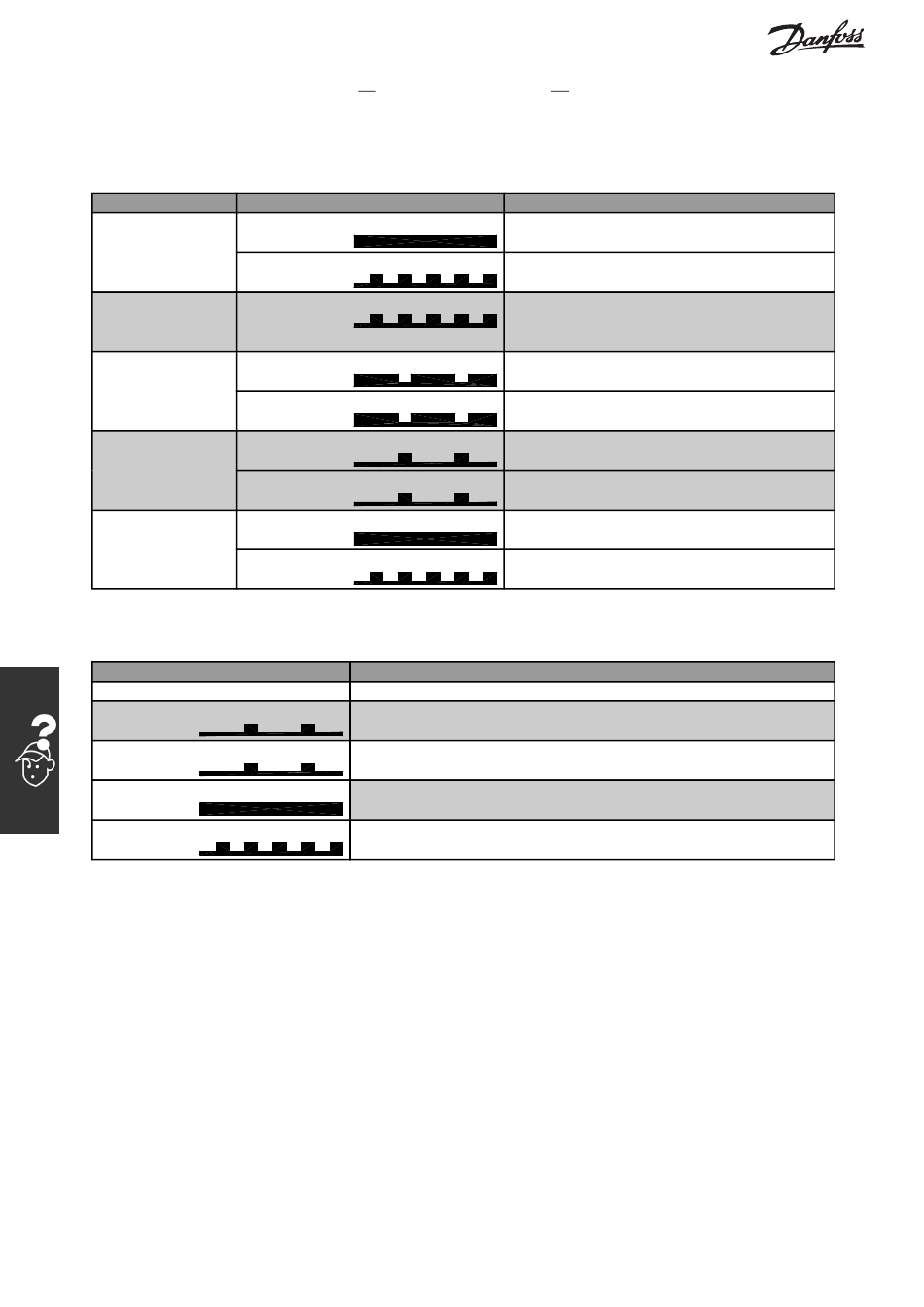

LED 1: Net Status
Phases
Power On
Search baud
rate
Wait
Parameterizing
Wait
Configuration
Data Exchange
LED 2: Module Status
Bi-colour LED
No light
Green
Green
Green
Red
76
Troubleshooting
Bi-colour LED
Red
Green
Green
Green
Red
Green
Red
Green
Red
Status
No PROFIBUS DPV1 communication is active.
DP V1 communication from a Master Class 1 (PLC) is active.
DP V1 communication from a Master Class 2 (MCT 10, FDT)
is active.
DP V1 communication from a Master Class 1 and 2 is active.
Internal error.
MG.33.C2.02 - VLT is a registered Danfoss trademark
Status
The PROFIBUS card is defect.
Contact Danfoss Drives
The PROFIBUS card is OK.
Searching for the baud rate. Check the
connection to the master if it stays in
this state.
Baud rate found - waiting for parameters
from the master.
Wrong parameters from the master.
Parameters from master OK - waiting
for configuration data.
Wrong Configuration data from the
master.
Data Exchange between the master and
the FC 300 is active.
Clear State. Warning 34 is active and a
bus reaction in par. 8-04 is executed.
