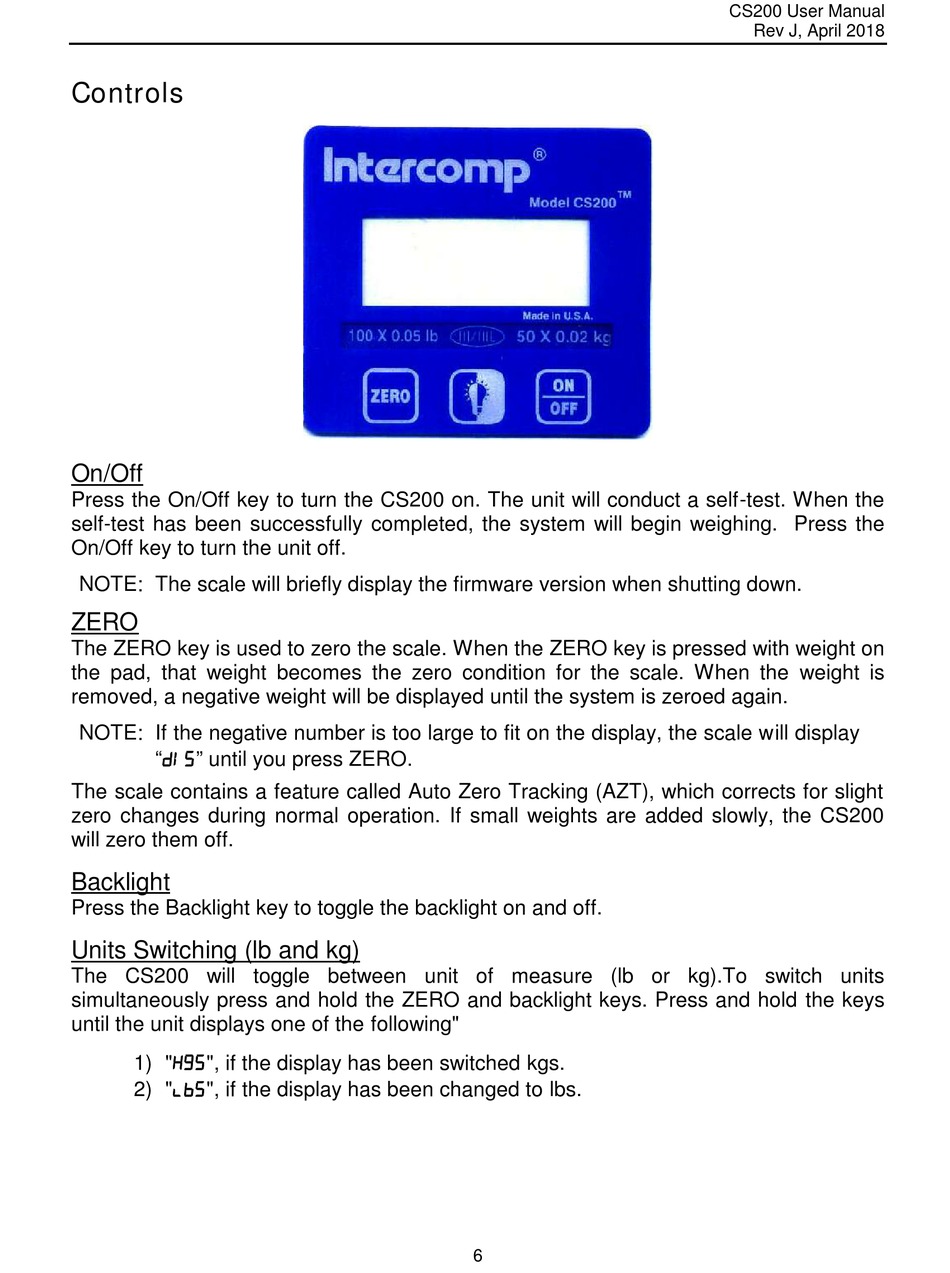

Controls

On/Off
Press the On/Off key to turn the CS200 on. The unit will conduct a self-test. When the
self-test has been successfully completed, the system will begin weighing. Press the
On/Off key to turn the unit off.
NOTE: The scale will briefly display the firmware version when shutting down.
ZERO
The ZERO key is used to zero the scale. When the ZERO key is pressed with weight on
the pad, that weight becomes the zero condition for the scale. When the weight is
removed, a negative weight will be displayed until the system is zeroed again.
NOTE: If the negative number is too large to fit on the display, the scale will display
"" until you press ZERO.
The scale contains a feature called Auto Zero Tracking (AZT), which corrects for slight
zero changes during normal operation. If small weights are added slowly, the CS200
will zero them off.
Backlight
Press the Backlight key to toggle the backlight on and off.
Units Switching (lb and kg)
The CS200 will toggle between unit of measure (lb or kg).To switch units
simultaneously press and hold the ZERO and backlight keys. Press and hold the keys
until the unit displays one of the following"
1) "", if the display has been switched kgs.
2) "", if the display has been changed to lbs.
