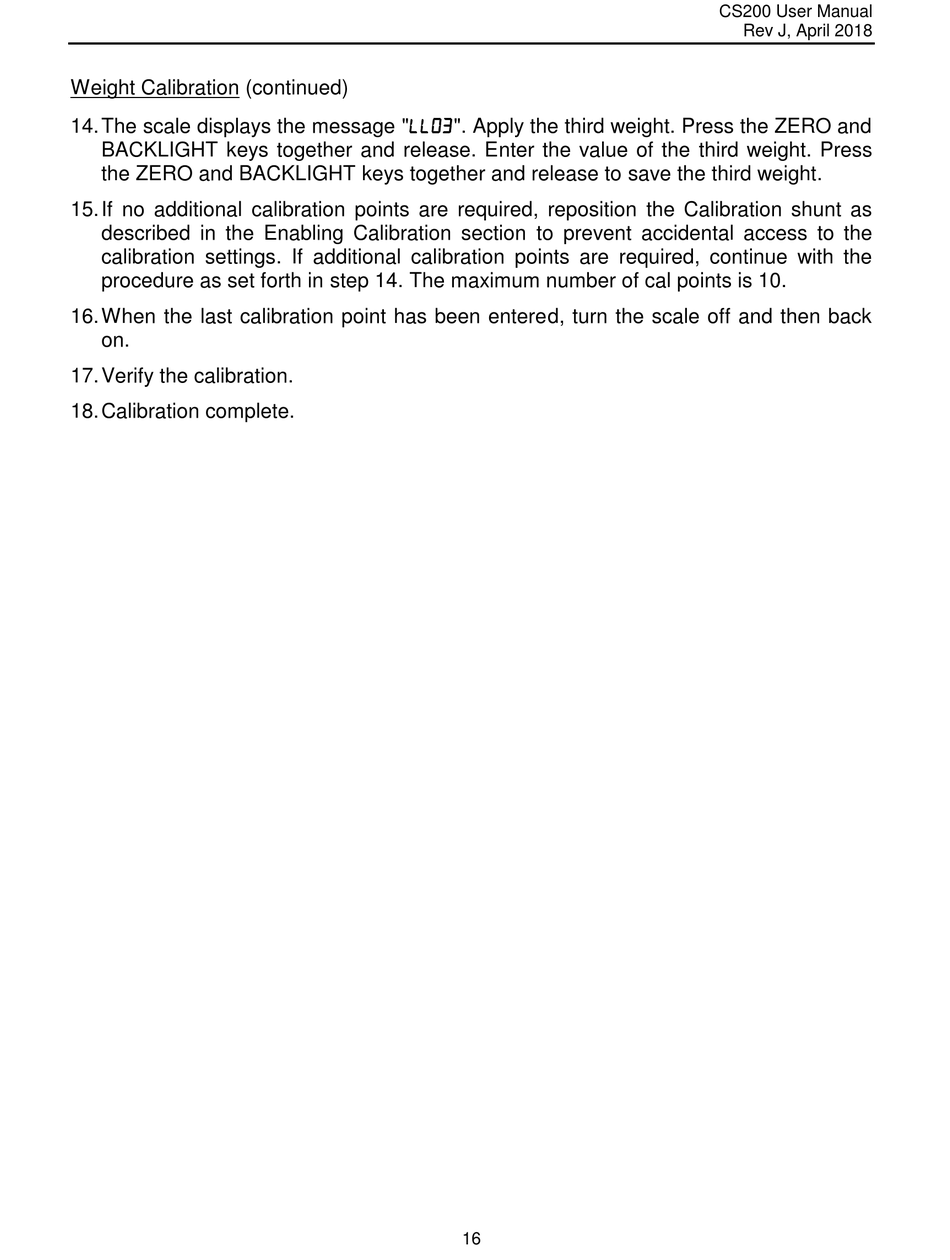

Intercomp CS200 User Manual page 16

Weight Calibration (continued)
14. The scale displays the message "". Apply the third weight. Press the ZERO and
BACKLIGHT keys together and release. Enter the value of the third weight. Press
the ZERO and BACKLIGHT keys together and release to save the third weight.
15. If no additional calibration points are required, reposition the Calibration shunt as
described in the Enabling Calibration section to prevent accidental access to the
calibration settings. If additional calibration points are required, continue with the
procedure as set forth in step 14. The maximum number of cal points is 10.
16. When the last calibration point has been entered, turn the scale off and then back
on.
17. Verify the calibration.
18. Calibration complete.
16
CS200 User Manual
Rev J, April 2018
