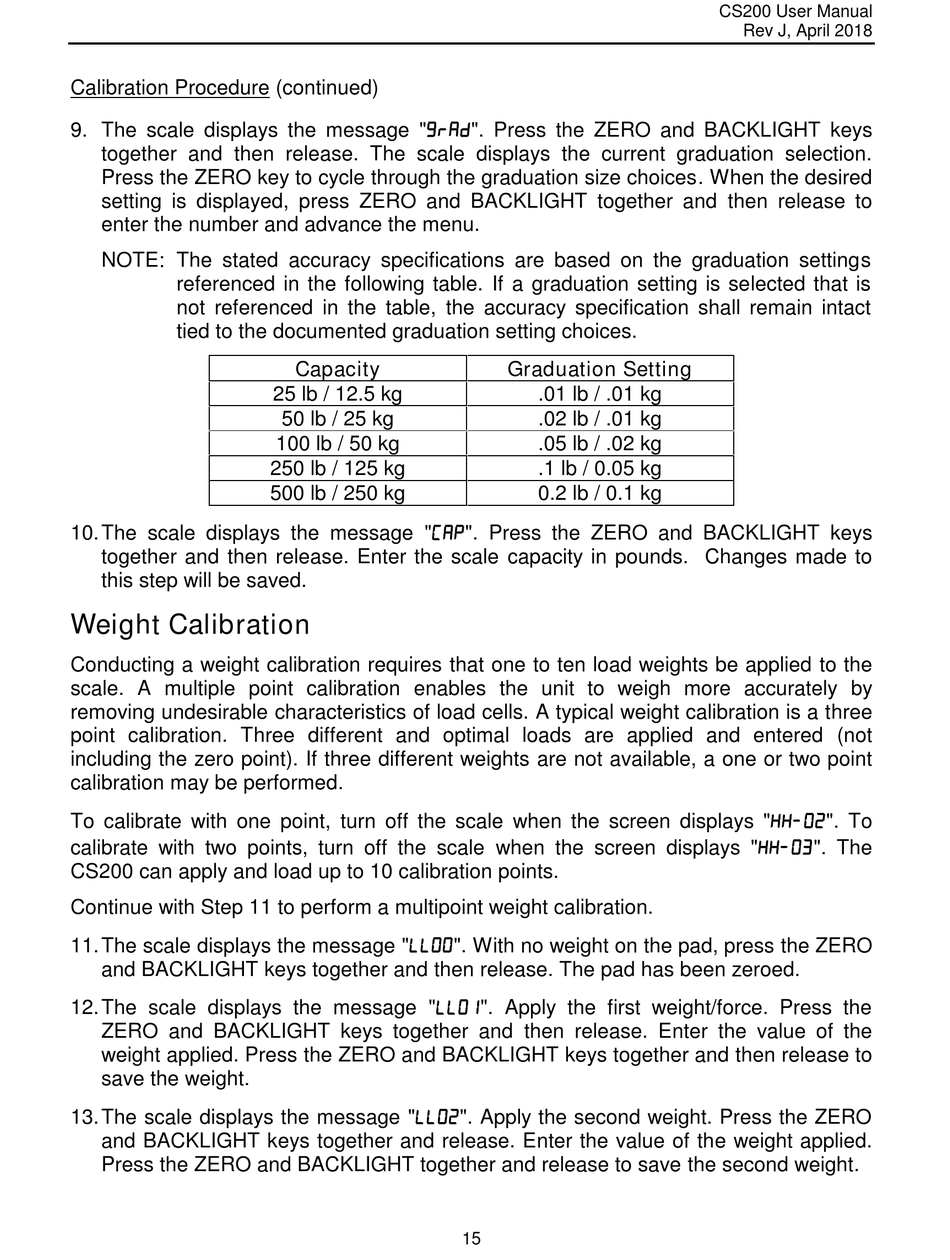

Intercomp CS200 User Manual page 15

Calibration Procedure (continued)
9. The scale displays the message "". Press the ZERO and BACKLIGHT keys
together and then release. The scale displays the current graduation selection.
Press the ZERO key to cycle through the graduation size choices. When the desired
setting is displayed, press ZERO and BACKLIGHT together and then release to
enter the number and advance the menu.
NOTE: The stated accuracy specifications are based on the graduation settings
referenced in the following table. If a graduation setting is selected that is
not referenced in the table, the accuracy specification shall remain intact
tied to the documented graduation setting choices.
10. The scale displays the message "". Press the ZERO and BACKLIGHT keys
together and then release. Enter the scale capacity in pounds. Changes made to
this step will be saved.
Weight Calibration
Conducting a weight calibration requires that one to ten load weights be applied to the
scale. A multiple point calibration enables the unit to weigh more accurately by
removing undesirable characteristics of load cells. A typical weight calibration is a three
point calibration. Three different and optimal loads are applied and entered (not
including the zero point). If three different weights are not available, a one or two point
calibration may be performed.
To calibrate with one point, turn off the scale when the screen displays "". To
calibrate with two points, turn off the scale when the screen displays "". The
CS200 can apply and load up to 10 calibration points.
Continue with Step 11 to perform a multipoint weight calibration.
11. The scale displays the message "". With no weight on the pad, press the ZERO
and BACKLIGHT keys together and then release. The pad has been zeroed.
12. The scale displays the message "". Apply the first weight/force. Press the
ZERO and BACKLIGHT keys together and then release. Enter the value of the
weight applied. Press the ZERO and BACKLIGHT keys together and then release to
save the weight.
13. The scale displays the message "". Apply the second weight. Press the ZERO
and BACKLIGHT keys together and release. Enter the value of the weight applied.
Press the ZERO and BACKLIGHT together and release to save the second weight.
Capacity
25 lb / 12.5 kg
50 lb / 25 kg
100 lb / 50 kg
250 lb / 125 kg
500 lb / 250 kg
Graduation Setting
.01 lb / .01 kg
.02 lb / .01 kg
.05 lb / .02 kg
.1 lb / 0.05 kg
0.2 lb / 0.1 kg
