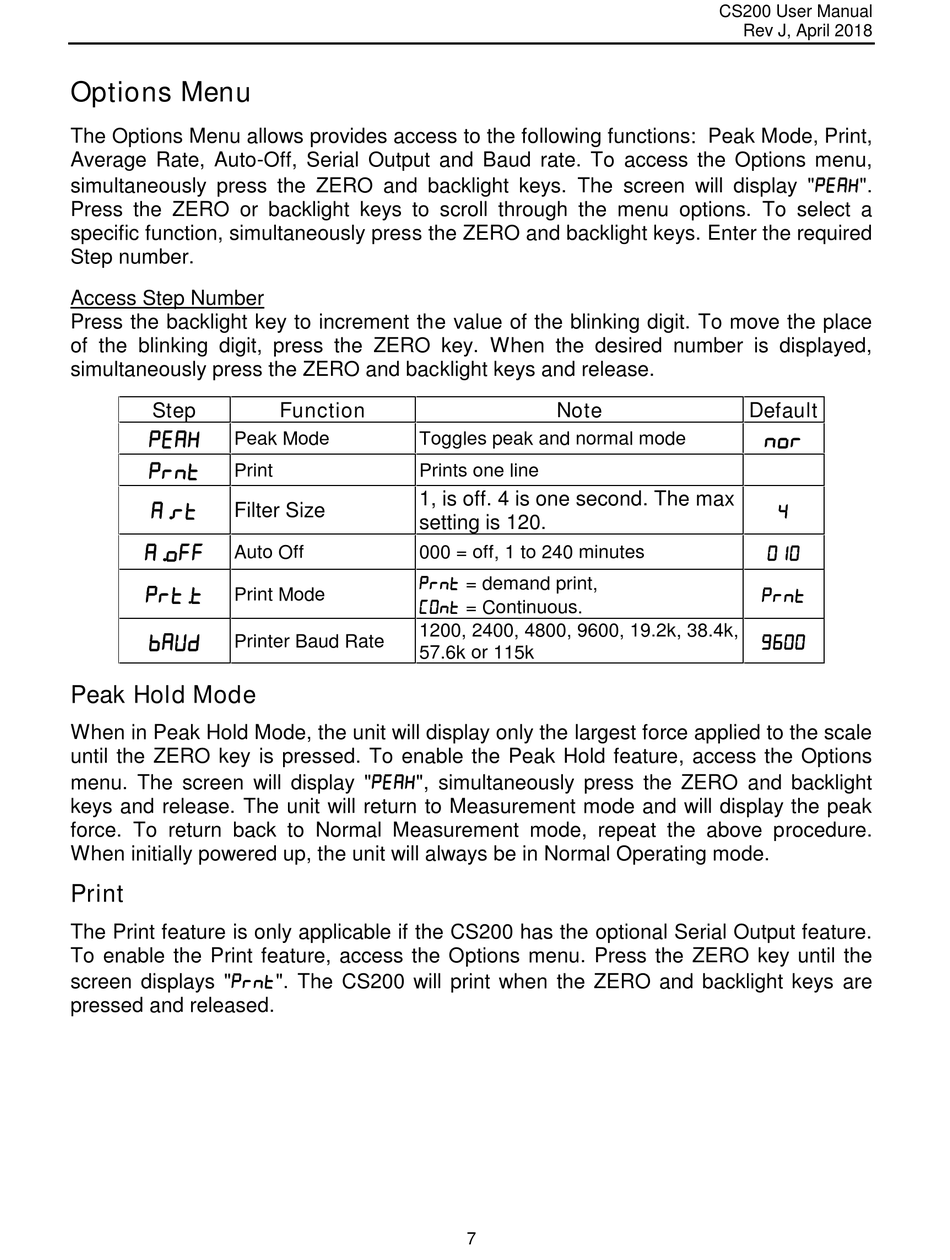

Options Menu

The Options Menu allows provides access to the following functions: Peak Mode, Print,
Average Rate, Auto-Off, Serial Output and Baud rate. To access the Options menu,
simultaneously press the ZERO and backlight keys. The screen will display "".
Press the ZERO or backlight keys to scroll through the menu options. To select a
specific function, simultaneously press the ZERO and backlight keys. Enter the required
Step number.
Access Step Number
Press the backlight key to increment the value of the blinking digit. To move the place
of the blinking digit, press the ZERO key. When the desired number is displayed,
simultaneously press the ZERO and backlight keys and release.
Step

Peak Mode


Print

. Filter Size
.
Auto Off
.
 
Print Mode

Printer Baud Rate

Peak Hold Mode

When in Peak Hold Mode, the unit will display only the largest force applied to the scale
until the ZERO key is pressed. To enable the Peak Hold feature, access the Options
menu. The screen will display "", simultaneously press the ZERO and backlight
keys and release. The unit will return to Measurement mode and will display the peak
force. To return back to Normal Measurement mode, repeat the above procedure.
When initially powered up, the unit will always be in Normal Operating mode.
Print
The Print feature is only applicable if the CS200 has the optional Serial Output feature.
To enable the Print feature, access the Options menu. Press the ZERO key until the
screen displays "". The CS200 will print when the ZERO and backlight keys are
pressed and released.
Function
Toggles peak and normal mode
Prints one line
1, is off. 4 is one second. The max
setting is 120.
000 = off, 1 to 240 minutes
 = demand print,
 = Continuous.
1200, 2400, 4800, 9600, 19.2k, 38.4k,
57.6k or 115k
Note
7
CS200 User Manual
Rev J, April 2018
Default







