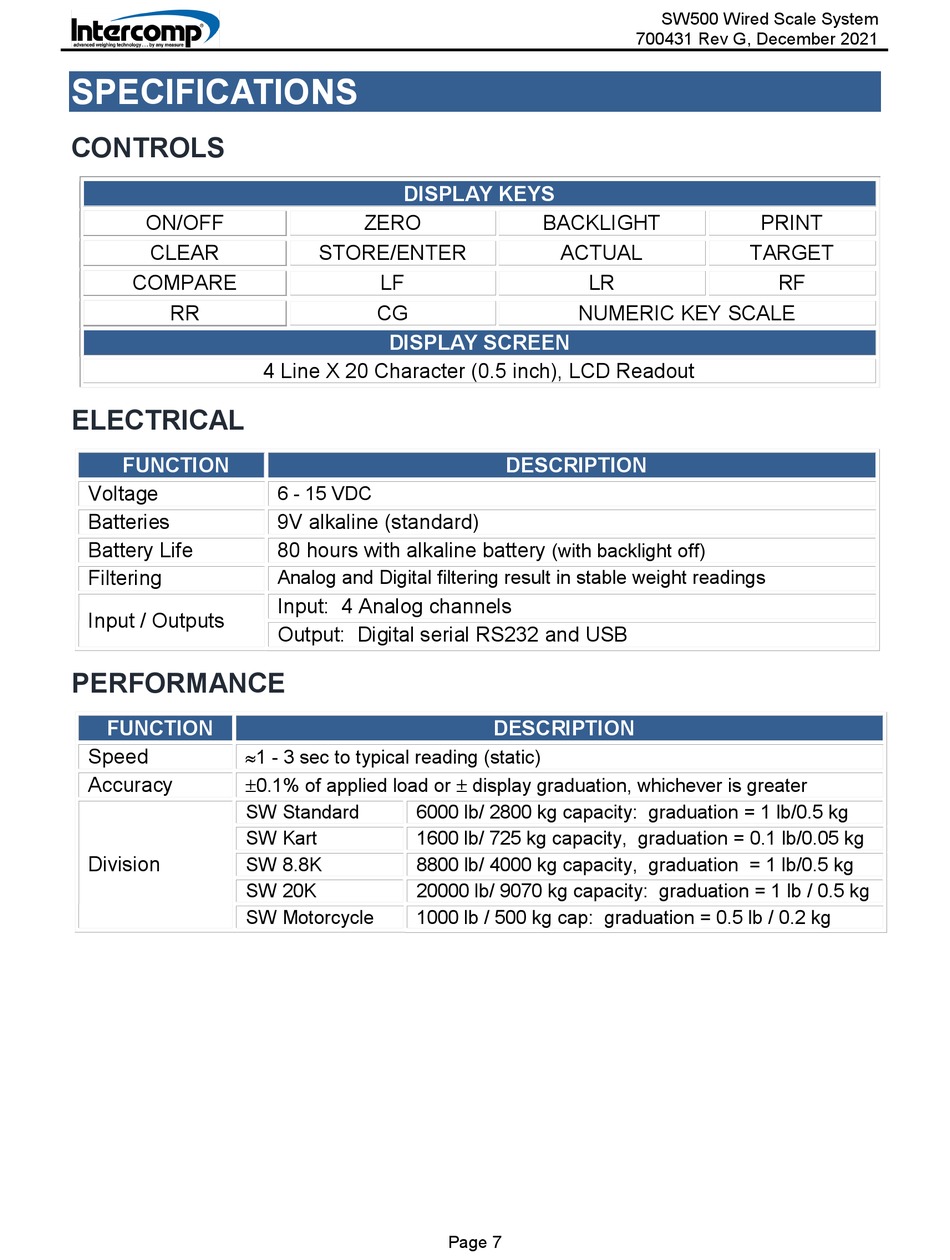

SPECIFICATIONS

CONTROLS

ON/OFF
CLEAR
COMPARE
RR

ELECTRICAL

FUNCTION
Voltage
Batteries
Battery Life
Filtering
Input / Outputs

PERFORMANCE

FUNCTION
Speed 1 - 3 sec to typical reading (static)
Accuracy 0.1% of applied load or  display graduation, whichever is greater
SW Standard
SW Kart
Division
SW 8.8K
SW 20K
SW Motorcycle
DISPLAY KEYS
ZERO
STORE/ENTER
LF
CG
DISPLAY SCREEN
4 Line X 20 Character (0.5 inch), LCD Readout
6 - 15 VDC
9V alkaline (standard)
80 hours with alkaline battery
Analog and Digital filtering result in stable weight readings
Input: 4 Analog channels
Output: Digital serial RS232 and USB
6000 lb/ 2800 kg capacity: graduation = 1 lb/0.5 kg
1600 lb/ 725 kg capacity, graduation = 0.1 lb/0.05 kg
8800 lb/ 4000 kg capacity, graduation = 1 lb/0.5 kg
20000 lb/ 9070 kg capacity: graduation = 1 lb / 0.5 kg
1000 lb / 500 kg cap: graduation = 0.5 lb / 0.2 kg
BACKLIGHT
ACTUAL
LR
NUMERIC KEY SCALE
DESCRIPTION
(with backlight off)
DESCRIPTION
Page 7
SW500 Wired Scale System
700431 Rev G, December 2021
PRINT
TARGET
RF
