READ AND SAVE THESE INSTRUCTIONS
Reveal
®
User
SCC P/N
Manual
20-80692
REVEAL® FREE STANDING SERVICE REFRIGERATED MERCHANDISERS
> REAR SLIDING DOORS
> SELF-CONTAINED OR REMOTE UNITS
> CAUTION! DO NOT PUSH OR PULL ON UPPER GLASS ENCLOSURE!
> ONLY USE HANDLES (AT EACH END OF CASE) TO PUSH OR PULL CASE INTO POSITION!
> SEE PAGES 10-11 FOR PANEL, GRILLE & TOE-KICK ATTACHMENT INSTRUCTIONS
> SEE PAGES 12-15 FOR CASE ADJOINMENT INSTRUCTIONS.
Models Are Shipped WITHOUT Panels and
Cladding Attached. See Page 10 and 11 For
Component Attachment Instructions.

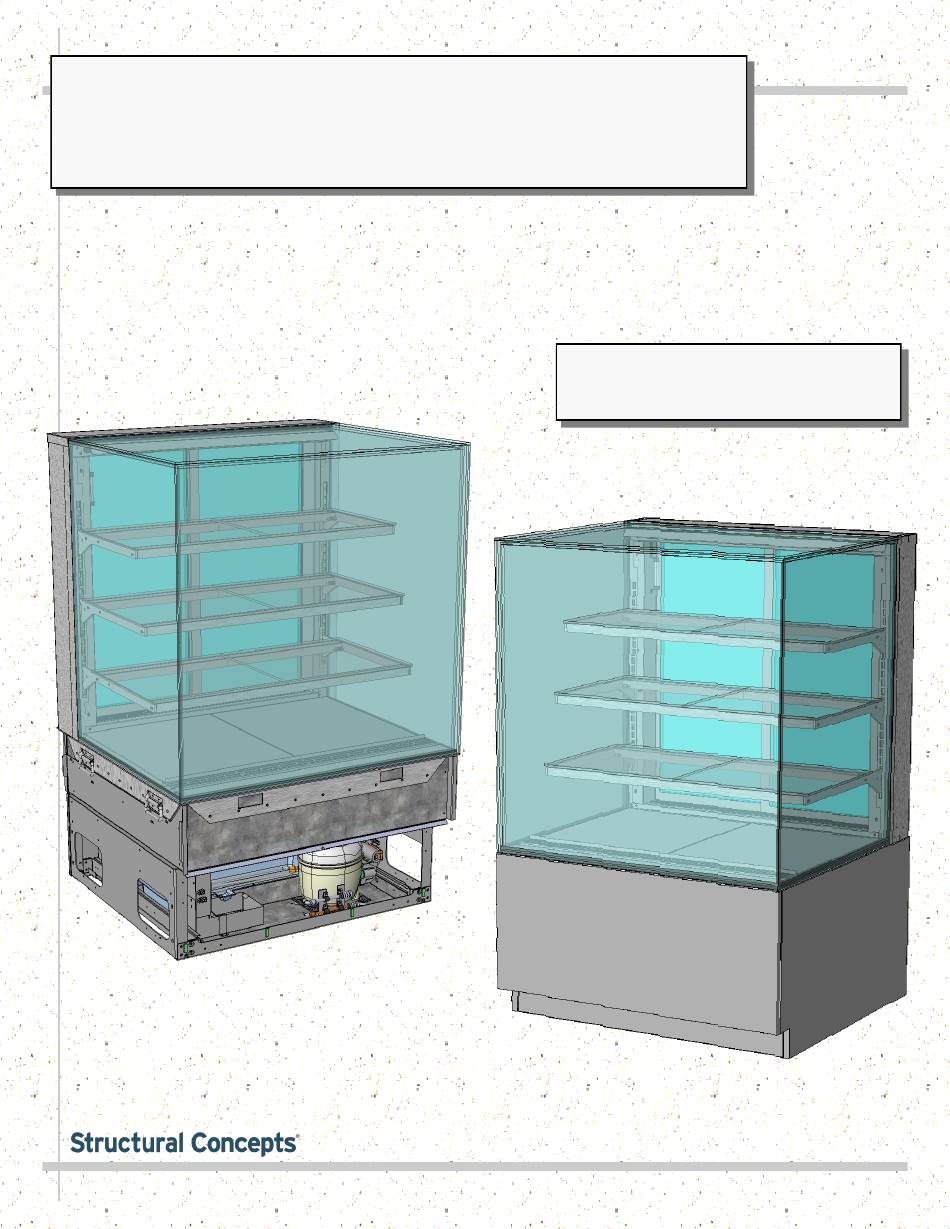

Model NR3655RSV Free Standing Unit Shown
Before Front/Side Cladding and Toe-Kick
Have Been Attached

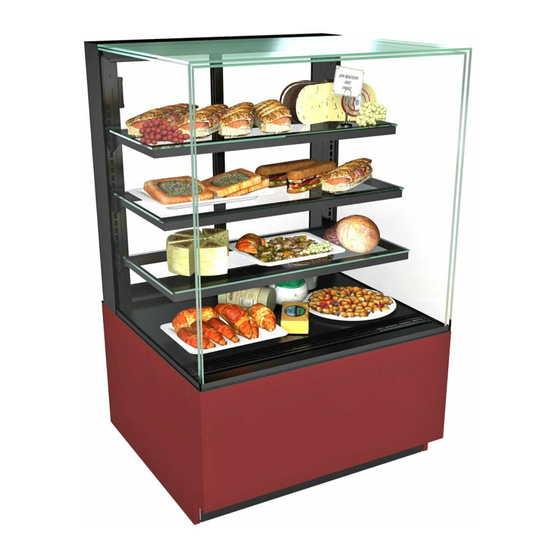

Model NR3655RSV Free Standing Unit
Shown After Front/Side Cladding and
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
REV G DATE: 10/122022
USER MANUALS\20-80692_REVEAL_USER MANUAL_NR(L)(H)RSV_REF_SVC_FREE STDG_DISPLAY CASE
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Structural Concepts Reveal NR3633RSV
Summary of Contents for Structural Concepts Reveal NR3633RSV
- Page 1 Have Been Attached Model NR3655RSV Free Standing Unit Shown After Front/Side Cladding and Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com REV G DATE: 10/122022 USER MANUALS\20-80692_REVEAL_USER MANUAL_NR(L)(H)RSV_REF_SVC_FREE STDG_DISPLAY CASE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS …………………………………………………………………………………...…... REVEAL® FREE STANDING REFRIGERATED SERVICE MODEL APPLICABILITY & DIMENSIONS ……………………………………………………………………………………….….. OVERVIEW / DISPLAY TYPE I vs. II / COMPLIANCE / WARNINGS / PRECAUTIONS ……………... INSTALLATION: TOE-KICK & AIR INTAKE GRILLE REMOVAL / DISCONNECTING CASE FROM PALLET ...…...………………………………………………………………………………….………. -
Page 3: Dimensions
REVEAL® FREE STANDING REFRIGERATED SERVICE MODEL APPLICABILITY & DIMENSIONS Upper Display Model Overall Height Case Depth x Length Height NR3633RSV 13 5/8”UDH 32 7/8”OH 33”D x 35 3/4”L NR3640RSV 20 3/8”UDH 39 5/8”OH 33”D x 35 3/4”L NR3647RSV 27 7/8”UDH 47 1/8”OH 33”D x 35 3/4”L NR3655RSV... -
Page 4: Overview / Display Type I Vs. Ii / Compliance / Warnings / Precautions - Page 1 Of 2
• Type II display refrigerators are intended for use in an area where environmental conditions are controlled and • These Structural Concepts Reveal® cases are maintained so that the ambient temperature does not designed to merchandise packaged products at 40°F exceed 80 °F (27 °C) and 55% maximum humidity. - Page 5 Following are important precautions to prevent • This disclosure statement has been reviewed and damage to unit or merchandise. Read carefully! approved by Structural Concepts and Structural Concepts attests, under penalty of perjury, that these statements REFRIGERANT DISCLOSURE STATEMENT are true and accurate.
-
Page 6: Installation: Toe-Kick & Air Intake Grille Removal / Disconnecting Case From
INSTALLATION: TOE-KICK & AIR INTAKE GRILLE REMOVAL / DISCONNECTING CASE FROM PALLET 1. Remove Front Toe-Kick From Case • To prevent damage to case, remove front toe-kick from case before removing from pallet. • Toe-kick is held in place by magnets only. No screw removal is required. -
Page 7: Pallet
INSTALLATION, CONT’D.: CASTER ADJUSTMENT / LOCK / UNLOCK / CASE REMOVAL FROM PALLET 4. Caster Height: Raising and Lowering Vertical • Raise or lower casters (to adjust case height) by Adjustment rotating casters’ vertical adjustment rings. Ring • Rotate vertical adjustment ring clockwise to lower caster (and increase height of case). -
Page 8: Installation, Cont'd: Shelving Assembly Components
INSTALLATION, CONT’D: SHELVING ASSEMBLY COMPONENTS 8. Shelving Assembly Components G. Rear shelf support rail H. Left and right glass shelf/cover assemblies (glass • Check that glass shelving is in proper position is affixed to covers with 2-sided tape from factory). before placing product in case Caution! Glass pieces ARE NOT IDENTICAL! •... -
Page 9: Switch
INSTALLATION, CONT’D: PLUG IN UNIT / TURN ON MAIN POWER SWITCH AND LED LIGHT SWITCH 9. Plug Case In / Turn On Main Power Switch Factory-Supplied Power Cord With Plug • Power cord with plug is factory-supplied. • Plug case into customer-supplied electrical outlet. •... -
Page 10: Installation, Cont'd: Attaching Front Panel Components
INSTALLATION, CONT’D: ATTACHING FRONT PANEL COMPONENTS • Attach front toe-kick to case (via lower magnets). 11. Remove Shipping Brace • Slide front panel horizontal support bracket into • Shipping brace keeps condenser package secure case’s support slot (line up arrows). during shipment and while positioning case. -
Page 11: Installation, Cont'd: Attaching Side Panels, Rear Panel And Rear Grille
INSTALLATION, CONT’D: ATTACHING SIDE PANELS, REAR PANEL AND REAR GRILLE 16. Attaching Rear Grille 14. Attaching Side Panels • Use finger holes to place rear grille’s inner hooks • Attach side panels to case using slot/hook onto case rear’s lower shoulder screws. method. -
Page 12: Case Adjoinment Instructions - Page 1 Of 4
CASE ADJOINMENT INSTRUCTIONS - PAGE 1 of 4 2. Case Preparation Prior To Adjoinment Case Adjoinment Overview • Remove front panel. >> Carefully follow these step-by-step case • Remove rear grille. adjoinment instructions. >> Warranty is void if unapproved urethane//sealant •... - Page 13 CASE ADJOINMENT INSTRUCTIONS - PAGE 2 of 4 3. Industrial Grade Urethane Application 5. Inner Raceway Adjoinment • Lay a generous, CONTINUOUS bead of • Inner raceway cover must be removed SCC-provided urethane adhesive (as identified (by removing 2 screws). with line pattern shown below).
- Page 14 CASE ADJOINMENT INSTRUCTIONS - PAGE 3 of 4 7. C-Bracket Attachment • Note: Illustration below shows silicone bead applied at required spot on C-brackets PRIOR to • After cases are attached, place vertical and attachment to case for illustrative purposes only. horizontal C-brackets at inner case.
- Page 15 CASE ADJOINMENT INSTRUCTIONS - PAGE 4 of 4 9. Case Adjoinment Complete / Component Replacement • After case adjoinment is complete, replace decking, shelving, front panel, rear grille, and rear sliding doors in reverse order they were removed. • Glass may now be removed from protective bubble-wrap and placed on shelving brackets. •...
-
Page 16: Case Design: Front View Of Free Standing, Service Merchandisers
CASE DESIGN: FRONT VIEW OF FREE STANDING, SERVICE MERCHANDISERS 1. Front View Of Free Standing, Service Merchandisers • Model NE3635RSV is illustrated below. • Air intake grille, side cladding, front base kick & front panel have been removed for illustrative purposes only. -
Page 17: Case Design, Cont'd: Rear View Of Free Standing, Service Merchandisers
CASE DESIGN, CONT’D: REAR VIEW OF FREE STANDING, SERVICE MERCHANDISERS 2. Rear View Of Free Standing, Service Merchandisers Model Shown May Not Exactly • Model NR4855RSV free standing unit is illustrated below. Reflect Every Feature or Option of • Air intake grille, rear panel, side cladding & shipping brace Your Particular Case. -
Page 18: Case Design, Cont'd: Controller / Dc Drivers / Main Power Switch
CASE DESIGN, CONT’D: CONTROLLER / DC DRIVERS / MAIN POWER SWITCH / COIL FILTER cover to access electrical components. 3. Controller / DC Driver Access / Components • Note: Only certified electricians are to access • Remove front panel by lifting up and off; no screw electrical components in case. -
Page 19: Case Design, Cont'd: Tub Area (After Deck Pan Removal)
CASE DESIGN, CONT’D: TUB AREA (AFTER DECK PAN REMOVAL) 4. Tub Area (After Deck Pan Removal) Note: Refrigeration service to be accomplished by refrigeration/electrical contractors only. Caution! Turn main power off before accessing tub area. • Illustration below shown after removal of deck pans. •... -
Page 20: Case Design, Cont'd: Led Light Switch Location / Led Lights / Thermometer
CASE DESIGN, CONT’D: LED LIGHT SWITCH LOCATION / LED LIGHTS / THERMOMETER 7. Thermometer Function & Placement 5. LED Light Switch Location • Thermometer provides temperature of • Light switch is in column cover (accessible by refrigerated section of case. sliding open door at case rear). -
Page 21: Case Design, Cont'd: Rear Sliding Door Removal / Replacement
CASE DESIGN, CONT’D: REAR SLIDING DOOR REMOVAL / REPLACEMENT 8. Rear Sliding Door Removal / Replacement • To remove rear sliding doors, move rear doors toward center Model NR3635RSV Free Standing of the case. Unit (Shown) May Not Exactly • Individually lift each door up toward the top of the case;... -
Page 22: Case Design, Cont'd: Condenser Package (Self-Contained Units Only)
CASE DESIGN, CONT’D: CONDENSER PACKAGE (SELF-CONTAINED UNITS ONLY) 9. Condenser Package (Self-Contained Units Only) Assembly/disassembly and servicing to be performed by licensed refrigeration contractor. Condensate Package Configuration • Illustration shown is from model NR3635RSV. Your unit’s component layout may slightly vary. Condenser Coil Optional Clean Fans &... -
Page 23: Product Placement / Airflow Consideration / Load Lines
START-UP AND OPERATION, CONTINUED: LOAD LIMITS PRODUCT PLACEMENT / AIRFLOW CONSIDERATION / LOAD LINES 1. Product Placement • Caution! For airflow to reach return air grille, you must not block front or rear grilles with product. • Product can be placed on decking or steps •... -
Page 24: Cleaning Schedule (To Be Performed By Store Personnel)
CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) FREQ. INSTRUCTIONS Daily Glass Surfaces: Clean glass surfaces and shelves with household or commercial glass cleaner. Daily Rear Sliding Door Exterior Glass: Clean with household or commercial glass cleaner. Clean out rear door track with moist cloth. Daily End Panels, Front Panel, Toe-Kick, etc.: Wipe off all surfaces with warm water and mild soap solution and non-abrasive cloth. -
Page 25: Preventive Maintenance (To Be Performed By Trained Service Provider) - Page 1 Of 2
PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) - PAGE 1 OF 2 WARNING! TURN OFF CASE BEFORE PERFORMING PREVENTIVE MAINTENANCE! FREQ. INSTRUCTIONS Quarterly Condensing Coil: • Remove air intake grille to access area. Simply lift up and off. •... - Page 26 PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) - PAGE 2 OF 2 FREQUENCY INSTRUCTIONS Quarterly Optional Clean Sweep™ Condensing Coil Cleaner: Disconnect power from case before servicing the Clean Sweep™ Condenser Coil Cleaner! • Remove air intake grille (by lifting up and off); no screw removal is required. •...
-
Page 27: Troubleshooting (To Be Performed By Store Personnel Only)
TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL) - PAGE 1 OF 2 CONDITION TROUBLESHOOTING Water Is On The Floor Call service provider. Fan Emits Excessive Noise Call service provider. Case is Not Holding Proper If a large amount of warm product was added to the case, it will take time Temperature for the temperature to adjust. - Page 28 Troubleshooting to be performed by trained service providers only is on next page. If case light still do not come on, it may need to be replaced. • Contact Structural Concepts’ Technical Service Department for replacement light (see TECHNICAL SERVICE section of this manual for contact information). •...
-
Page 29: Troubleshooting (To Be Performed By Trained Service Providers Only) - Page 1 Of 3
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) - PAGE 1 OF 3 CONDITION TROUBLESHOOTING Water Is On The Caution! Disruption of power or malfunctioning condensate pan (or electric coil Floor overflow condensate pan) may cause water to overflow pan and seep onto flooring causing damage! Until condensate pan(s) are functioning (or are replaced), follow these procedures: •... -
Page 30: Troubleshooting (To Be Performed By Trained Service Providers Only), Page 2 Of 3
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY), PAGE 2 OF 3 CONDITION TROUBLESHOOTING Fans Emit Check that the case is aligned, level and plumb. Excessive Noise Check evaporator fans for cleanliness. Unplug/power off fan motors. Check motor shaft for bearing wear. Check that fan motors are securely mounted in brackets. - Page 31 TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY), PAGE 3 OF 3 CONDITION TROUBLESHOOTING Case Lights Are See TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL) Not Working section in manual for most common troubleshooting solutions. Check power. • If power is not supplied to the case, facility may have faulty power distribution. •...
-
Page 32: Condensing System
TROUBLESHOOTING (BY TRAINED SERVICE PROVIDERS ONLY) - CONDENSING SYSTEM CONDITION TROUBLESHOOTING Head Pressure Check that the condensing coil is not dirty or covered. Too High Check that condensing fans are working. Check that refrigerant is not overcharged. Perform sub-cooling check and verify that no contaminates are in system. Check that liquid line filter dryer is not plugged. -
Page 33: Troubleshooting (To Be Performed By Trained Service Providers Only)
TROUBLESHOOTING (BY TRAINED SERVICE PROVIDERS ONLY) - EVAPORATOR SYSTEM CONDITION TROUBLESHOOTING Low Suction Check if sight glass is flashing or showing low charge. Pressure Check that expansion valve (TXV) isn’t restricted. Check element charge. Check that liquid line or filter isn’t restricted. Check that refrigeration lines and/or hoses are not kinked on either high or low sides. -
Page 34: Serial Label Information & Location
TECHNICAL SERVICE page in this manual for • Serial labels are affixed at a wide range of places instructions on contacting Structural Concepts’ (on the header, near thermostat, at case rear, Technical Service Department. behind panels/toe-kicks, on electrical boxes, etc.). -
Page 35: Programmable Controller Information
PROGRAMMABLE CONTROLLER (SELECT, CLICK ON OR SCAN QR CODE FOR INFORMATION) Determine Which Programmable Controller Is On Your Case (Controllers That Are Commonly Used By Structural Concepts Are Shown Below). Your Particular Programmable Controller May Differ. Carel® ir33 Platform Carel® PJEZ Platform Dixell®... -
Page 36: Technical Service Contact Information / Warranty Information
STRUCTURAL CONCEPTS TECHNICAL SERVICE CONTACT INFORMATION & LIMITED WARRANTY YOU MUST HAVE THE FOLLOWING INFO AVAILABLE TECH SERVICE/WARRANTY CONTACT INFO: BEFORE CONTACTING STRUCTURAL CONCEPTS: 1 (800) 433-9490 / EXTENSION 1 SERIAL NO. / MODEL NO. / STORE NO. / STORE...
