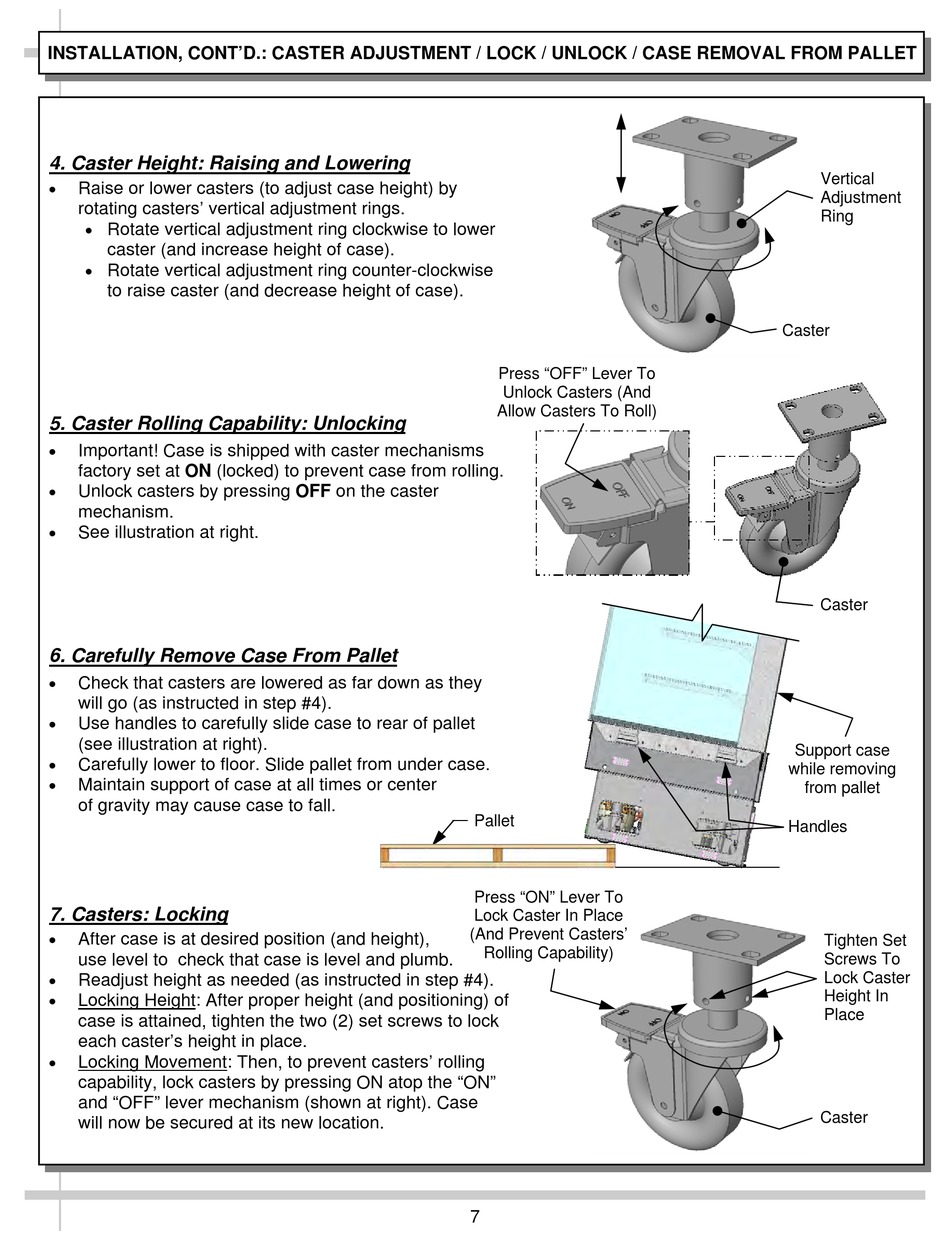

INSTALLATION, CONT'D.: CASTER ADJUSTMENT / LOCK / UNLOCK / CASE REMOVAL FROM PALLET

4. Caster Height: Raising and Lowering

Raise or lower casters (to adjust case height) by
rotating casters' vertical adjustment rings.

Rotate vertical adjustment ring clockwise to lower
caster (and increase height of case).

Rotate vertical adjustment ring counter-clockwise
to raise caster (and decrease height of case).
5. Caster Rolling Capability: Unlocking

Important! Case is shipped with caster mechanisms
factory set at ON (locked) to prevent case from rolling.

Unlock casters by pressing OFF on the caster
mechanism.

See illustration at right.
6. Carefully Remove Case From Pallet

Check that casters are lowered as far down as they
will go (as instructed in step #4).

Use handles to carefully slide case to rear of pallet
(see illustration at right).

Carefully lower to floor. Slide pallet from under case.

Maintain support of case at all times or center
of gravity may cause case to fall.
7. Casters: Locking

After case is at desired position (and height),
use level to check that case is level and plumb.

Readjust height as needed (as instructed in step #4).

Locking Height: After proper height (and positioning) of
case is attained, tighten the two (2) set screws to lock
each caster's height in place.

Locking Movement: Then, to prevent casters' rolling
capability, lock casters by pressing ON atop the "ON"
and "OFF" lever mechanism (shown at right). Case
will now be secured at its new location.
Press "OFF" Lever To
Unlock Casters (And
Allow Casters To Roll)
Pallet
Press "ON" Lever To
Lock Caster In Place
(And Prevent Casters'
Rolling Capability)
7
Vertical
Adjustment
Ring
Caster
Caster
Support case
while removing
from pallet
Handles
Tighten Set
Screws To
Lock Caster
Height In
Place
Caster
