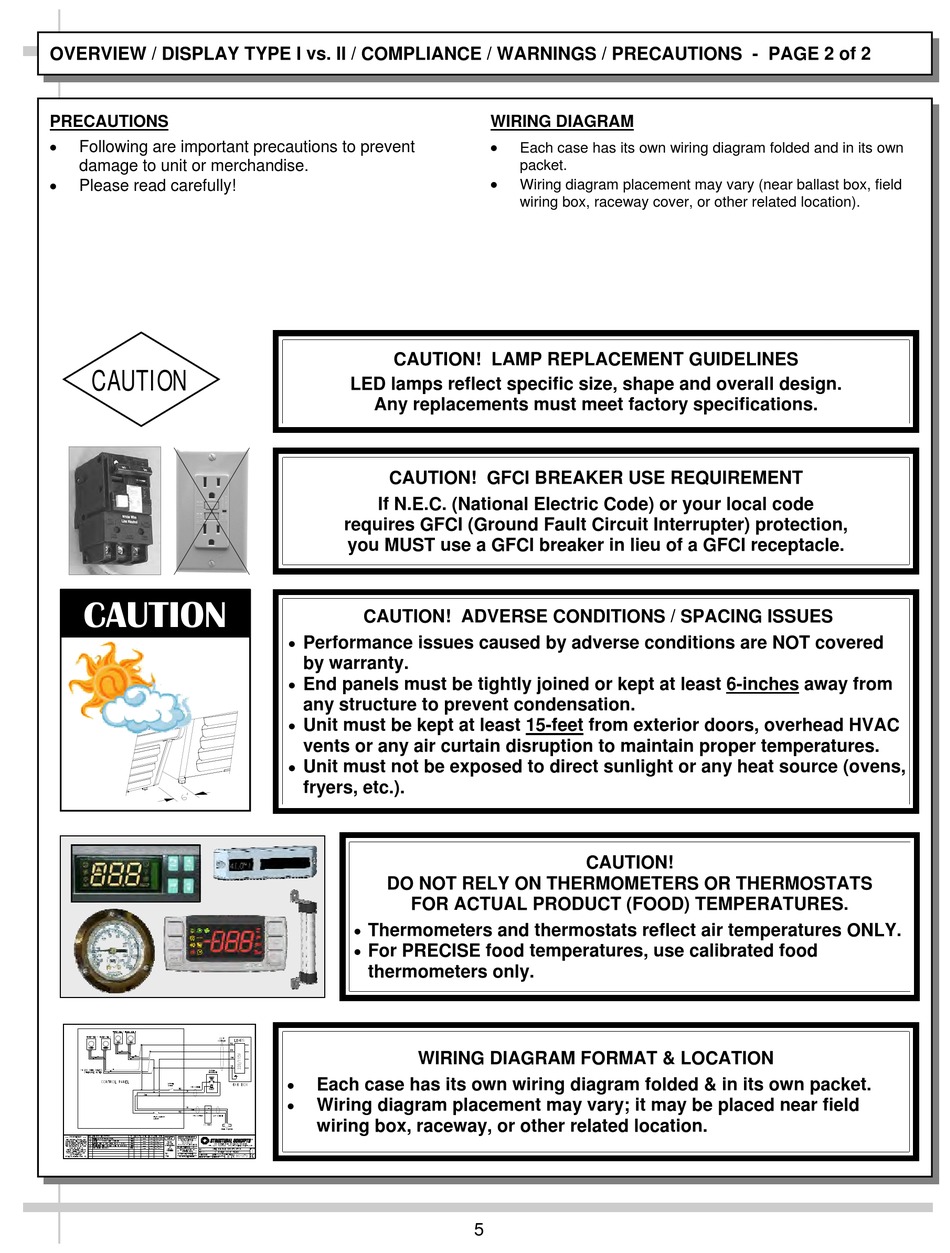

OVERVIEW / DISPLAY TYPE I vs. II / COMPLIANCE / WARNINGS / PRECAUTIONS - PAGE 2 of 2
PRECAUTIONS

Following are important precautions to prevent
damage to unit or merchandise.

Please read carefully!
CAUTION
CAUTION
CAUTION! LAMP REPLACEMENT GUIDELINES
LED lamps reflect specific size, shape and overall design.
Any replacements must meet factory specifications.
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES

Performance issues caused by adverse conditions are NOT covered
by warranty.

End panels must be tightly joined or kept at least 6-inches away from
any structure to prevent condensation.

Unit must be kept at least 15-feet from exterior doors, overhead HVAC
vents or any air curtain disruption to maintain proper temperatures.

Unit must not be exposed to direct sunlight or any heat source (ovens,
fryers, etc.).
DO NOT RELY ON THERMOMETERS OR THERMOSTATS
FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.

Thermometers and thermostats reflect air temperatures ONLY.

For PRECISE food temperatures, use calibrated food
thermometers only.
WIRING DIAGRAM FORMAT & LOCATION

Each case has its own wiring diagram folded & in its own packet.

Wiring diagram placement may vary; it may be placed near field
wiring box, raceway, or other related location.
WIRING DIAGRAM

Each case has its own wiring diagram folded and in its own
packet.

Wiring diagram placement may vary (near ballast box, field
wiring box, raceway cover, or other related location).
CAUTION!
5
