Specifications; Mechanical Dimensions - Danfoss VLT Decentral Drive FCD 302 Design Manual

Specifications

6 Specifications

6.1 Mechanical Dimensions

331.5
280
41 315
349.5

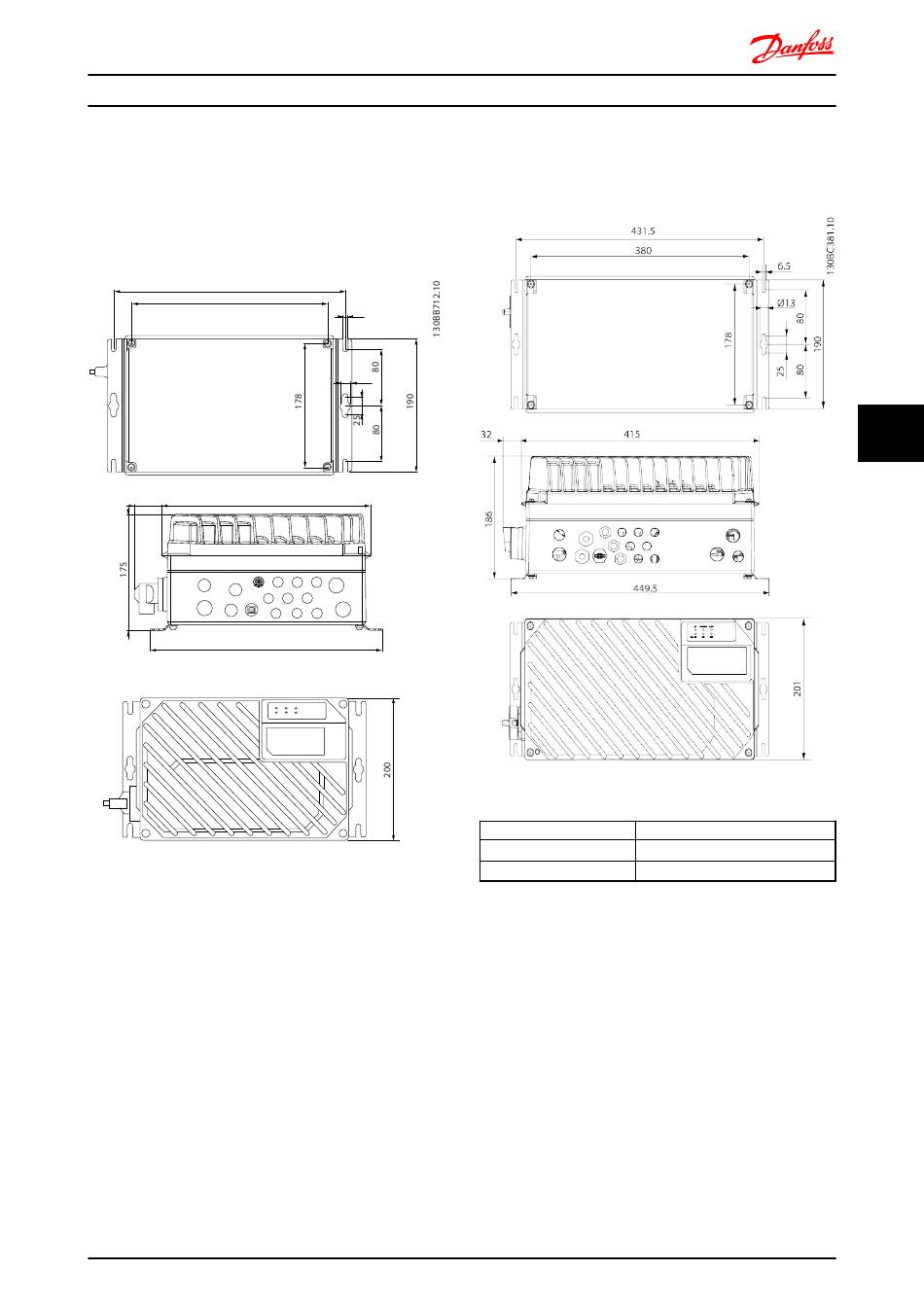

Illustration 6.1 Small Unit
®
VLT Decentral Drive FCD 302
6.5
Ø13
ON WARNING ALARM
Bus MS NS1 NS2
®
MG04H102 - VLT is a registered Danfoss trademark
Illustration 6.2 Large Unit
Motor side 1xM20, 1xM25
Control side
2xM20, 9xM16
Mains side 2xM25
Table 6.1 Legend
1)
Also used for 4xM12/6xM12 sensor/actuator sockets.
6
1)
81
6
