4.5 Control Structures

4.5.1 Control Structure in VVC
4 4
Ref.
+

_
P 7-20 Process feedback
1 source
P 7-22 Process feedback
2 source

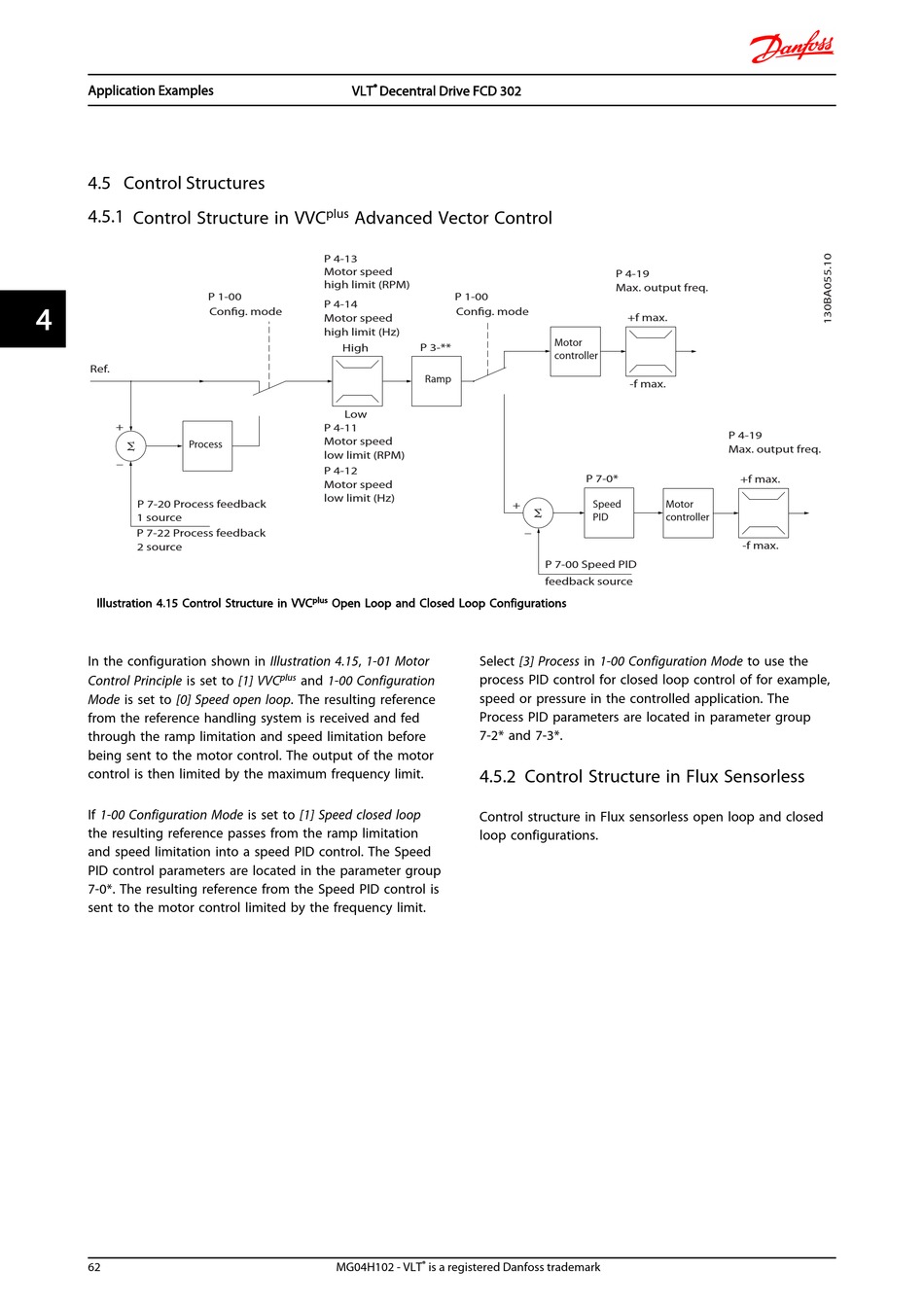

Illustration 4.15 Control Structure in VVC
In the configuration shown in Illustration 4.15, 1-01 Motor
Control Principle is set to [1] VVC
Mode is set to [0] Speed open loop. The resulting reference
from the reference handling system is received and fed
through the ramp limitation and speed limitation before
being sent to the motor control. The output of the motor
control is then limited by the maximum frequency limit.
If 1-00 Configuration Mode is set to [1] Speed closed loop
the resulting reference passes from the ramp limitation
and speed limitation into a speed PID control. The Speed
PID control parameters are located in the parameter group
7-0*. The resulting reference from the Speed PID control is
sent to the motor control limited by the frequency limit.
