Installation and Operating Instructions | idOil-D30
6.3.3.
Sensor naming and identification
Once the system settings have been set, the control unit switches to sensor identification
mode and requests a password as shown in the figure.

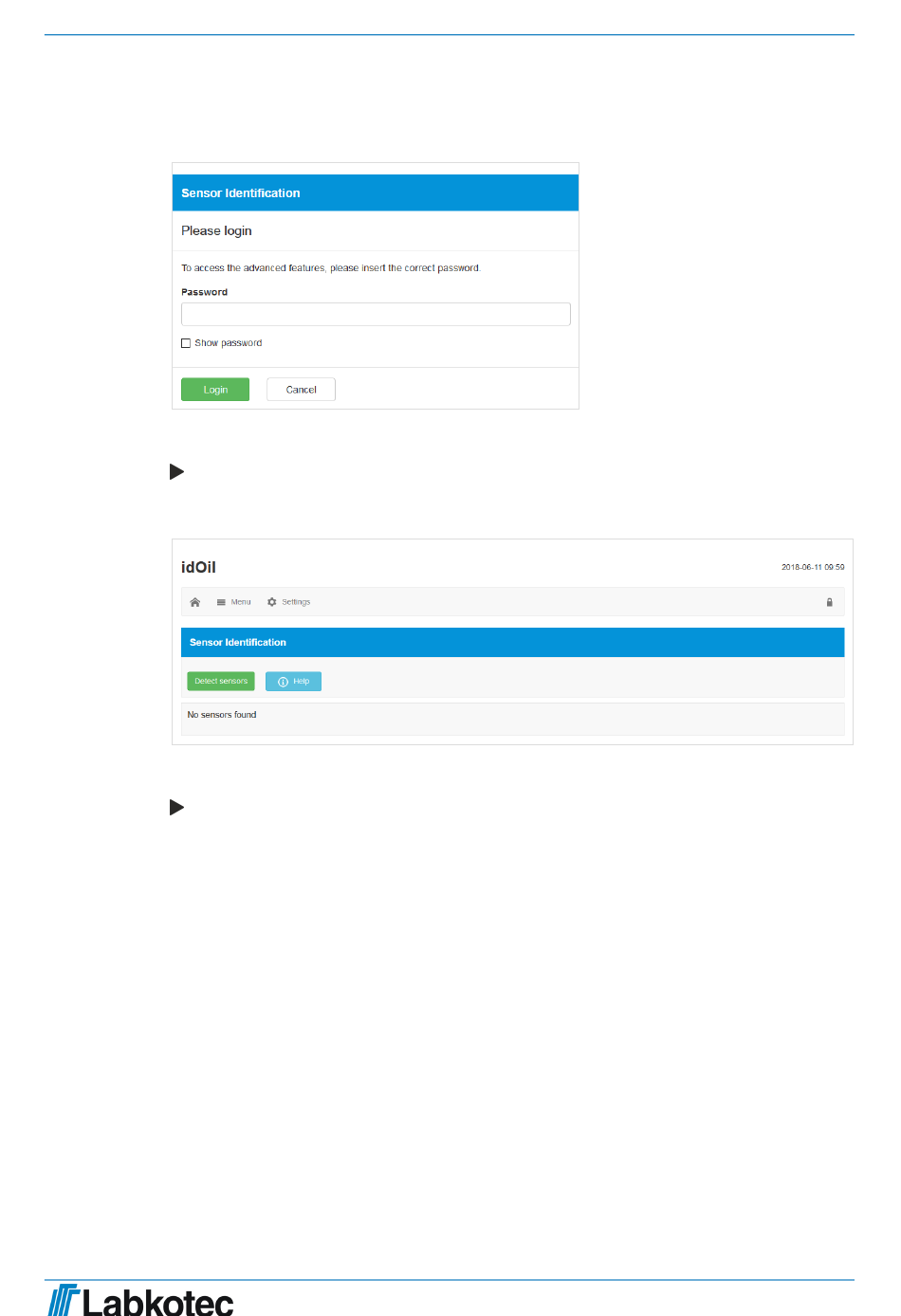

Figure 23. Sensor identification; enter password
Enter 1234 in the password field and press the Log in button.
If no sensors have been identified before, the view shown below is displayed.
Figure 24. Sensor identification; no sensors found.
Press the Detect sensors button. The control unit begins to detect connected sensors.
After detection, the message shown in the figure is displayed. In the example, three sensors
are connected.
22/51
DOC001602-EN-4
