Installation and Operating Instructions | idOil-D30
if the filter is dirty
if the automatic closure device is blocked
or if some other situation causes blockage in the discharge pipe

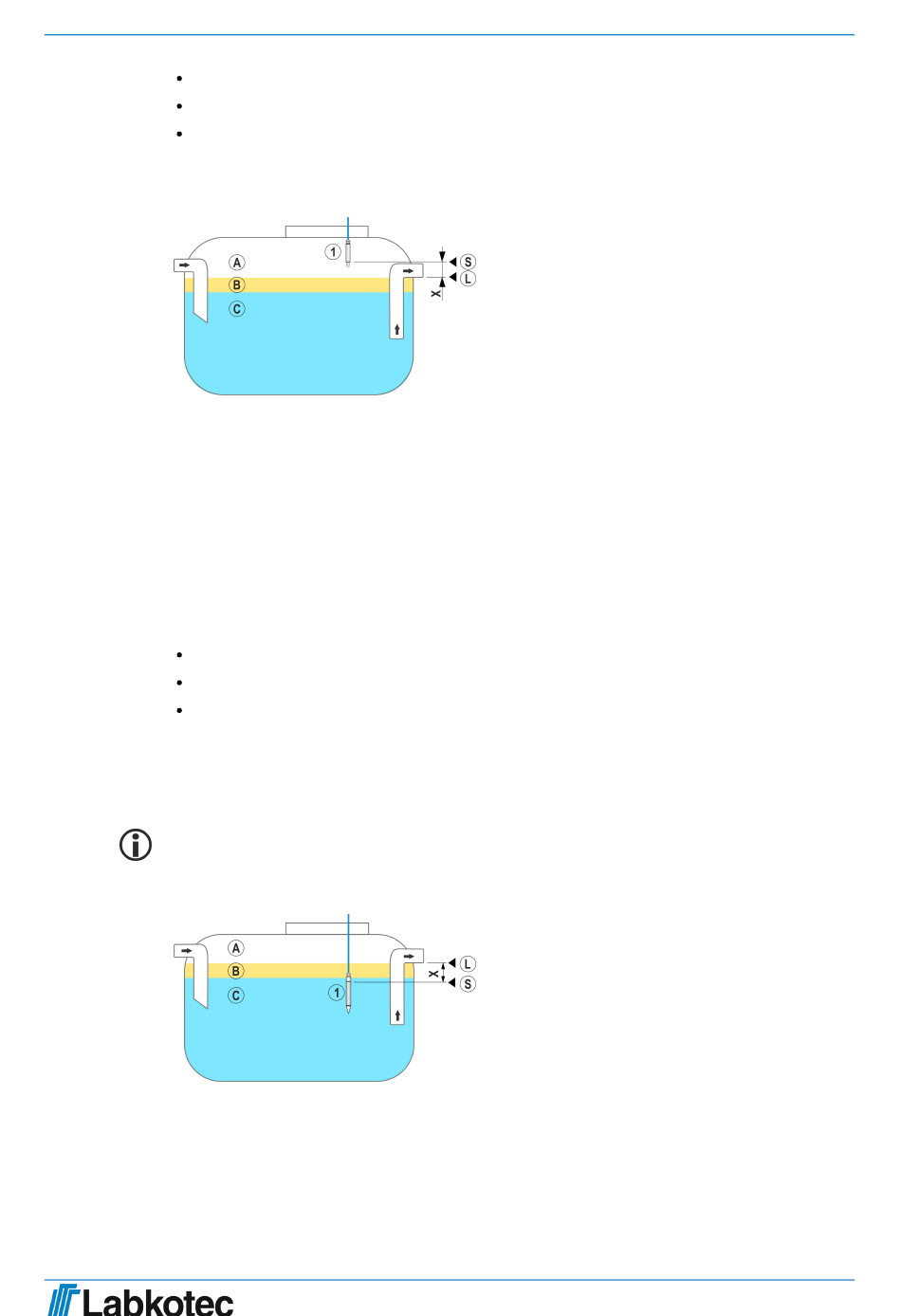

Figure 9. Installing the idOil-LIQ high liquid limit sensor
4.2.2.
Installing the idOil-OIL sensor
The sensor must be submerged at the desired installation depth when the liquid is at the
separator's standard liquid level (L).
The exact installation depth depends on the following:
separator type
separator shape
volume and height of the separator's oil compartment
The sensor must always be immersed in liquid. The alarm is activated when the lower
surface of the oil layer reaches the alarm switching point (S), i.e. when the sensor's
measuring electrode is covered in oil.
The sensor activates the alarm when it is in contact with air. For this
reason, the separator must always be filled with water after draining.
Figure 10. Installing the idOil-OIL sensor
1 idOil-LIQ high liquid level sensor
A Air
B Oil
C Water
L Standard liquid level
S Sensor switching point
Liquid alarm limit (maximum surface
X
level)
1 idOil-OIL oil sensor
A Air
B Oil
C Water
L Standard liquid level
S Alarm switching point
X Maximum allowed oil layer thickness
12/51
DOC001602-EN-4
