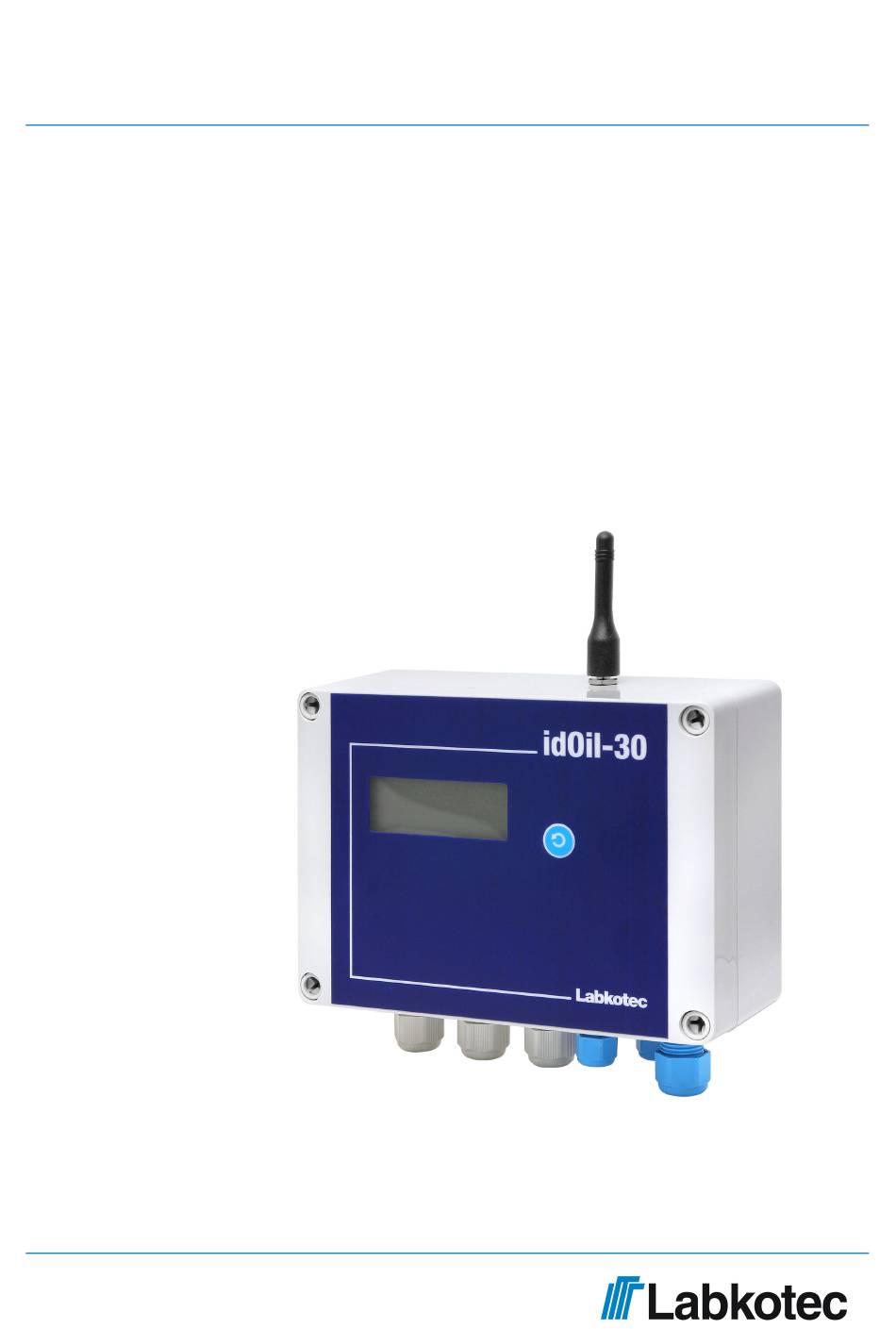

- Page 1 Installation and Operating Instructions ® idOil -30 3G ® idOil -30 Battery 3G Oil Separator Alarm Device SMS-messages - Commissioning and use DOC001696-EN-1 12/3/2018...
-
Page 2: Table Of Contents
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 2/19 Table of contents 1. General information about the manual ........... -
Page 3: General Information About The Manual
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 3/19 General information about the manual This manual is an integral part of the product. Please read the manual before using the product. Keep the manual available for the entire duration of the product’s life span. -
Page 4: Introduction
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 4/19 Introduction This manual describes how to operate the idOil-30 3G and idOil-30 Battery 3G units by means of text messages. Matters related to aspects such as the installation, connection, commissioning and electrical safety of the device are described in the actual installation and user instructions. -
Page 5: Commissioning
Commissioning The unit’s text message feature can be enabled by installing a SIM card. Install the SIM as described in the installation and user instructions of the idOil-30 3G or idOil-30 Battery 3G device. Connect power to the control unit. -
Page 6: Settings
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 6/19 Settings The settings of the idOil unit can be changed with the text message commands described in the following paragraphs. 4.1. Mobile numbers Up to five telephone numbers can be programmed in the device, to which the unit can then send alarm messages and from which it can receive settings and alarm status queries. -
Page 7: Deleting A Telephone Number (Deltel)
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 7/19 4.1.2. Deleting a telephone number (DELTEL) 1–5 telephone numbers can be deleted at a time. The telephone number deletion command is in the format: DELTEL 1 2 3 4 5... -
Page 8: Basic Settings After Commissioning
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 8/19 4.2. Basic settings after commissioning 4.2.1. Name of the device or location (NAME) This setting can also be entered via the idOil unit’s browser user interface. It is a good idea to set a unique name for the device or location so that alarm messages, for example, show which device the message is coming from. -
Page 9: Time (Clock)
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 9/19 Do the following to set unique names for sensors. Send the following text message command to the idOil unit’s phone number: DI 1: Separator 1. 2: Separator 1. 3: Separator 1. -
Page 10: Alarm Settings
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 10/19 4.3. Alarm settings 4.3.1. Timed message interval (TXD) The idOil unit can be timed to send information on system status and possible alarms to the recipients’ phone numbers. The user can define interval in days and the specific time of the message. -
Page 11: Settings For Battery-Operated Devices
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 11/19 Field legend Service alarm interval command. <interval> Service alarm interval in months. Accepted values: 0, 1, 3, 6 and 12. 0 means that the function is off. Example To set the device to provide service interval alarm every six months, follow the steps below. -
Page 12: Listening Interval (Li)
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 12/19 4.4.2. Listening interval (LI) A listening interval can be set for the device, according to which it will wake up from power saving mode, activate the 3G modem and read any possible setting messages and queries that have been sent to it. - Page 13 Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 13/19 VLIM 11.8 The response is: VLIM Pirkkala Myllyhaantie 11.8 V DOC001696-EN-1...
-
Page 14: Information Requested From The Unit
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 14/19 Information requested from the unit 5.1. Alarm information query (M) To request alarm information from the device, send the following message to the idOil device: The device responds as described below by sending the device name, sensor names and alarm or fault information. -
Page 15: Cellular Signal Strength Query (Csq)
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 15/19 Example 2: If there are no alarms active in the device, it responds with a SYSTEM OK message: STATUS Pirkkala Myllyhaantie SYSTEM OK 2018-05-31 13:05 5.2. Cellular signal strength query (CSQ) The device can also be requested to indicate the 3G modem’s signal strength. -
Page 16: Software Version Query (Ver)
16/19 5.4. Software version query (VER) A software version query can be sent to the idOil-30 3G and idOil-30 Battery 3G units in a text message. The version information helps Labkotec Oy’s maintenance department to resolve any possible problems. Send the following text message to the idOil unit: The unit’s response contains the device name (if set) and the software version:... -
Page 17: Messages Sent To The End User By The Unit
17/19 Messages sent to the end user by the unit The idOil-30 3G and idOil-30 Battery 3G devices send alarm messages to the recipient’s telephone number either when the alarm or fault status changes or as a response to an alarm query. -
Page 18: Low Operating Voltage Alarm
Installation and Operating Instructions | idOil-30 3G, idOil-30 Battery 3G 18/19 6.4. Low operating voltage alarm If the unit’s operating voltage falls below the set alarm limit, (see chapter "Setting the operating voltage alarm limit"), the device sends the following message: <device name>... -
Page 19: Troubleshooting
7.1. Device responses in error situations The idOil-30 3G and idOil-30 Battery 3G units send a text message response to any commands they receive. At times, the text message command sent by the user may be erroneous, in which case the unit responds with an error message to the user’s mobile phone.
