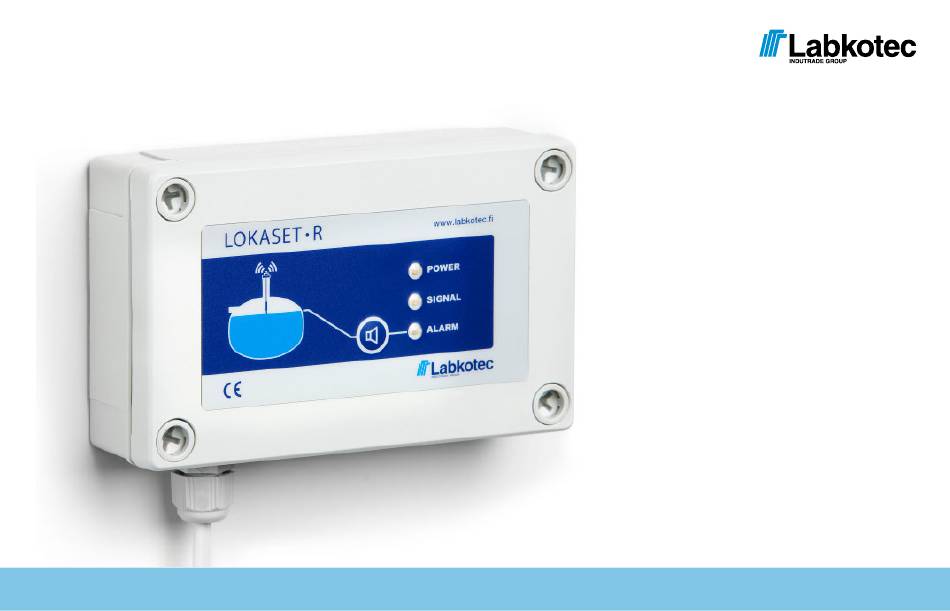

- Page 1 LOKASET R WIRELESS TANK FULL ALARM Installation and Operation Instructions D18067Ae...
- Page 2 LOKASET R | Installation and Operation Instructions | D18067Ae...
-
Page 3: Table Of Contents
Contents Introduction Operation Installation Operating Mode Service and Repairs Alarms Technical Specifi cations LOKASET R | Installation and Operation Instructions | D18067Ae... -
Page 4: Introduction
1. Lokaset R – Introduction Lokaset R is designed for use as a high level alarm in liquid tanks. It can be used for instance to indicate that a closed septic tank is full. Lokaset R is equipped with visual and acoustic alarm indicators as well as an alarm relay. -
Page 5: Operation
2. Lokaset R – Operation Lokaset R is designed for use as a tank full alarm for septic tanks. The principle of operation is that when the probe comes into contact with liquid, the transmitter transmits a signal to the Lokaset R central unit. -
Page 6: Installation
3. Lokaset R – Installation The Lokaset R central unit (Figure 1) is installed in a dry indoor location. A good installation location enables easy reading and control of the device. Do not cover the central unit as this may interfere with signal reception from the transmitter. - Page 7 If the cover cannot be properly secured, ensure that the O-ring is installed correctly. The Lokaset R transmitter is supplied with a 3 metre cable. The height of the probe may be adjusted using the provided cable tie. Make a loop in the probe cable. Secure the loop with the cable tie (11).
-
Page 8: Operating Mode
4. Lokaset R – Operating Mode The Lokaset R central unit has three indicator lights and one button. The green light (POWER) is the power indicator, the blue light (SIGNAL) the wireless transmission indicator and the red light (ALARM) the alarm indicator. The button is used for resetting the buzzer alarm. -
Page 9: Service And Repairs
If the battery ceases to discharge power, the central unit will signal an alarm. The easiest way to clean the Lokaset R probe is during tank emptying. The probe may be cleaned using running water. -
Page 10: Alarms
The Lokaset R central unit and transmitter form a device pair. 6. Lokaset R – Alarms Any subsequent spare part deliveries require re-pairing. Pair the devices by simultaneously pressing the alarm reset button and powering the central unit. All lights on the central Tank full alarm: unit will fl ash, indicating that the devices are being paired. -
Page 11: Technical Specifi Cations
7. Lokaset R – Technical Specifi cations Central Unit Transmitter Type/model Lokaset R Receiver Type/model Lokaset R Transmitter Manufacturer Labkotec Oy, Myllyhaantie 6, Manufacturer Labkotec Oy, Myllyhaantie 6, 33960 Pirkkala, Finland 33960 Pirkkala, Finland Supply voltage 230 VAC, 50/60 Hz, 1 VA... - Page 12 Labkotec Oy Myllyhaantie 6 33960 Pirkkala, Finland Tel. +358 29 006260 (exchange) Fax +358 29 0061260 info@labkotec.fi www.labkotec.fi We reserve the right to changes. © 2009 Labkotec Oy...
