- Page 1 LOKASET R WIRELESS TANK FULL ALARM Installation and Operation Instructions D18067Be...
-
Page 2: Table Of Contents
Contents Introduction Operation Installation Operating Mode Service and Repairs Alarms Technical Specifi cations LOKASET R | Installation and Operation Instructions | D18067Be... -
Page 3: Introduction
Lokaset R can be installed in new and existing tanks without excavation works. Similarly to many Labkotec products, also Lokaset R can be con- nected to the versatile and easy-to-use LabkoNet system enab- ling automated tank emptying. -
Page 4: Operation
2. Lokaset R – Operation Lokaset R is designed for use as a tank full alarm for septic tanks. The principle of operation is that when the probe comes into contact with liquid, the transmitter transmits a signal to the Lokaset R central unit. -
Page 5: Installation

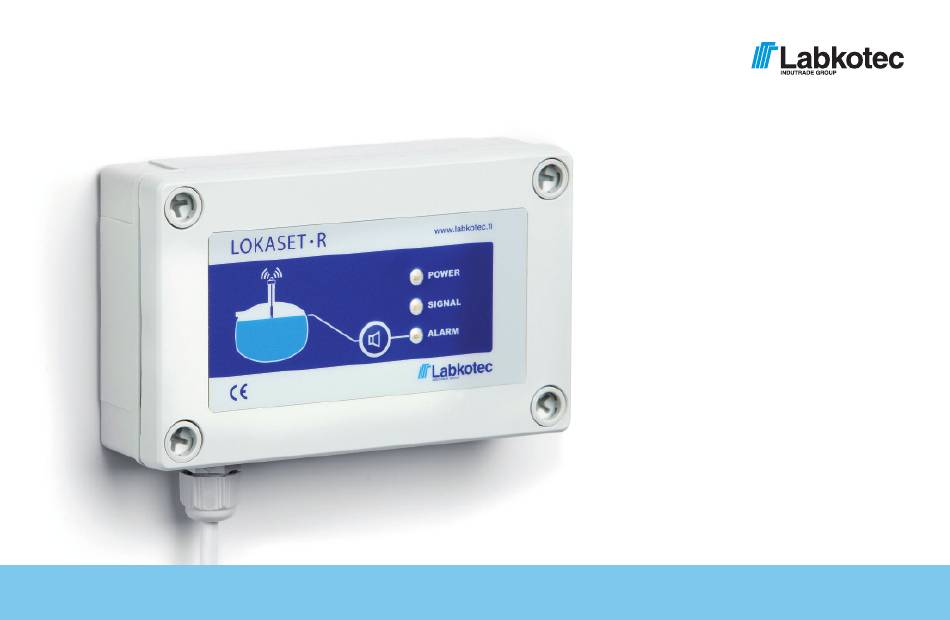

3. Lokaset R – Installation The Lokaset R central unit (Figure 1) is installed in a dry indoor location. A good installation location enables easy reading and control of the device. Do not cover the central unit as this may interfere with signal reception from the transmitter. - Page 6 With the help of a jumper on the transmitter’s circuit card you can choose how often the signal is sent from the transmitter to the central unit. When the jumper is in place, the signal is sent every 30 seconds and when it is not in place or only connected to one terminal block, the signal is sent every 10 minutes.
-
Page 7: Operating Mode
4. Lokaset R - Operating Mode The Lokaset R central unit has three indicator lights and one but- ton. The green light (POWER) is the power indicator, the blue light (SIGNAL) the wireless transmission indicator and the red light (ALARM) the alarm indicator. The button is used for resetting the buzzer alarm. -
Page 8: Service And Repairs
5. Lokaset R - Maintenance and Repairs The best way to maintain proper operation of the Lokaset R device is to ensure that the probe is clean and that the radio communication between the transmitter and the central unit is unobstructed. -
Page 9: Alarms
Pairing the central unit and the transmitter: 6. Lokaset R – Alarms The Lokaset R central unit and transmitter form a device pair. Any subsequent spare part deliveries require re-pairing. Tank full alarm: Pair the devices by simultaneously pressing the alarm reset but- Red light (1) is on (continuous buzzer sound) ton and powering the central unit. -
Page 10: Technical Specifi Cations
7. Lokaset R - Technical Specifi cations Central Unit Transmitter Type/model Lokaset R Receiver Type/model Lokaset R Transmitter Manufacturer Labkotec Oy, Myllyhaantie 6, Manufacturer Labkotec Oy, Myllyhaantie 6, 33960 Pirkkala, Finland 33960 Pirkkala, Finland Supply voltage 230 VAC, 50/60 Hz, 1 VA Supply voltage... - Page 11 LOKASET R | Installation and Operation Instructions | D18067Be...
- Page 12 Labkotec Oy Myllyhaantie 6 33960 Pirkkala, Finland Tel. +358 29 006260 (exchange) Fax +358 29 0061260 info@labkotec.fi www.labkotec.fi We reserve the right to changes. © 2009 Labkotec Oy...
