Labkotec SET-2000 Oil/Sludge Installation And Operating Instructions Manual
Alarm device for oil separators with set/dm3al and set/s2 sensors
Hide thumbs
Also See for SET-2000 Oil/Sludge:
- Lnstallation and operating lnstructions (14 pages) ,
- Installation and operating instructions manual (15 pages)
Table of Contents
Advertisement
with SET/DM3AL and SET/S2 sensors
Installation and Operating Instructions
Copyright © 2019 Labkotec Oy
Labkotec Oy
Myllyhaantie 6
FI-33960 PIRKKALA
FINLAND
Tel:
+ 358 29 006 260
Fax:
+ 358 29 006 1260
Internet:
www.labkotec.fi
SET-2000 Oil/Sludge
110 VAC supply voltage
Alarm Device for Oil Separators
We reserve the right for changes without notice
12.8.2019
D15645AE-2
1/15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Labkotec SET-2000 Oil/Sludge
Summary of Contents for Labkotec SET-2000 Oil/Sludge
- Page 1 + 358 29 006 1260 12.8.2019 Internet: www.labkotec.fi D15645AE-2 1/15 SET-2000 Oil/Sludge 110 VAC supply voltage Alarm Device for Oil Separators with SET/DM3AL and SET/S2 sensors Installation and Operating Instructions Copyright © 2019 Labkotec Oy We reserve the right for changes without notice...
-
Page 2: Table Of Contents
Installation and Operating Instructions TABLE OF CONTENTS 1 GENERAL ......................3 2 INSTALLATION ....................4 2.1 SET-2000 Oil/Sludge Control Unit ............... 4 2.2 Sensor installation ..................5 2.3 Junction box ....................5 3 OPERATION AND SETTINGS ................6 3.1 Operation ..................... 6 3.2 Factory settings .................... -
Page 3: General

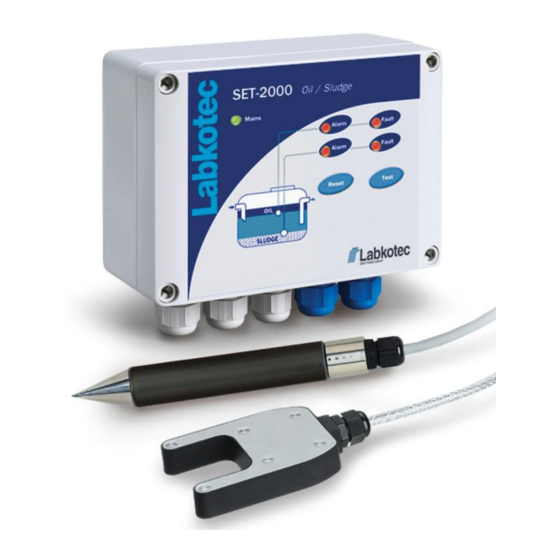

Installation and Operating Instructions GENERAL SET-2000 Oil/Sludge is an alarm device for monitoring the thickness of the oil layer accumulating in the oil separator and the accumulation of sludge or sand layer on the bottom of separator. Depending on the order, the delivery consists of SET-2000 Oil/Sludge control unit, SET/DM3AL sensor, SET/S2 sensor, junction box and installation supplies. -
Page 4: Installation
Installation and Operating Instructions INSTALLATION SET-2000 Oil/Sludge Control Unit The SET-2000 Oil/Sludge control unit can be wall-mounted. The mounting holes are located in the base plate of the enclosure, beneath the mounting holes of the front cover. The connectors of the external conductors are isolated by separating plates. -
Page 5: Sensor Installation
Make sure, that the junction is closed properly. Copyright © 2019 Labkotec Oy 5/15 We reserve the right for changes without notice... -
Page 6: Operation And Settings
Installation and Operating Instructions OPERATION AND SETTINGS SET-2000 Oil/Sludge is initialized at the factory. The operation of the device should always be checked after the installation. The operation should also be checked always when emptying the separator or at least once every six months. - Page 7 TEST FUNCTION Test function provides an artificial alarm, which can be used to test the function of the SET-2000 Oil/Sludge and the function of other equipment, which is connected to SET-2000 via its relays. Attention ! Before pressing Test button, make sure that the change of...
-
Page 8: Factory Settings
Installation and Operating Instructions Factory settings If the operation or SET-2000 Oil/Sludge is not as described in the previous chapter, check that the device settings are as in figure 4. Change the settings according to the following instructions if needed. -
Page 9: Trouble-Shooting
3.4. Connect the wire/wires back to respective connector(s). If the problems can not be solved with the above instructions, please contact Labkotec Oy’s local distributor or Labkotec Oy’s service. Attention ! If the sensor is located in an explosive atmosphere, the multimeter must be Exi-approved ! Copyright ©... -
Page 10: Repair And Service
In case of queries, please contact Labkotec Oy’s service. SAFETY INSTRUCTIONS SET-2000 Oil/Sludge must not be installed in potentially explosive atmosphere. Sensors connected to it may be installed in zone 0, 1 or 2 potentially explosive atmosphere. In case of installations in explosive atmospheres the national requirements and relevant standards as IEC/EN 60079-25 and/or IEC/EN 60079-14 must be taken into account. -
Page 11: Technical Data
2,4 µF 1,0 mH 1,9 µF 2,0 mH 1,6 µF 5,0 mH = 116,5 µH/Ω (IIC) and 466 µH/Ω (IIB) Table 2. SET-2000 Oil/Sludge electrical parameters Figure 6. Dimensional drawings of SET/DM3AL and SET/S2 sensors Copyright © 2019 Labkotec Oy... -
Page 12: Declaration Of Conformity
DECLARATION OF CONFORMITY... -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY... -
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY...
