A single IBUFDS_GTE2 module is used to feed the reference clock to the GTPE2_COMMON
PLL. The IBUFDS_GTE2 is included in the Shared Logic level of hierarchy and so can be
included either in the example design or alternatively inside the core. See
Figure 6-12 respectively for the shared logic to be included in the example design or in the
core.
X-Ref Target - Figure 6-11
refclk_p
refclk_n
IBUFDS_GTE2
Shareable logic
clk156_out

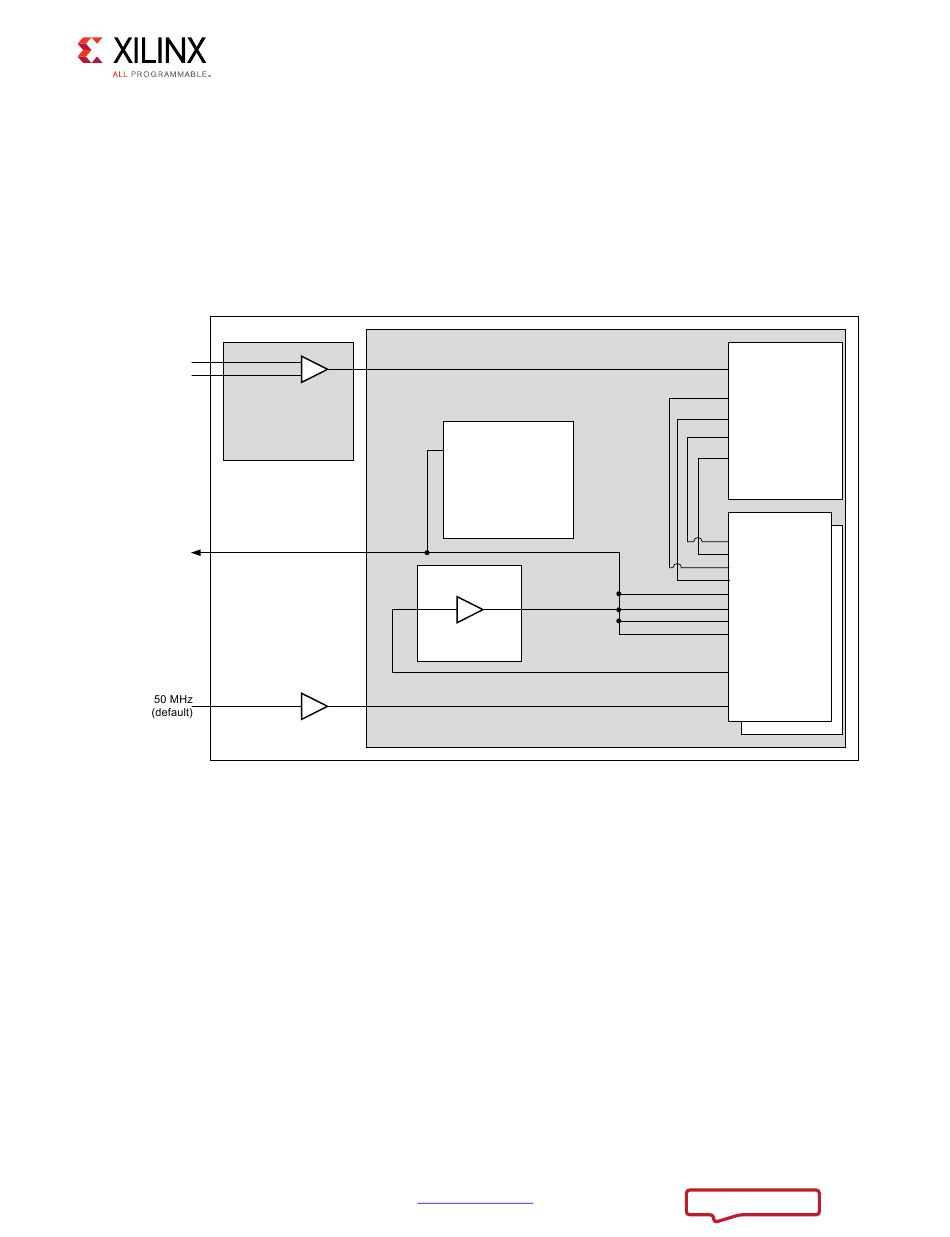

Figure 6‐11: Clock Scheme for Internal Client-Side Interface 7 Series FPGA GTP Transceiver
