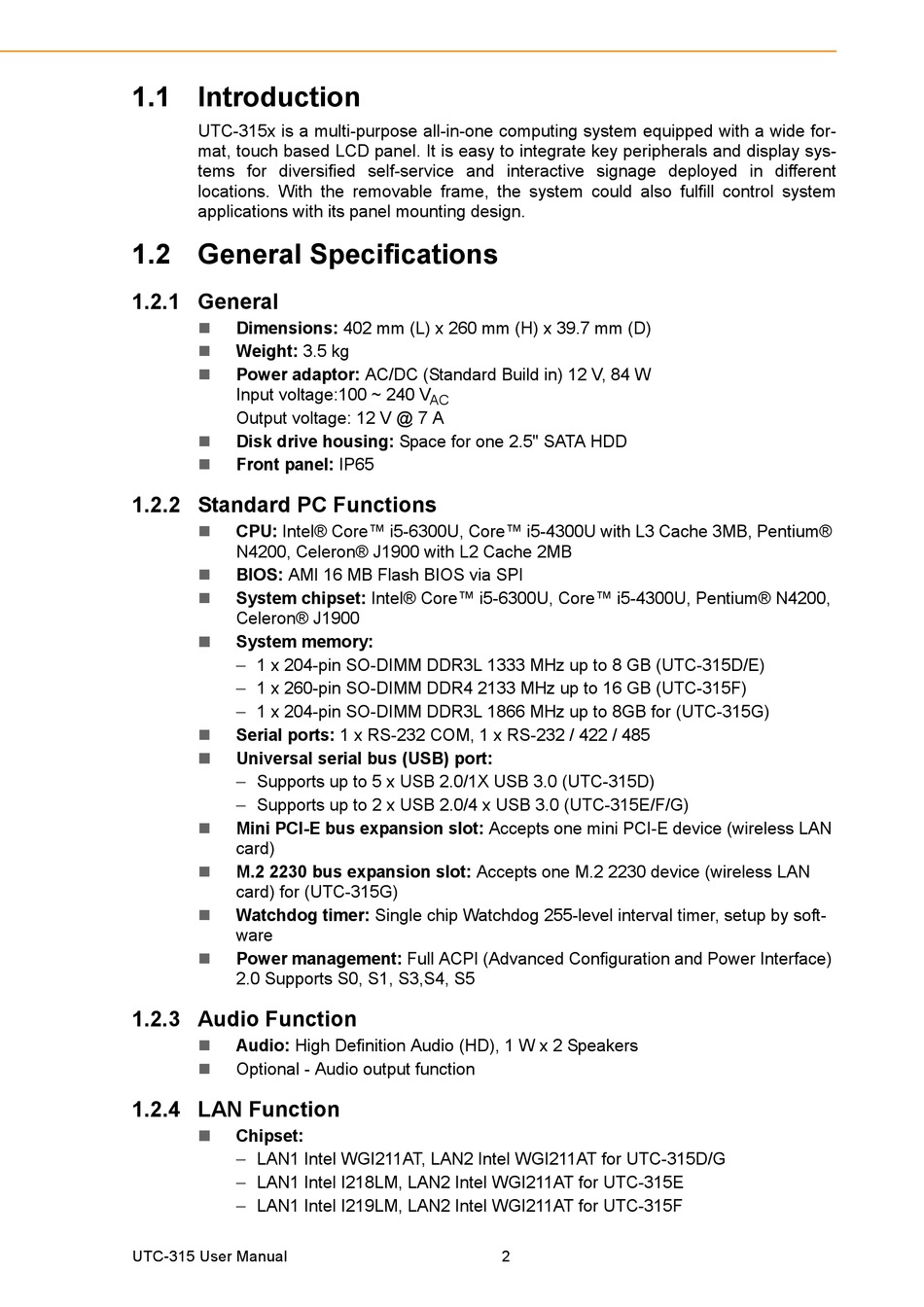

1.1 Introduction

UTC-315x is a multi-purpose all-in-one computing system equipped with a wide for-
mat, touch based LCD panel. It is easy to integrate key peripherals and display sys-
tems for diversified self-service and interactive signage deployed in different
locations. With the removable frame, the system could also fulfill control system
applications with its panel mounting design.

1.2 General Specifications

1.2.1 General

 Dimensions: 402 mm (L) x 260 mm (H) x 39.7 mm (D)
 Weight: 3.5 kg
 Power adaptor: AC/DC (Standard Build in) 12 V, 84 W
Input voltage:100 ~ 240 V
Output voltage: 12 V @ 7 A
 Disk drive housing: Space for one 2.5" SATA HDD
 Front panel: IP65

1.2.2 Standard PC Functions

 CPU: Intel® Core™ i5-6300U, Core™ i5-4300U with L3 Cache 3MB, Pentium®
N4200, Celeron® J1900 with L2 Cache 2MB
 BIOS: AMI 16 MB Flash BIOS via SPI
 System chipset: Intel® Core™ i5-6300U, Core™ i5-4300U, Pentium® N4200,
Celeron® J1900
 System memory:
– 1 x 204-pin SO-DIMM DDR3L 1333 MHz up to 8 GB (UTC-315D/E)
– 1 x 260-pin SO-DIMM DDR4 2133 MHz up to 16 GB (UTC-315F)
– 1 x 204-pin SO-DIMM DDR3L 1866 MHz up to 8GB for (UTC-315G)
 Serial ports: 1 x RS-232 COM, 1 x RS-232 / 422 / 485
 Universal serial bus (USB) port:
– Supports up to 5 x USB 2.0/1X USB 3.0 (UTC-315D)
– Supports up to 2 x USB 2.0/4 x USB 3.0 (UTC-315E/F/G)
 Mini PCI-E bus expansion slot: Accepts one mini PCI-E device (wireless LAN
card)
 M.2 2230 bus expansion slot: Accepts one M.2 2230 device (wireless LAN
card) for (UTC-315G)
 Watchdog timer: Single chip Watchdog 255-level interval timer, setup by soft-
ware
 Power management: Full ACPI (Advanced Configuration and Power Interface)
2.0 Supports S0, S1, S3,S4, S5

1.2.3 Audio Function

 Audio: High Definition Audio (HD), 1 W x 2 Speakers
 Optional - Audio output function

1.2.4 LAN Function

 Chipset:
– LAN1 Intel WGI211AT, LAN2 Intel WGI211AT for UTC-315D/G
– LAN1 Intel I218LM, LAN2 Intel WGI211AT for UTC-315E
– LAN1 Intel I219LM, LAN2 Intel WGI211AT for UTC-315F
