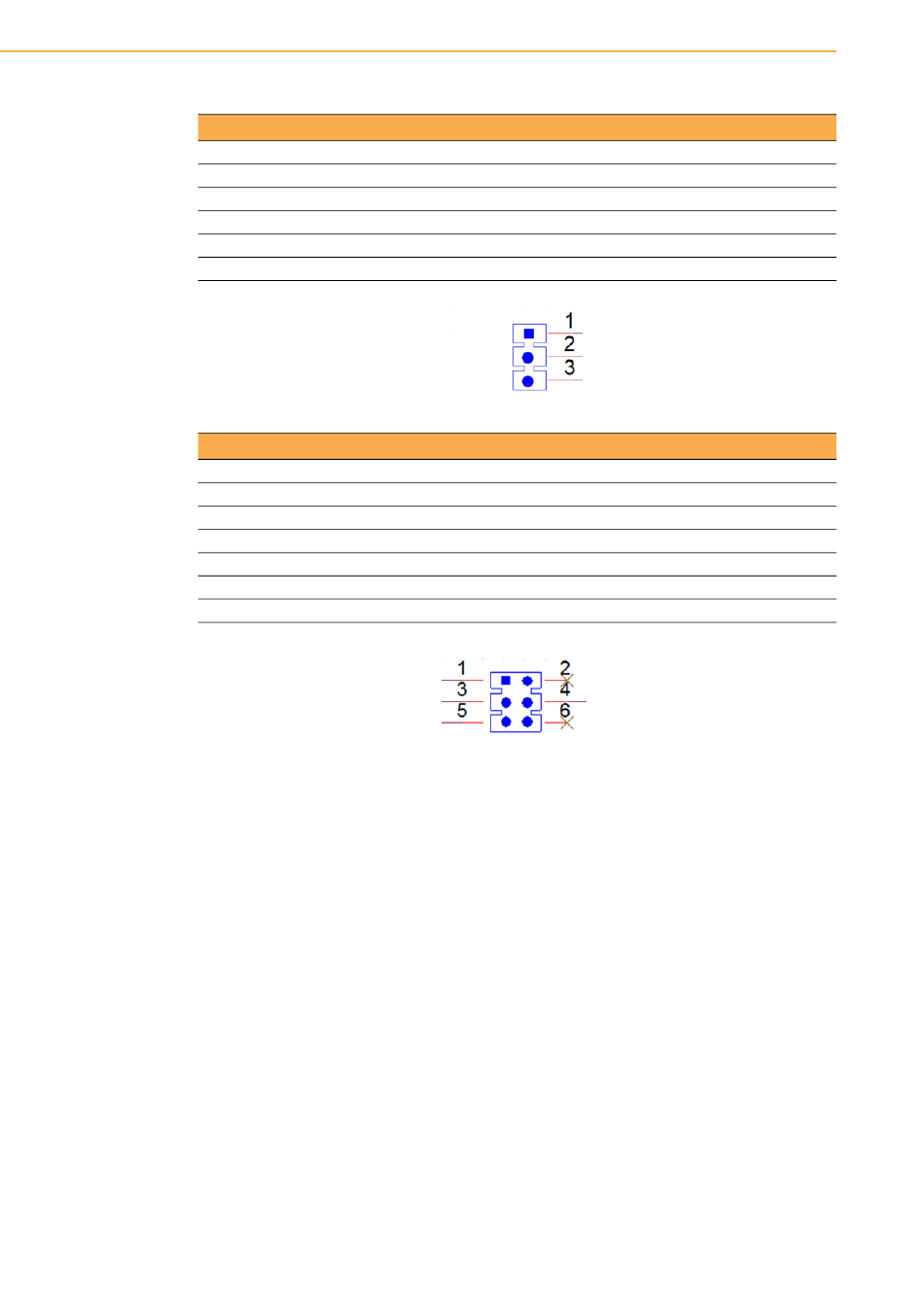

Table 4.8: Jcash1: Cash Drawer Power Sel - Advantech UTC-315 Series User Manual

Table 4.8: JCASH1: CASH DRAWER POWER SEL

Part Number
Footprint
Description
Setting
(1-2)
(2-3)*
Table 4.9: CN10: CSAFE Power
Part Number
Footprint
Description
Setting
(1-3) *
(3-4)
(3-5)
UTC-315 User Manual
1653003100
HD_3x1P_100_D
PIN HEADER 3x1P 2.54mm 180D(M) DIP 1130-000-03S
Function
12V
24V
1653003201
HD_3x2P_79_D
PIN HEADER 3x2P 2.0mm 180D(M) DIP 21N22050
Function
CSAFE output +5V
CSAFE output +9V
CSAFE output +12V
26
