Anybus Configuration Manager (MAPS)
5.6.2 Viewers
The data in each viewer is updated in real time when the gateway is connected and active. If the
gateway is disconnected, the last received data will remain in the viewer until cleared. The
viewers can be rearranged in the window by clicking and dragging.
Three viewers are used to monitor communications: Console, KNX, and Modbus Master. Each of
these viewers has the following common options:
Clear
Enable
Autoscroll
Console Viewer
This viewer displays general information about the gateway and the connection status.

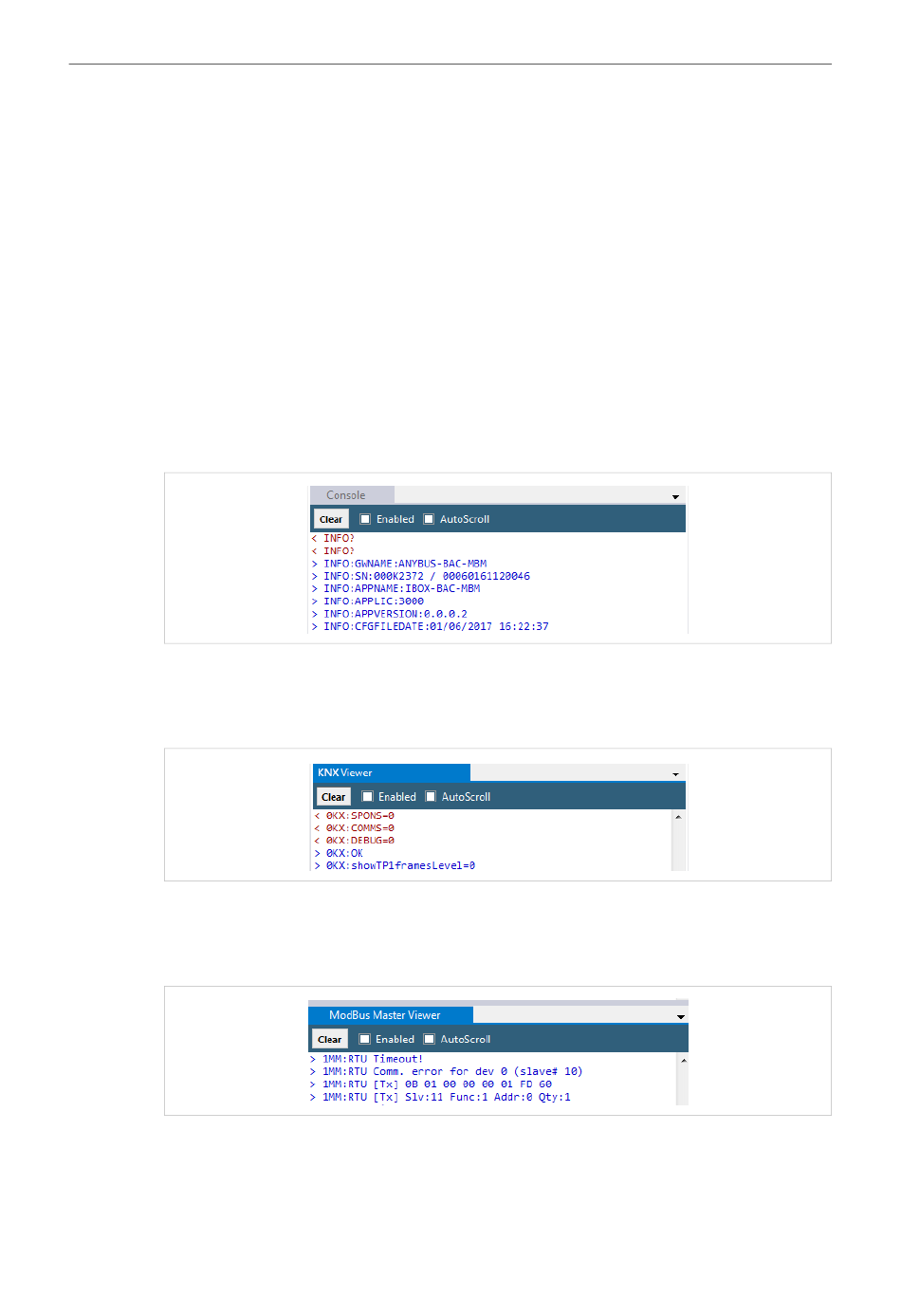

Fig. 22 Console viewer
KNX Viewer
This viewer displays frames related to KNX communication.
Fig. 23 KNX Server viewer
Modbus Master Viewer
This viewer displays frames related to Modbus communication.
Fig. 24 Modbus Master viewer
Modbus to KNX Gateway User Manual
Clears all data from the viewer.
Enables/disables the viewer. This can be useful to reduce communication workload.
To enable/disable all viewers simultaneously, use the ToolBox.
Enables automatic scrolling of the viewer window as new data is added.
