Anybus Configuration Manager (MAPS)
5.3.2 KNX
This section contains settings related to KNX communication.

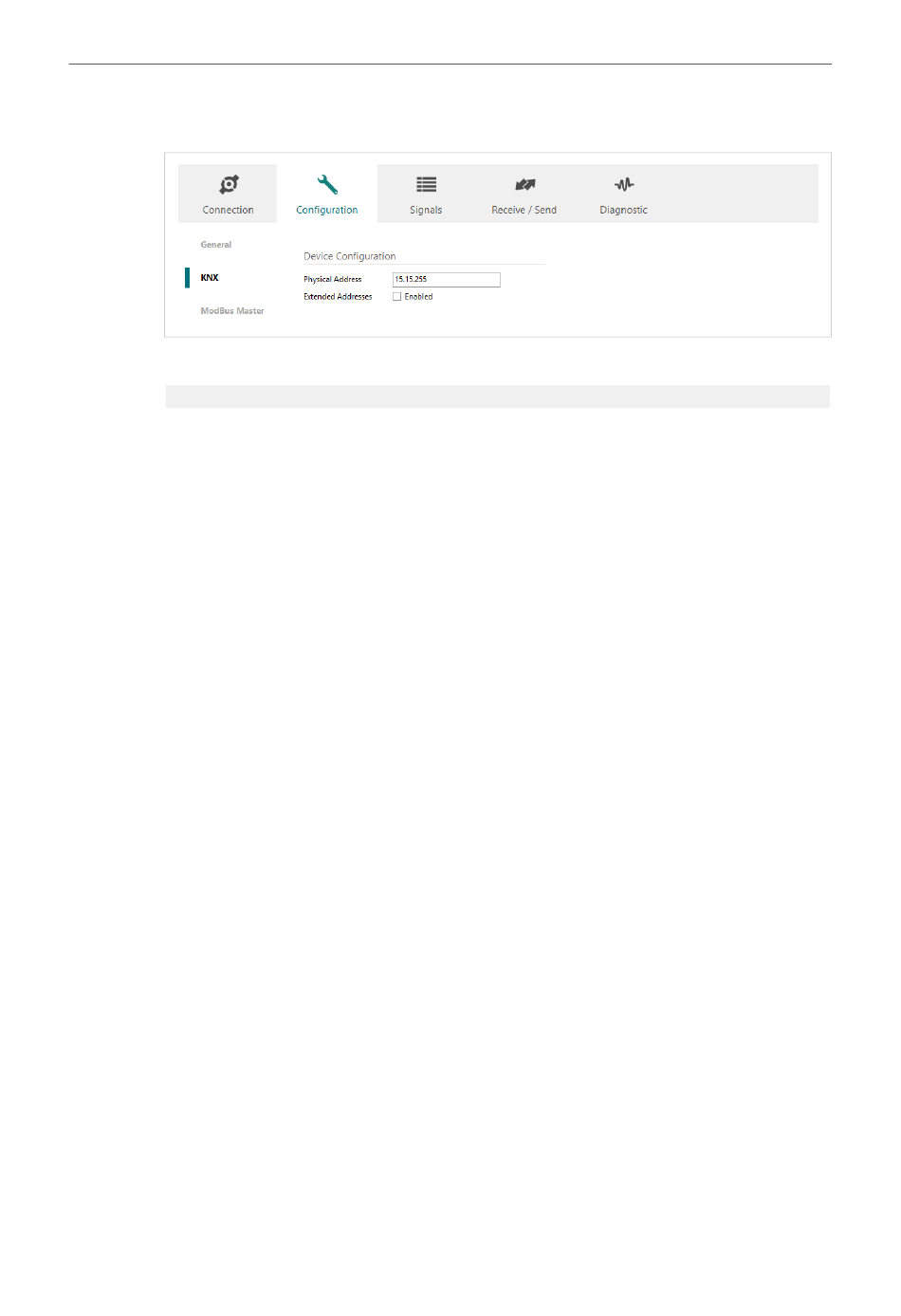

Fig. 11 KNX configuration
Device Configuration
Physical Address
Extended Address
Modbus to KNX Gateway User Manual
Sets the KNX Physical Address (Individual Address) of the gateway. This is a unique
identifier for the gateway inside a single KNX TP-1 segment.
The maximum value is 15.15.255.
Enables the use of KNX Extended Addresses. By enabling this setting, the range of KNX
group addresses available increases from the standard 15/7/255 to 31/7/255.
Do not enable this function unless required by the integrator.
