Installation
4
Installation
4.1
Overview

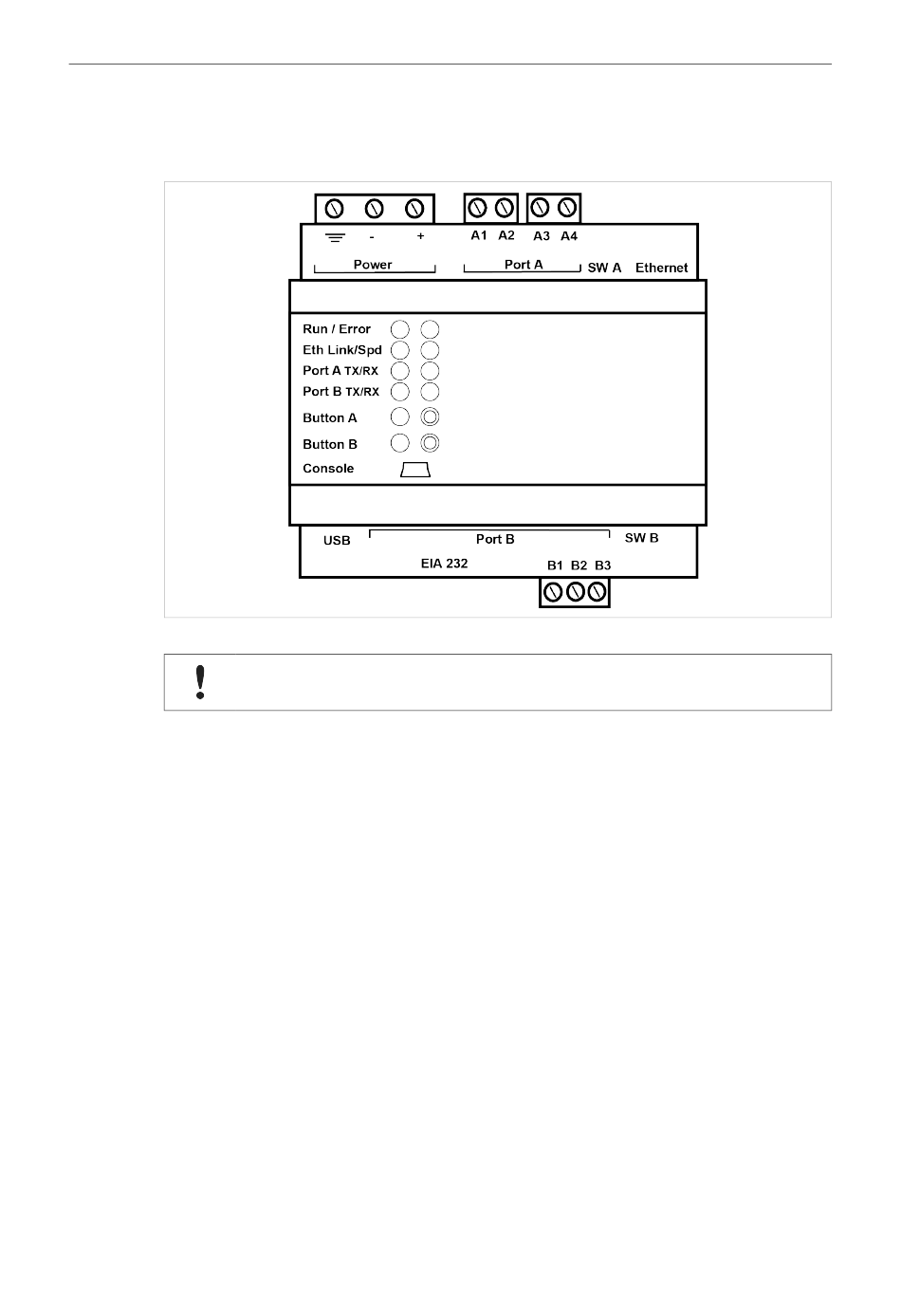

Fig. 1
Front panel
Installation Procedure
These are the main steps when installing and setting up the Modbus to KNX Gateway. Each step
will be described in the following sections of this document.
1.
Mount the gateway on a DIN rail or using the screw mounting clips.
2.
Connect the KNX and Modbus serial and/or Ethernet interfaces.
3.
Connect a computer for configuration to the Console USB port or to the Ethernet network.
4.
Connect the power supply and power on the unit.
5.
Configure the unit using Anybus Configuration Manager (MAPS).
Modbus to KNX Gateway User Manual
Read the
Safety
before starting installation.
9 (32)
SCM-1202-050 1.2 en-US
