Anybus Configuration Manager (MAPS)
RTU Devices Configuration
Different device and node configuration options are available depending on if Modbus TCP or
Modbus RTU communication is selected.
Modbus RTU
The following parameters must be configured for each RTU node:
Baudrate
Data type
Time InterFrame
Add Device(s)

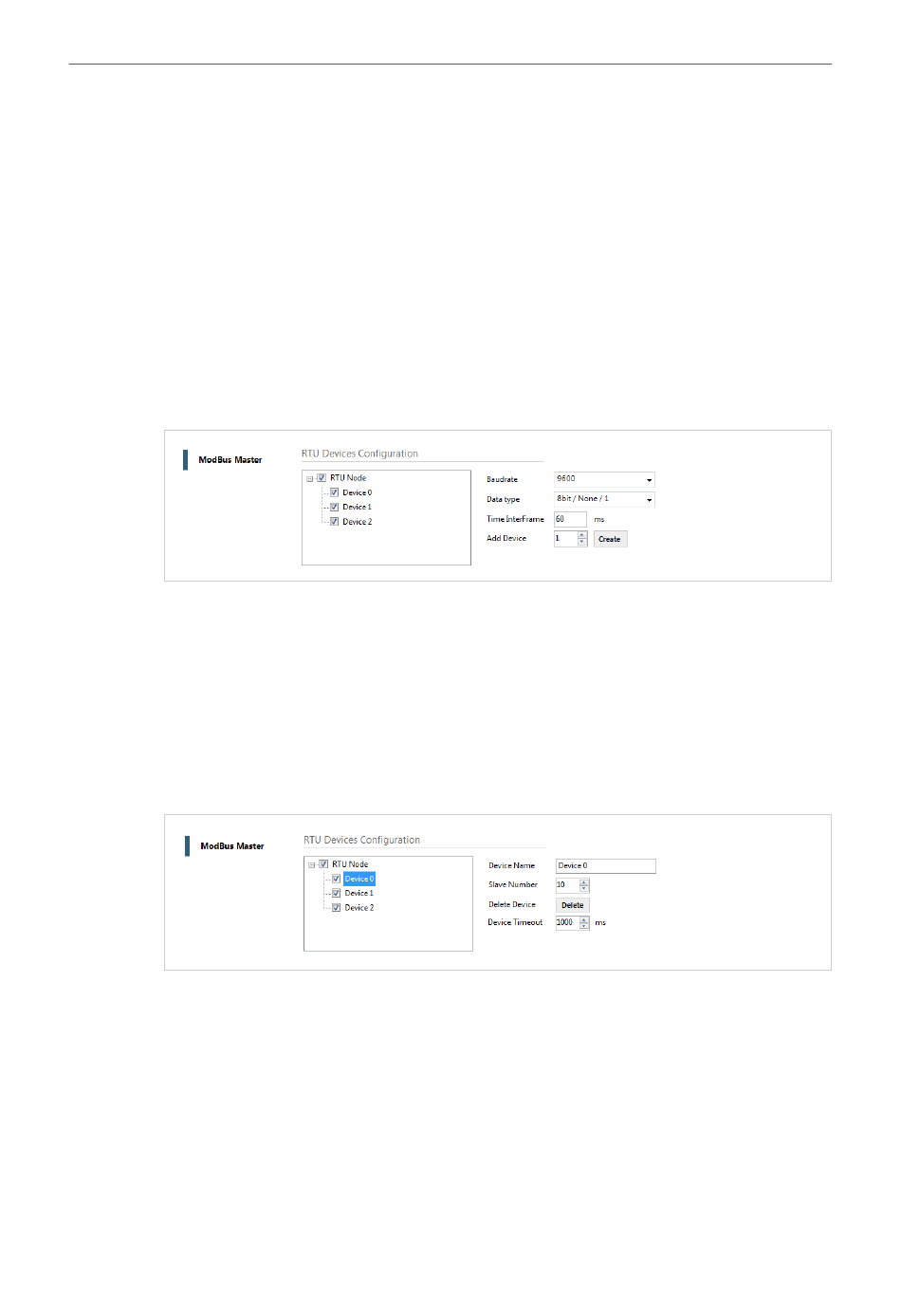

Fig. 13 Modbus RTU device configuration
For each slave device, the user can configure the following parameters:
Device Name
Slave Number
Delete Device
Device Timeout
Fig. 14 Modbus RTU node configuration
Modbus to KNX Gateway User Manual
The communication speed for RTU communication.
Allowed values: 2400 to 115200 bps
Data bits (8 only) / Parity (Odd/Even/None) / Stop bits (1 or 2)
Minimum time between the received frame and sent frame.
Allowed values: 0 to 2000 ms
Creates new devices to be included in the configuration.
Descriptive name for the Modbus RTU slave device
Modbus slave address
Click on Delete to delete the selected device.
Time to wait before sending a timeout message if there is no response from the slave
device.
