Connection Tab

Anybus Configuration Manager (MAPS) can communicate with the gateway either over an
Ethernet network or directly via the Console USB port. Projects can be created when the
gateway is offline and then downloaded to the unit once a connection has been established.
5.2.1 Connection Mode
IP
When this option is selected the computer used for configuration must be connected to the
same Ethernet network subnet as the gateway. DHCP addressing is used as default.
A password is required for IP connection. The default password is "admin".
See Configuration Tab, p. 18

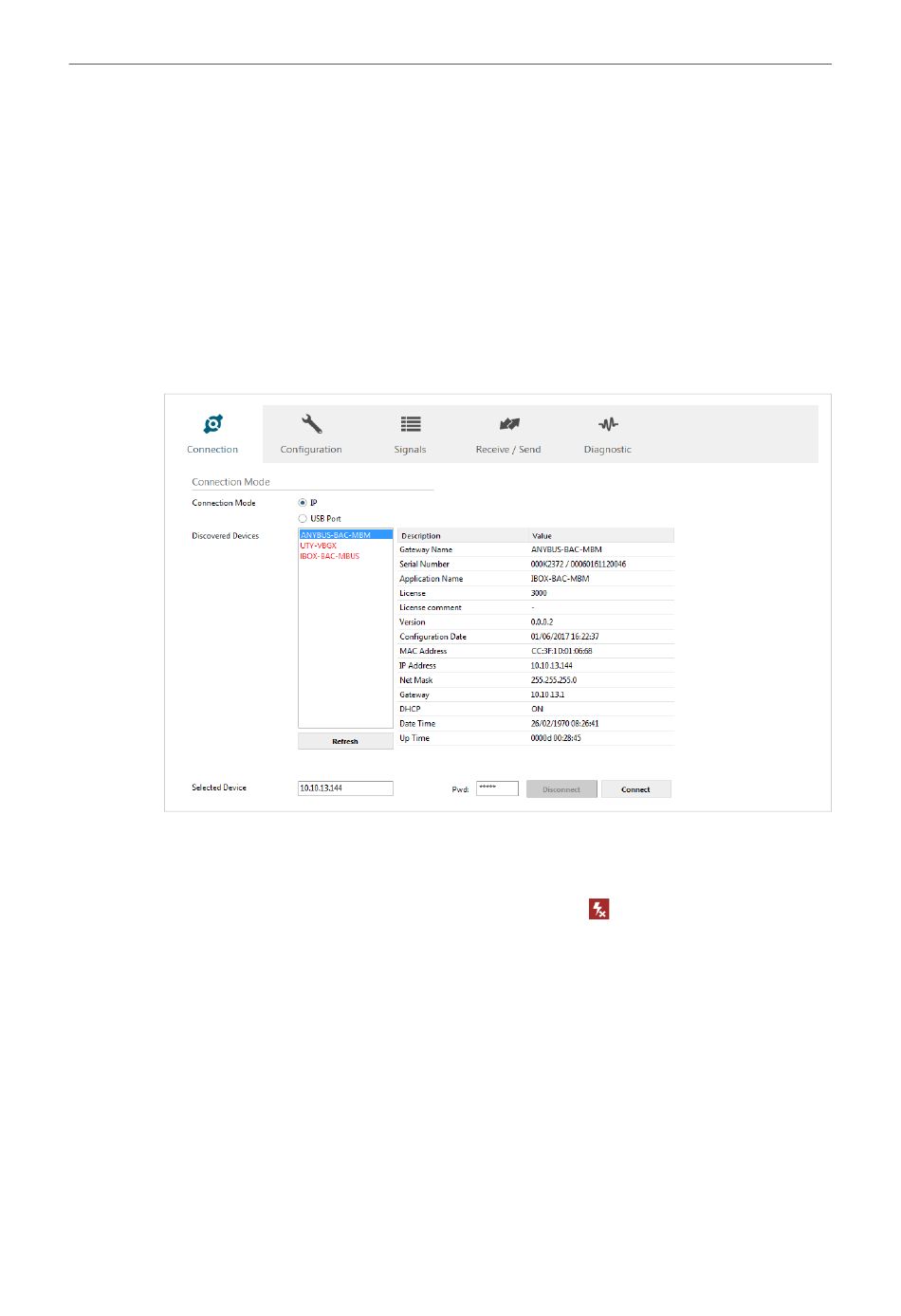

Fig. 6 IP connection
The software will scan the local Ethernet network for devices that match the current
configuration. Compatible devices will be listed in black, incompatible devices in red.
Select the gateway and click on the Connect button or on the
connection is successful the footer bar will change color and indicate that the gateway is
connected.
If the gateway does not appear in the list:
► Check the network connections on the gateway and the computer.
► Check that the gateway is powered on.
Check that the firewall settings allow communication with the gateway. Contact your
►
network administrator if necessary.
