Installation
LED Indicators

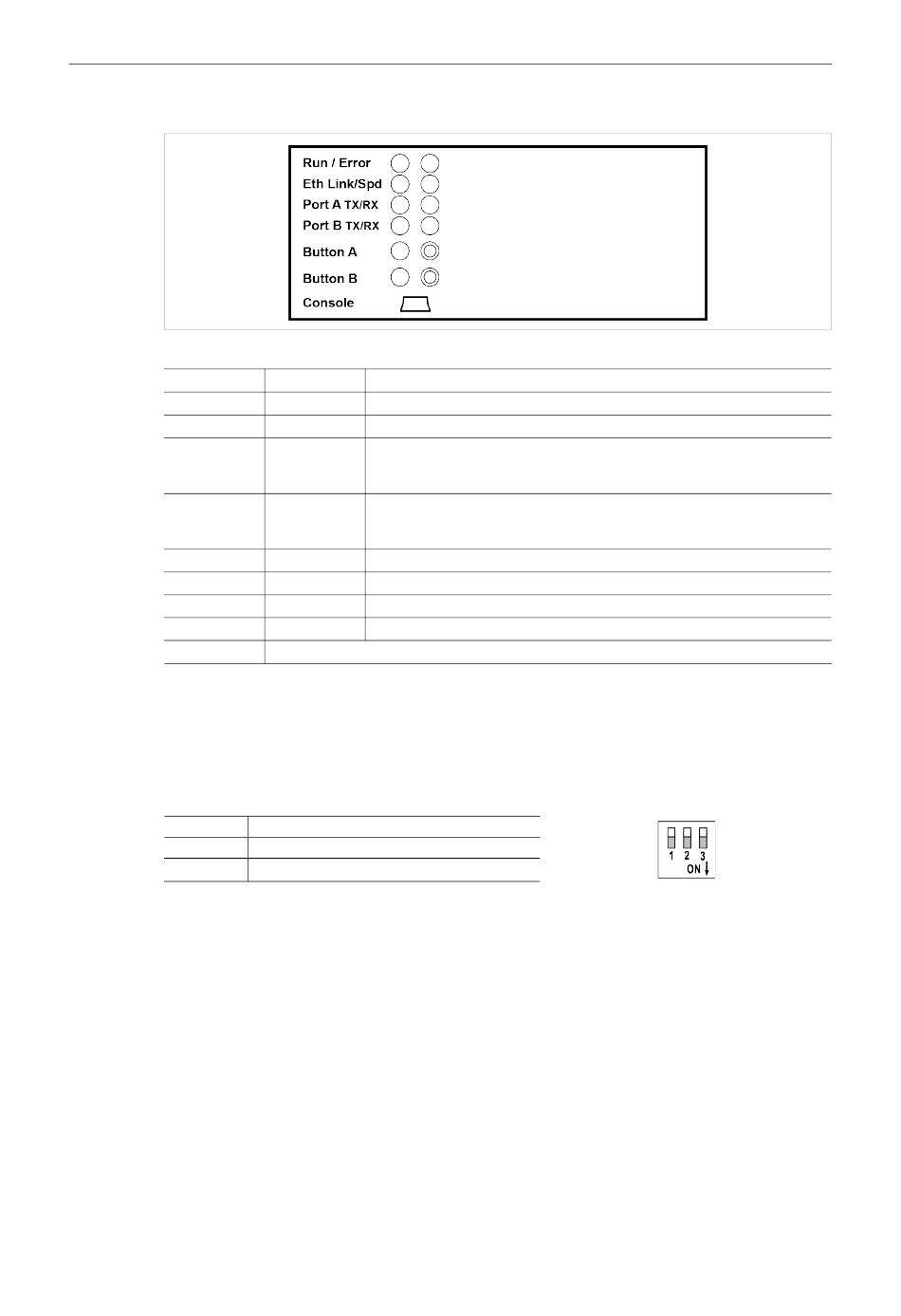

Fig. 2 Overview
LED
Run
Error
Eth Link
Eth Spd
Port A Tx
Port A Rx
Port B Tx
Port B Rx
Button A/B
DIP Switches
DIP switches
SW A is reserved for future use.
SW B toggles internal termination and polarization for Port B.
Switch
1
2, 3
Modbus to KNX Gateway User Manual
Indication Meaning
Green
Normal operation
Red Operating error
Green
100 Mbit/s Ethernet
Yellow
10 Mbit/s Ethernet
Flashing
Ethernet traffic
Green
Full-duplex Ethernet mode
Off Half-duplex Ethernet mode
Flashing Packet collision
Green Transmitting on Port A
Green Receiving on Port A
Green Transmitting on Port B
Green Receiving on Port B
(reserved for future use)
Function
ON = 120 Ω termination enabled
ON = line polarization enabled
11 (32)
