Maxxus 6.2 Installation & Operating Manual page 8

Assembly

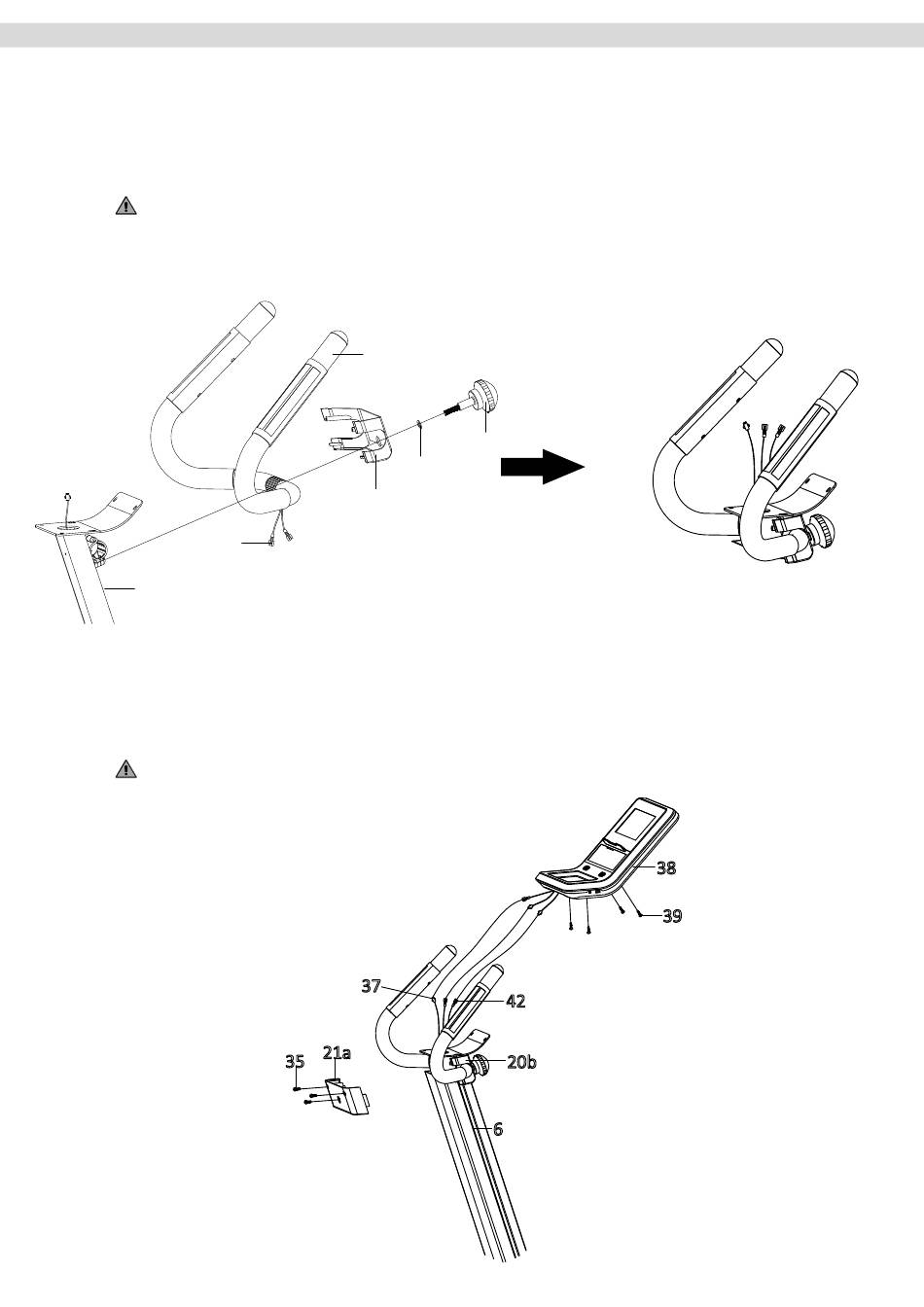

Step 4: Mounting the Handlebars
Gently push the two hand pulse measurement cables (42) coming from the handlebar (7) through the opening in
the handlebar post (6) and pull them back out through the top opening in the handlebar post (6).
Then insert the handlebars (7) into the handlebar mount of the handlebar post (6). Place a washer Ø8 (14) on
the thread of the knob (26) and use this to secure the handlebars (7) to the handlebar post by turning it firmly
clockwise.
ATTENTION: When inserting and securing the handlebar cover (21), be sure not to squeeze or damage the
cables.
42
6
Step 5: Mounting the Cockpit
Connect the two hand pulse measurement cables (42) which protrude from the handlebar post (6) to the corre-
sponding cables that protrude from the cockpit (38). Connect the cockpit cable (37) coming out of the handle-
bar post (6) to the appropriate cable from the cockpit (38). Now fasten the cockpit to the cockpit holder on the
handlebar post (38) with four pan head screws M5x10 (39).
ATTENTION: When installing and attaching the cockpit (38), make sure that you do not squeeze or damage
the cables.
7
14
21b
37
21a
35
8
26
42
20b
6
38
39
