Assembly

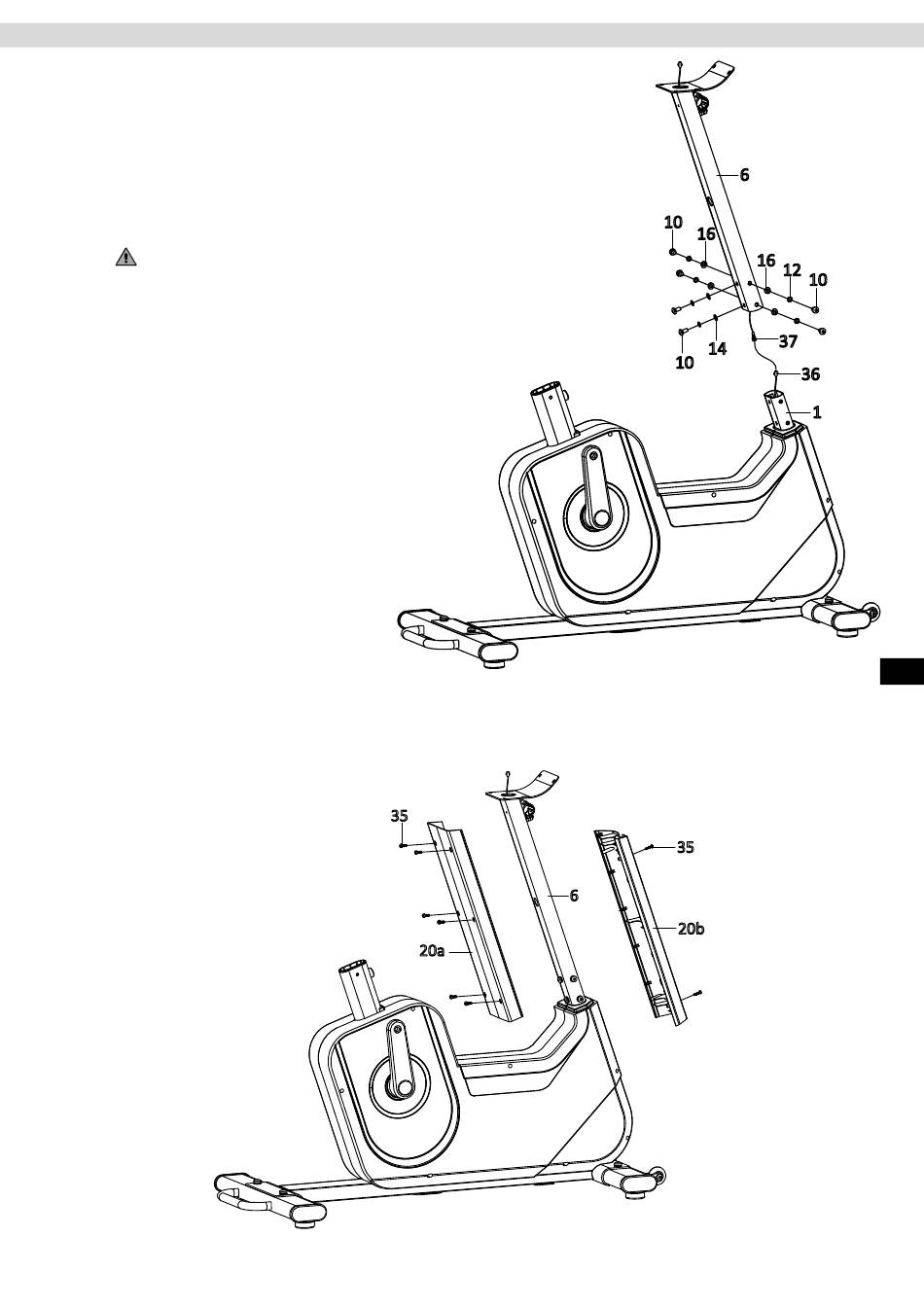

Step 2: Assemble the Handlebar post
Connect the cable (36) protruding from the handlebar mount of the base
frame to the cable (37) coming out of the lower opening of the handlebar post
(6).
Insert the handlebar post (6) onto the front mount on the base frame (1).
6
Secure this right and left with two Allen bolts M8x16 (10), two spring washers
Ø8 (12) and two curved washers Ø8xØ20 (16.) Secure the handlebar post
(6) from the back with two Allen bolts M8x16 (10), two spring washers Ø8
10
(12) and two Washers Ø8 (14).
16
16
ATTENTION:
12
10
Be careful that you do not crush or damage the cables when inserting and
securing the handlebar post (6).
37
14
10
36
1
ENG
Step 3: Assemble the Handlebar Covers
Install the front and rear handlebar covers (20a-front / 20b-rear) on the handlebar post. Secure the front cover
(20a) with six self-tapping screws (35) and the rear cover (20b) with two.
35
35
6
20b
20a
7
