QSG166: WF200 Wi-Fi Development Kit Quick Start Guide
Getting Started with STM32 MCU, with FreeRTOS, and LwIP
2.2 Hardware Setup
Mount the WF200 expansion board on top on the NUCLEO board using the hardware interposer as shown on the figure below. Make
sure the power switch is on the "on Board LDO" position and the bus switch on the "SPI" one.

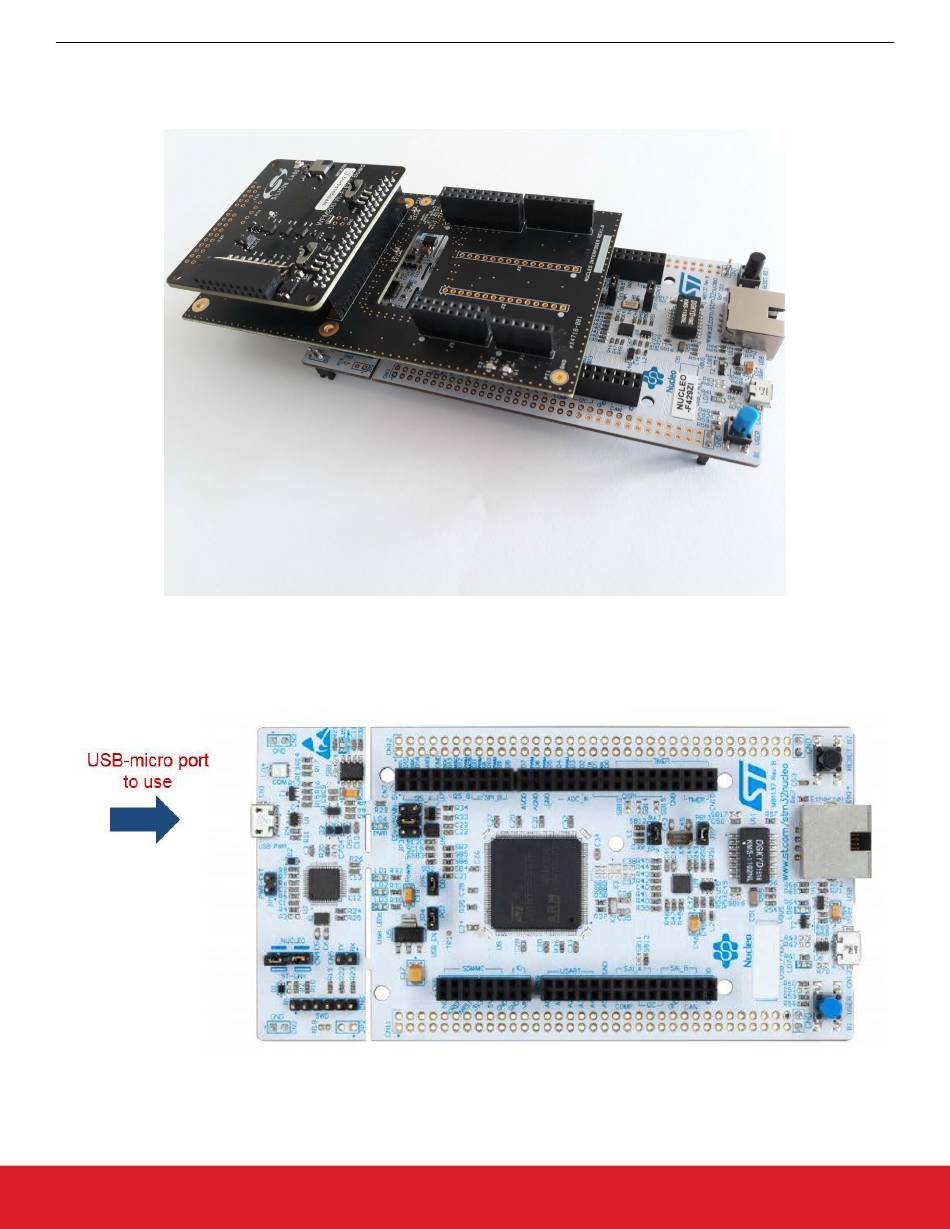

Figure 2.1. WF200 Expansion Board Mounted on a NUCLEO Board
Connect the NUCLEO board to your PC with the micro-USB cable. Make sure to connect your PC to the correct end as shown
below. The NUCLEO-144 has two different USB-micro ports. If detected correctly, it should appear as USB storage with the name
"NODE_F429ZI".
Figure 2.2. NUCLEO-144 Board
silabs.com | Building a more connected world.
Rev. 0.4 | 7
