2.4 Using the Demo

1. In the terminal window, you should see the text below, where xxx.xxx.xxx.xxx is replaced with the STM32 IP address
WF200 init successful
Connected
IP address: xxx.xxx.xxx.xxx
2. You can now use the webserver or the Iperf TCP server embedded in the STM32.
3. In a web browser, enter the displayed IP address. You should see the webpage below.
Note: The webpage can be used to drive the two LEDs onboard the NUCLEO board.
4. The setup supports also Iperf TCP test. Use a PC with Iperf installed as a client to start an Iperf test with the command "iperf -c
xxx.xxx.xxx.xxx" (xxx.xxx.xxx.xxx being the address displayed by the terminal at boot). You should see a result like the one dis-
played on the Figure below. The test takes 10 seconds by default.
silabs.com | Building a more connected world.
Getting Started with STM32 MCU, with FreeRTOS, and LwIP

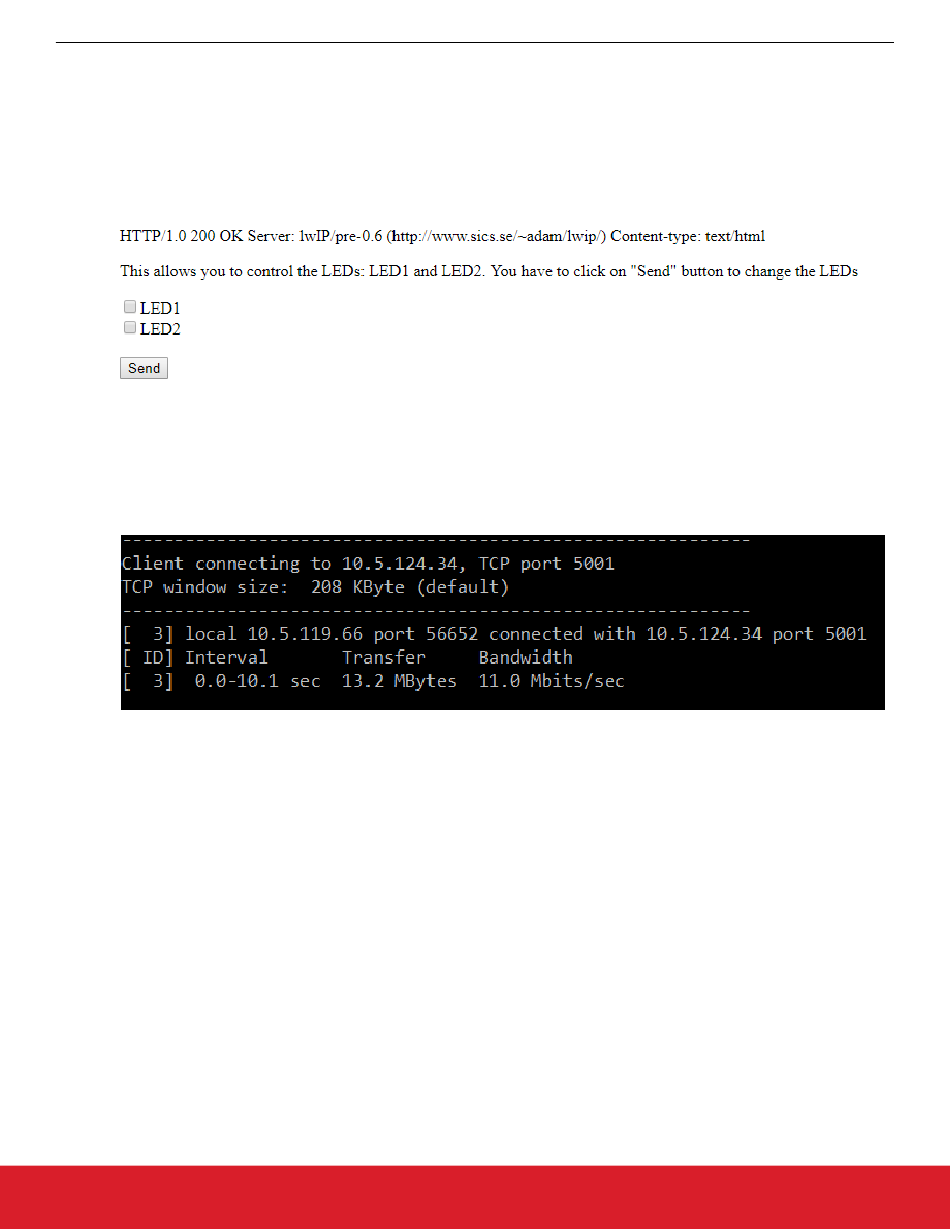

Figure 2.7. Webpage Hosted by the STM32
Figure 2.8. Iperf TCP Test Results
