C8051F912-DK
3.7. Keil µVision2 and µVision3 Silicon Laboratories Drivers
As an alternative to the Silicon Laboratories IDE, the µVision debug driver allows the Keil µVision2 and µVision3
IDEs to communicate with Silicon Laboratories' on-chip debug logic. In-system Flash memory programming
integrated into the driver allows for rapid updating of target code. The µVision2 and µVision3 IDEs can be used to
start and stop program execution, set breakpoints, check variables, inspect and modify memory contents, and
single-step through programs running on the actual target hardware. For more information, refer to the µVision
driver documentation. The documentation and software are available on the kit CD and from the downloads
webpage: www.silabs.com/mcudownloads.

4. Hardware Setup using a USB Debug Adapter

The target board is connected to a PC running the Silicon Laboratories IDE via the USB Debug Adapter as shown
in Figure 6.
1. Connect the USB Debug Adapter to the DEBUG connector on the target board with the 10-pin ribbon cable.
2. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.
3. Verify that a shorting block is installed on J17 and that SW5 is in the ON position.
4. Connect the other end of the USB cable to a USB Port on the PC.
5. Connect the ac/dc power adapter to power jack P2 on the target board (Optional).
Notes:
 Use the Reset button in the IDE to reset the target when connected using a USB Debug Adapter.
 Remove power from the target board and the USB Debug Adapter before connecting or disconnecting the
ribbon cable from the target board. Connecting or disconnecting the cable when the devices have power can
damage the device and/or the USB Debug Adapter.
R15
J16
J15
TOUCH SENSE SWITCH
J6 VDD/DC+
H1
8
Downloaded from Elcodis.com electronic components distributor
Target Board
P1.6 P0.2 P0.3
P1.5
USB POWER
TOUCH SENSE SWITCH
P2.0 P2.1
CP
2103
U3
J4
SILICON LABS
www.silabs.com
J8 J12
+1VD
U1 F912
J11
COIN_CELL
VBAT
AAA_BAT
J7 J13
WALL_PWR
J3 J14 +3VD
RESET
IMEASURE
`
J2
J5
J17
H2
VBAT
OFF
ON
J1
SW5

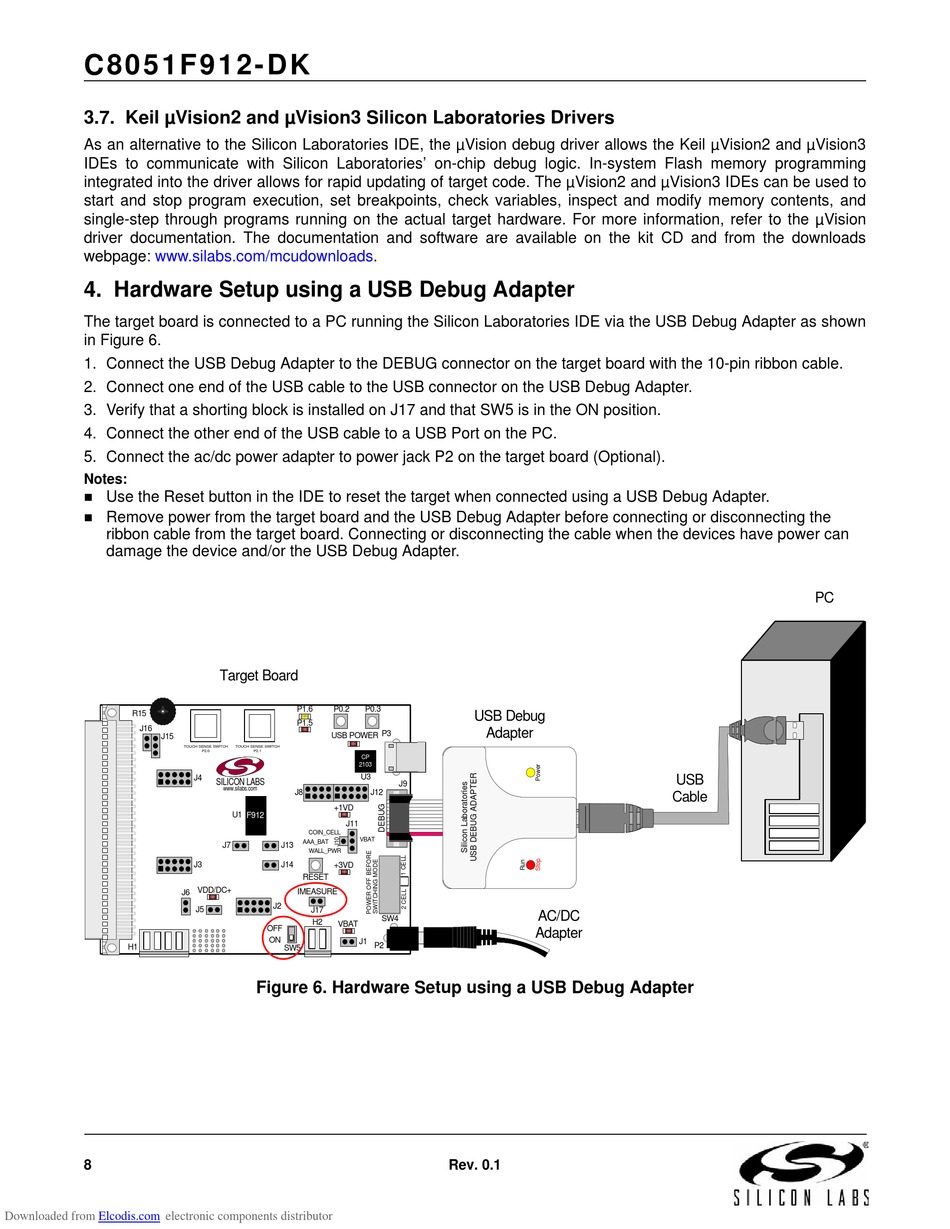

Figure 6. Hardware Setup using a USB Debug Adapter
USB Debug
Adapter
P3
J9
AC/DC
SW4
Adapter
P2
Rev. 0.1
PC
USB
Cable
