Silicon Laboratories WF200 Quick Start Manual page 11

3. In the project explorer, you will find "lwip_freertos.h" under Application\User.
4. In "lwip_freertos.h", change the WLAN_SSID, WLAN_PASSKEY, and WLAN_SECURITY defines to the values of the access point
you want to use.
5. Open Tera Term and connect to the STLink Virtual COM port of the NUCLEO board. In the "Setup\Serial Port" panel, select
115200 for the speed.
6. Press F11 to build and then run the debugger
7. Once the STM32 has been flashed, and the debugger reaches the beginning of
silabs.com | Building a more connected world.
Getting Started with STM32 MCU, with FreeRTOS, and LwIP

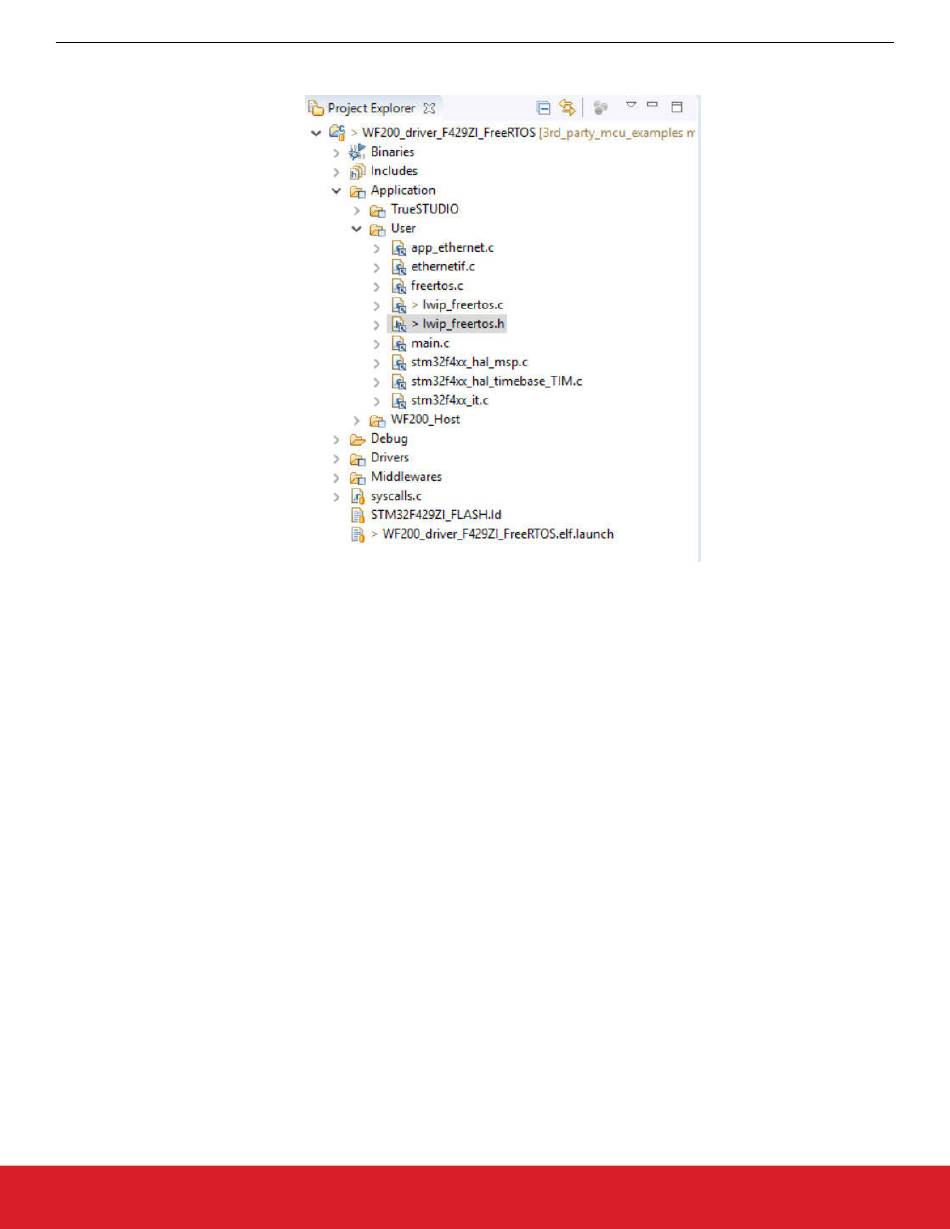

Figure 2.6. TrueSTUDIO Project Explorer
QSG166: WF200 Wi-Fi Development Kit Quick Start Guide
, press F8 to run the demo
main()
Rev. 0.4 | 11
