5.4.1 Start and self test

Starting the plotter takes a few seconds, during which time various checks are performed to supply information,
such as the plotter ID, current date, version of Firmware, movement of the printer bridge, paper advance, etc. Below,

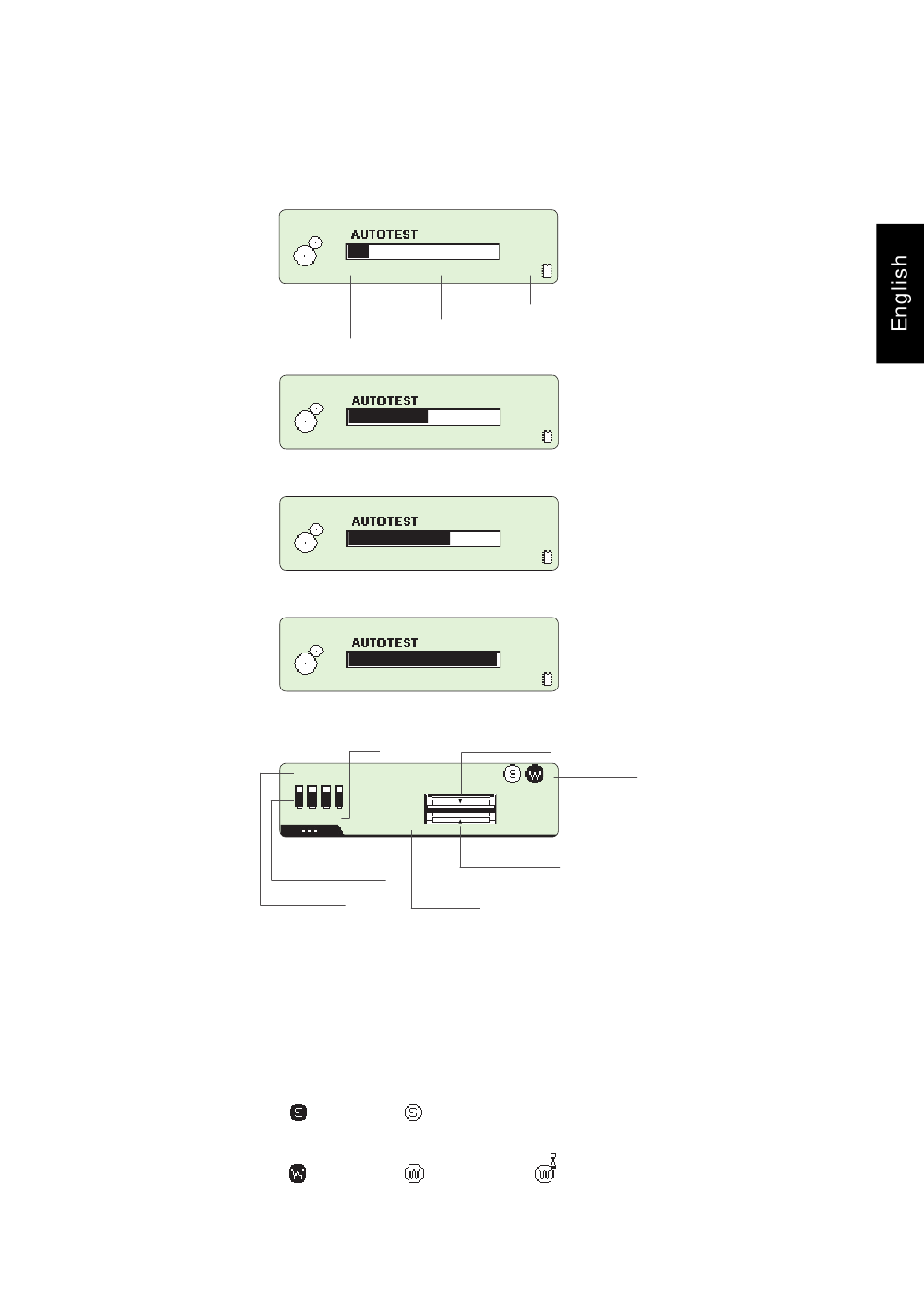

are diagrams showing various examples of the screen display when starting a plotter with four print heads:
The final display screen shows the number of print heads detected, the current time, if the plotter is connected to a
computer through the USB port or Ethernet, if it is necessary to remove the paper from the paper take-up bar, and
if the front cover is open. It also shows some icons for the Warranty, Service Saver, and Finance options. The color
(black (K), cyan (C), yellow (Y), blue (B), red (R), white (W), green (G), and magenta (M)) of these icons indicates
the state of each option. For Finance, the color varies depending on the financing state of the machine.
GERBERplotter MP Series User Manual
LB5Y9 MP2204
Plotter model.
Unique plotter
LB5Y9 MP2204
LB5Y9 MP2204
LB5Y9 MP2204
Color.
19:49
K K K K
Number of print heads
(x: not found).
Time (hh-mm).
Main display.
Service Saver Service Saver not enabled
Warranty OK Warranty not OK
5.5
Firmware version.
5.5
5.5
5.5
Remove paper.
Extra options.
Front cover open.
Warranty grace period
81
