11

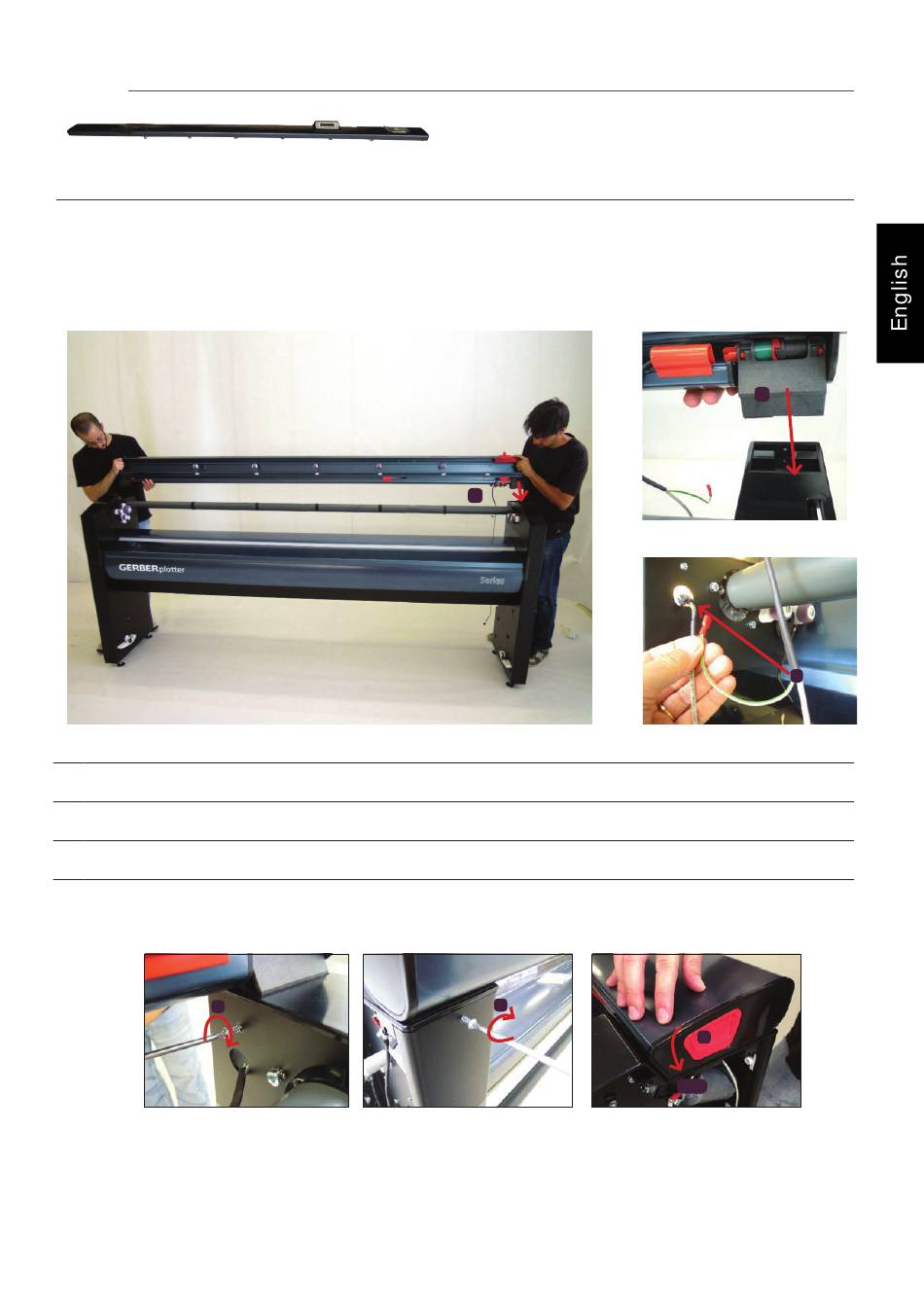

Top cover
CN201 + CN348 (Bag 8)
This cover contains five wheels that are mounted to permit some freedom of movement. Keep the wheels aligned
with the paper, so the paper advances uniformly and is free from excess tension.
Place CN201 above the traction bar.
1
Pass the cables of CN201 through the right-side panel (CN227).
2
Torx T20 + CN348 (Bag 8): Install the cover using two screws for each side.
3
Close the cover.
4
3a
GERBERplotter MP Series User Manual
1
3b
Step 11 of 17
1
2
4
CLICK
23
