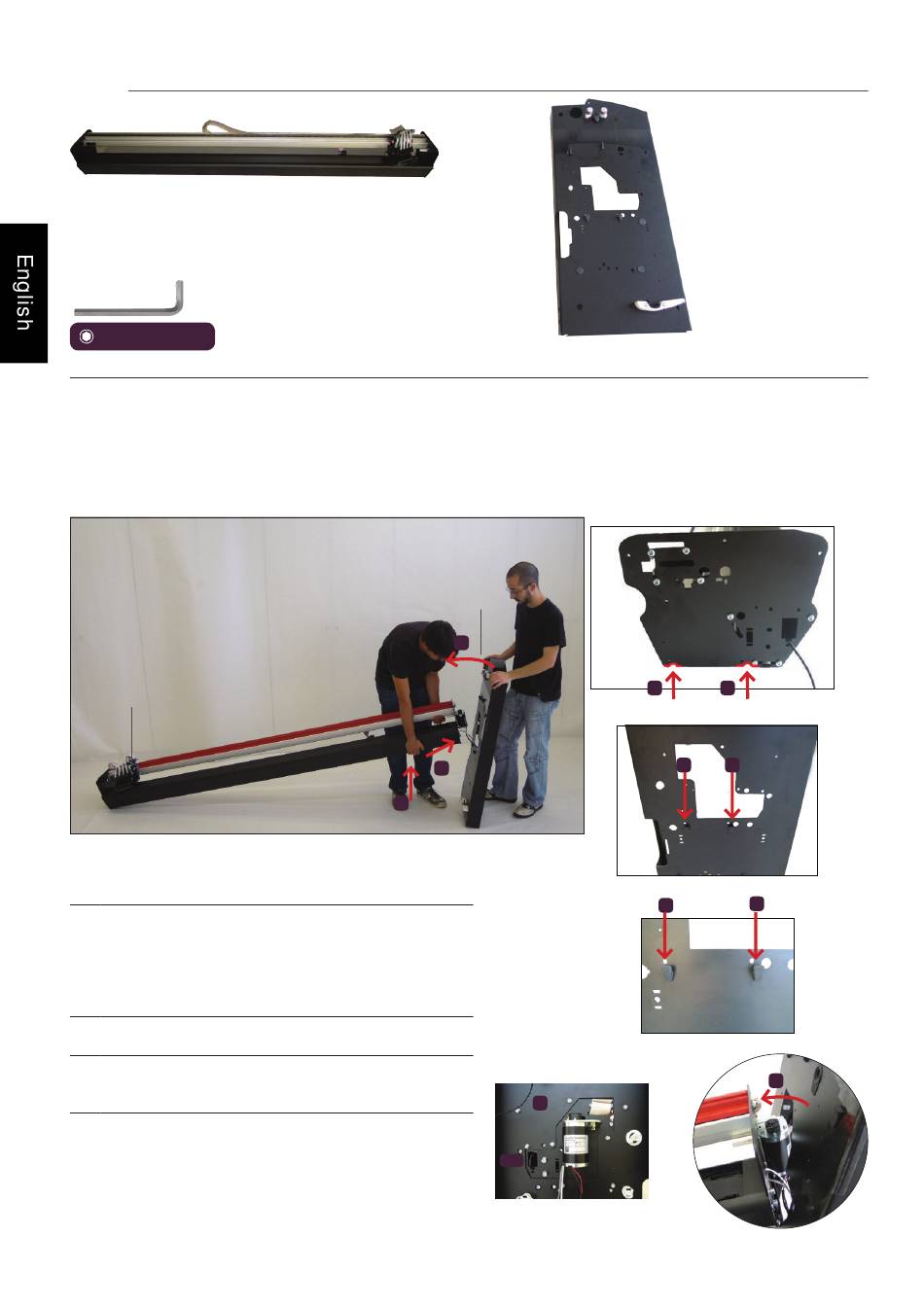

Printer bridge / Right-side panel
CN231
No.4 Allen key
Align the bridge (CN231) with the side panel (227) using the CN052
(Bag 1). The bridge is the base on which the paper is printed.
Raise the right side of the bridge CN231.
1
Avoid damaging the encoder strip.
a) Insert all four cables from CN231 to CN227 through
2
the motor hole, except the GCB cable, which has its
own hole.
b) Position the mounting notches in CN231 over the
existing mounting bolts on CN227.
Tilt CN227 until it is perpendicular to CN231.
3
Install eight bolts and washers using the No. 4 Allen
4
key and Bag 1.
14
CN227 + CN052 (Bag 1)
3
2a
1
4
GCB
2b 2b
2b 2b
2b
2b
GERBERplotter MP Series User Manual
Step 2 of 17
