Gerber Technology GERBERplotter MP Series User Manual page 30

8

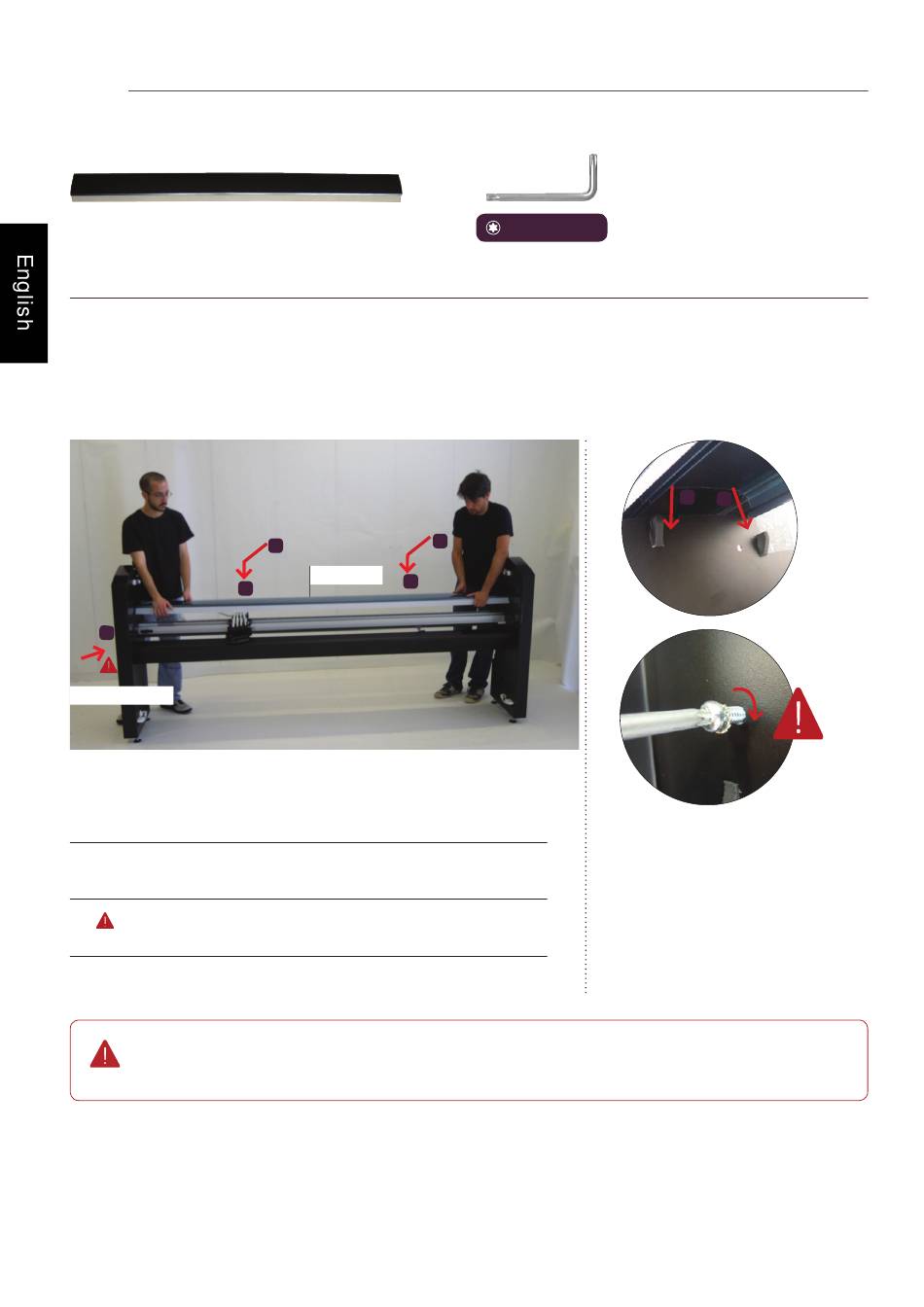

Rear cover
CN211 + CN107 (Bag 5)
Add the rear cover for the printer bridge (CN013) to the assembly.
Secure the bridge using a Torx T30 and a single bolt and washer
(CN017, Bag 5).
2
3
CN107 (Bag 5)
1 a) Position cover CN211 at the rear of the assembly.
b) Fit piece CN211 horizontally between the two side panels and
below the inverter.
2 Lower CN211 horizontally until it fits into the outer edge of
CN231.
Torx T30 + CN107 (Bag 5): Fix bolt and washer to the left-side
3
panel.
The bolt used in the previous step is very important, because it discharges static electricity pro-
duced by the movement and friction of the paper.
20
1
1
CN211
2
Torx T30
2
GERBERplotter MP Series User Manual
Step 8 of 17
2
3
