4 Paper roll center

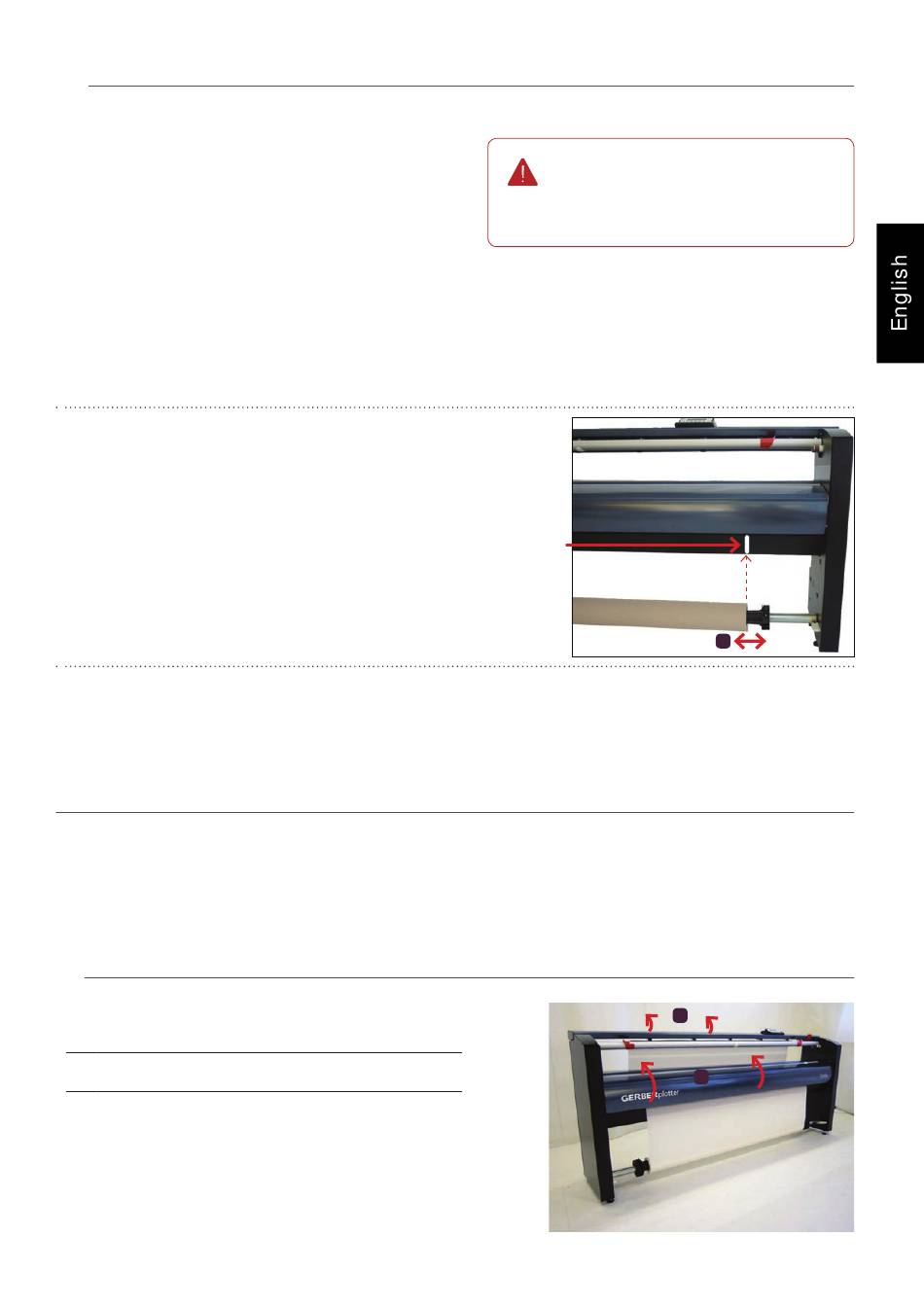

There is a vertical mark on the lower right side of the
printer bridge, which indicates the start point for the
print head. To correctly load the paper roll onto the paper
support bar, the paper must be aligned with this vertical
mark.
To do so, adjust the position of the right cone on the
paper support bar.
Allen key nº 6: Loosen the left and right cones on the
1
paper support bar.
Slide the paper roll and both cones along the paper
2
support bar until they are properly aligned with the
vertical mark.
Position the paper roll so that the right edge of the
paper is in line with the vertical mark on the printer
bridge.
Allen key nº6: Using the Allen key provided, firmly tighten
3
the left and right cones on the paper support bar.

5.2 Paper run

Once the paper roll has been loaded onto the paper support bar
of the plotter, set it up so that you can print on it.
1 Preparation
Open the top cover of the plotter by pushing the red
1
lock button on the right side.
Open the front cover of the printer bridge.
2
GERBERplotter MP Series User Manual
This step is only necessary if the
alignment of the paper roll does not
match with the vertical mark that indi-
cates the start point for the print head.
Print origin indicator.
Step 4 of 4
2
Step 1 of 5
1
2
67
