6.1.8 Information about versions

Click the question mark icon in the options menu to get information about User Manager. Click the icon in the right
corner of the main menu section for Server Manager version information.

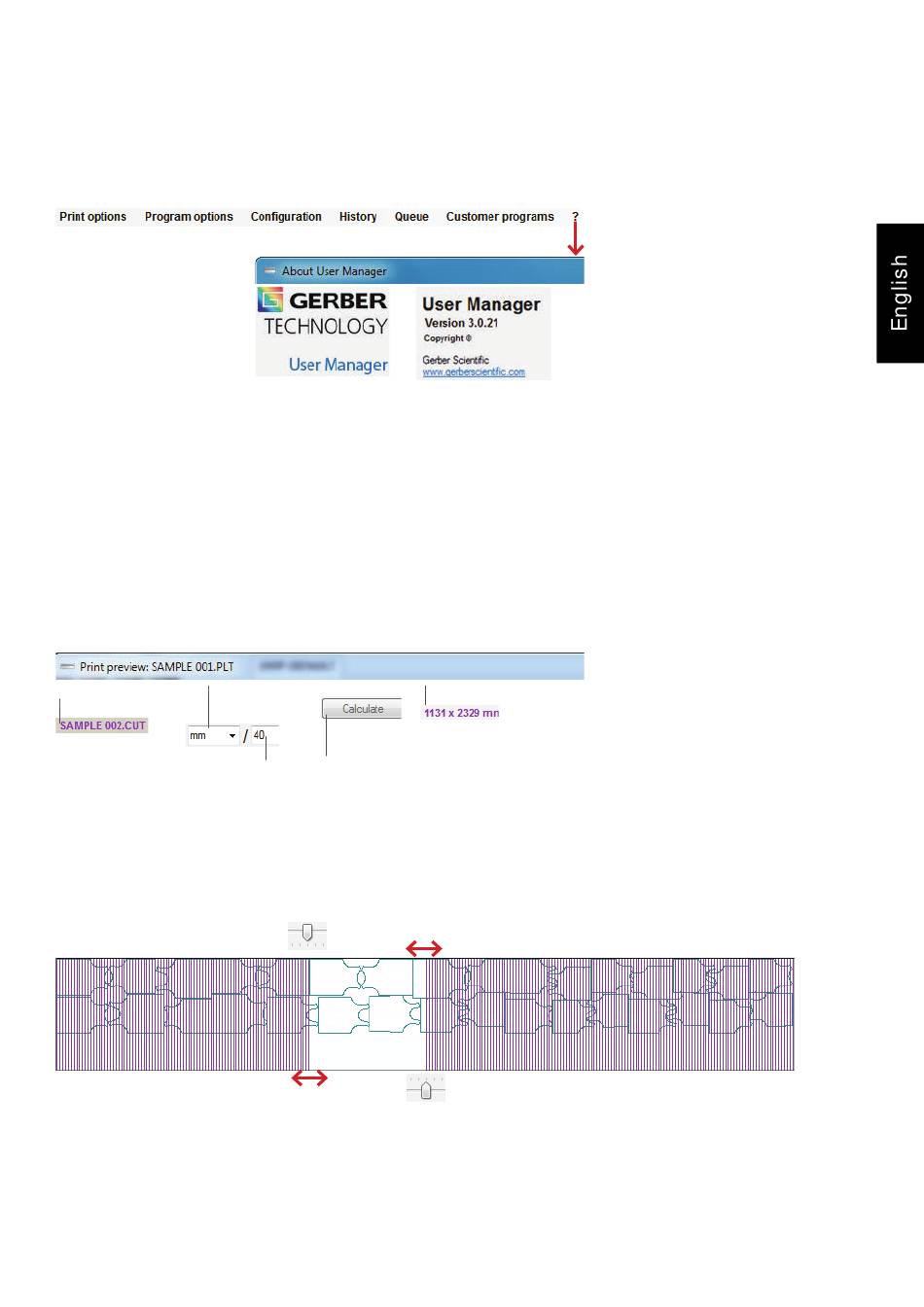

6.1.9 Previewing

Click Print options and select Preview and print or Composition and print to preview the job before sending it to the
job queue. Additionally, you can change the working units and the divisor used. Previews are created from the Print
preview dialog box, which provides the name of the file and the final print size of the rasterized file.
Click Calculate to adjust the final print size.
Units.
Previewed file.
Denominator.
The denominator is the quantity of points by mm or inch.
If you use inch / 40, each inch has 40 points.
The dialog box also has controls that limit both sides of the file,. The job sent to the plotter is cut according to these
limits.
Left limiter for file section to be
sent to plotter
GERBERplotter MP Series User Manual
Version of User Manager.
Final size (without cut).
Calculates the size of the job to be sent to the
plotter based on units and denominator.
Right limiter for file section to
be sent to plotter
