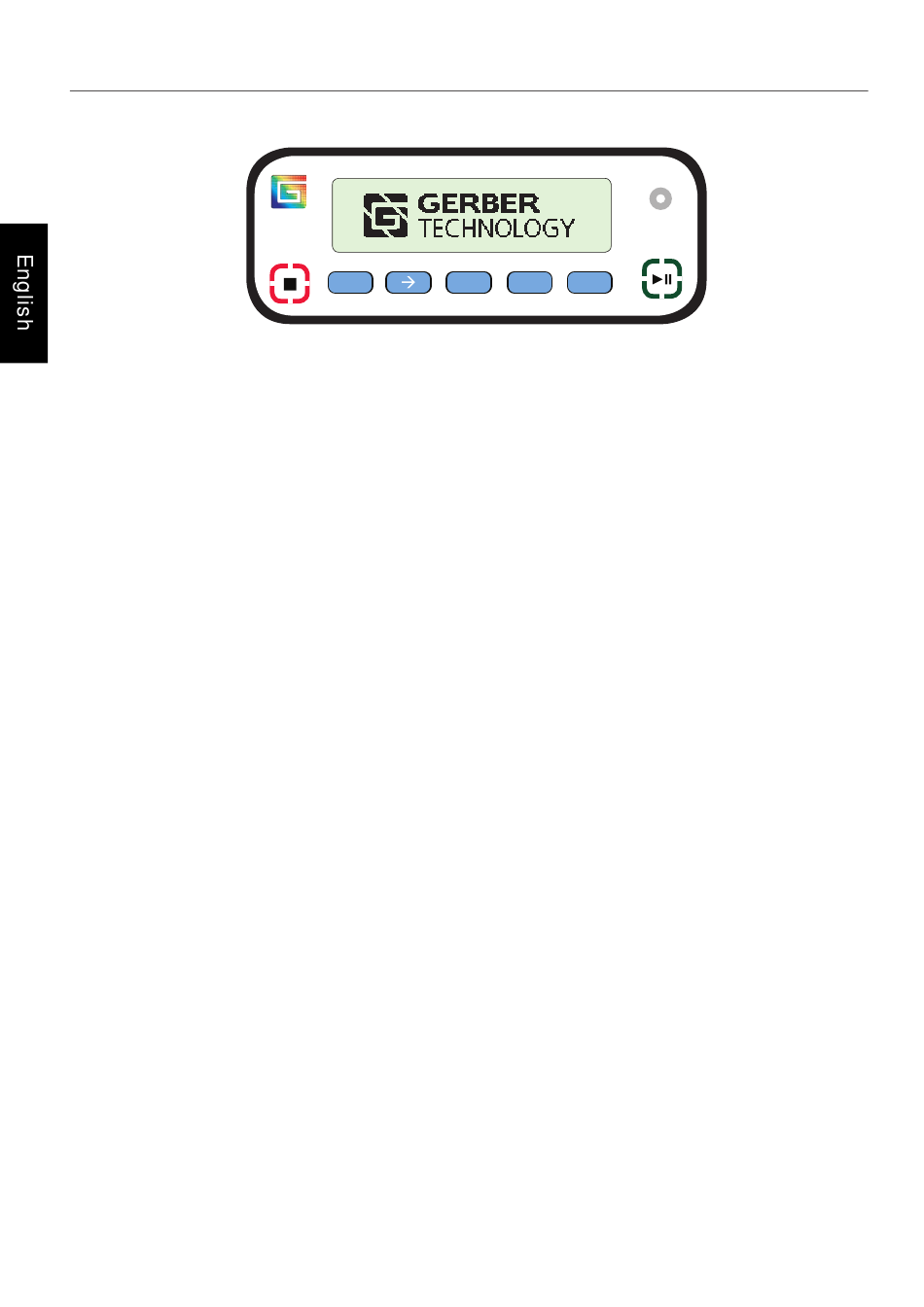

5.4 Display
Below is a summary of the button operation on the display:
Paper
Press the PAPER button once to advance the paper 15 cm (5.90 in). This lets you fasten the paper to
·
the paper take-up bar using the side and center clips.
Press the PAPER button for 2-3 seconds to advance the paper sufficiently to let you cut and remove
the last print job.
P R I N T /
Pauses or resumes the current print job.
·
PAUSE
The plotter resumes printing after a STOP.
If the plotter has been stopped, it resumes printing.
Starts and pauses print jobs and calibration tests.
STOP
Stops printing.
·
Puts the plotter in STOP mode, so the plotter cannot receive new jobs.
MENU
Accesses to the start menu or returns to the previous menu.
·
Scrolls through options.
·
-->
OK
Accesses to the selected option.
·
Confirms changes and exits the current option.
Confirms changes and accesses the next step in a calibration process.
+
Increases the selected value. From the main menu, moves the print head to the left side of the plotter.
·
Reduces the selected value.
·
-
From the main menu, moves the plotter print head to the origin defined during configuration (4.4.5).
80
STOP
MENU
+
-
OK
GERBERplotter MP Series User Manual
PAPER
PRINT
PAUSE
