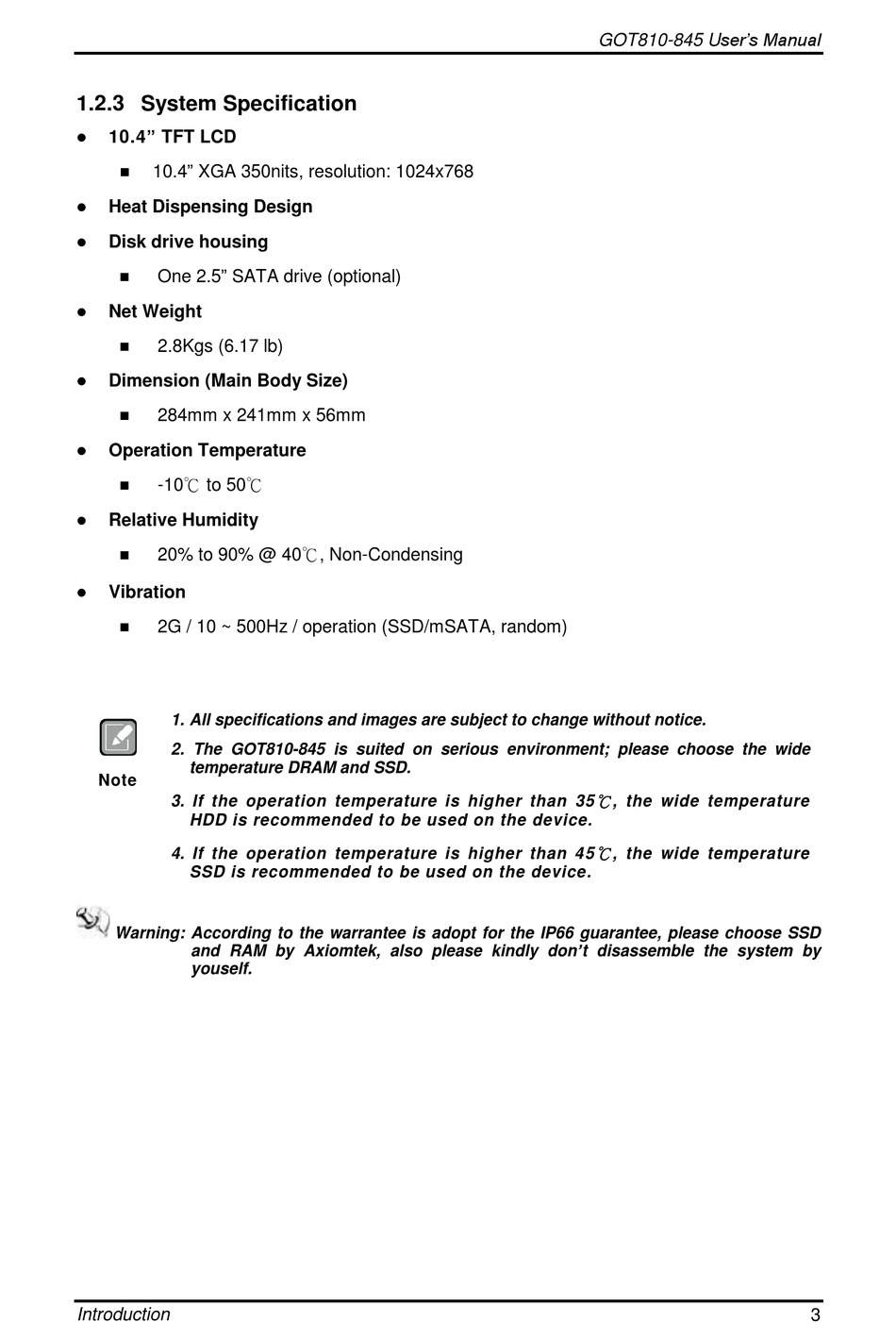

System Specification - AXIOMTEK GOT810 User Manual

1.2.3 System Specification

 10.4" TFT LCD
 10.4" XGA 350nits, resolution: 1024x768
 Heat Dispensing Design
 Disk drive housing
 One 2.5" SATA drive (optional)
 Net Weight
 2.8Kgs (6.17 lb)
 Dimension (Main Body Size)
 284mm x 241mm x 56mm
 Operation Temperature
 -10℃ to 50℃
 Relative Humidity
 20% to 90% @ 40℃, Non-Condensing
 Vibration
 2G / 10 ~ 500Hz / operation (SSD/mSATA, random)
1. All specifications and images are subject to change without notice.
2. The GOT810-845 is suited on serious environment; please choose the wide
temperature DRAM and SSD.
Note
3. If the operation temperature is higher than 35
HDD is recommended to be used on the device.
4. If the operation temperature is higher than 4 5
SSD is recommended to be used on the device.
Warning: According to the warrantee is adopt for the IP66 guarantee, please choose SSD
and RAM by Axiomtek, also please kindly don't disassemble the system by
youself.
Introduction
GOT810-845 User's Manual
℃
, the wide temperature
℃
, the wide temperature
3
